Document Number:
MAN – FD151CV-QUAD
Revision Date:
05/04/2017
Page 6 of 15
© 2017 FDS Avionics Corp.
All Rights Reserved.
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com

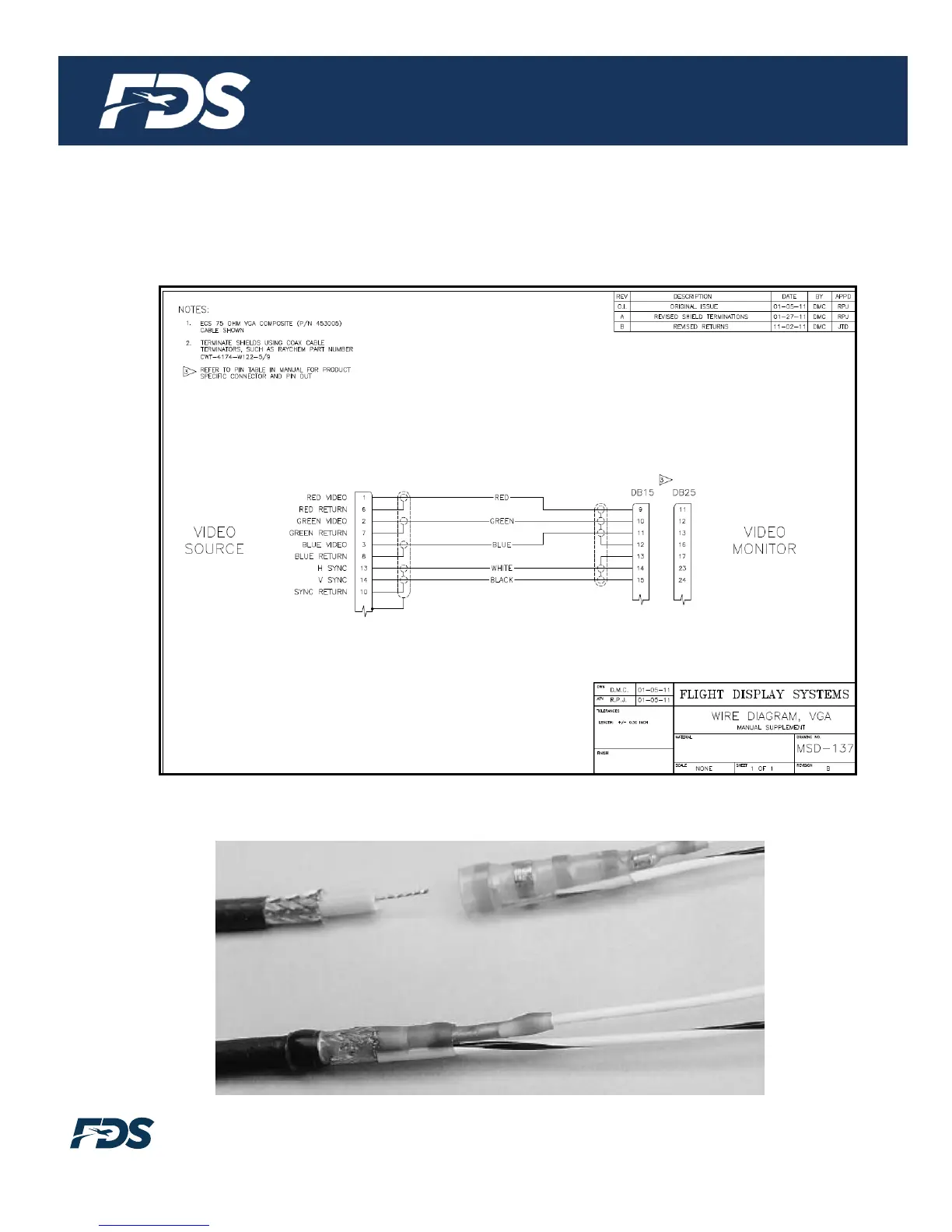

VGA Wiring
Recommended cable for VGA purpose is Carlisle P/N 453005. This is a single shielded
cable containing 5 separate coaxial cables, color-coded to match the functions of the
wires.
We recommend coax cables be terminated using solder sleeve coaxial cable terminators
such as Raychem Part Number CWT-4174-W122-5/9.
