Power/Video

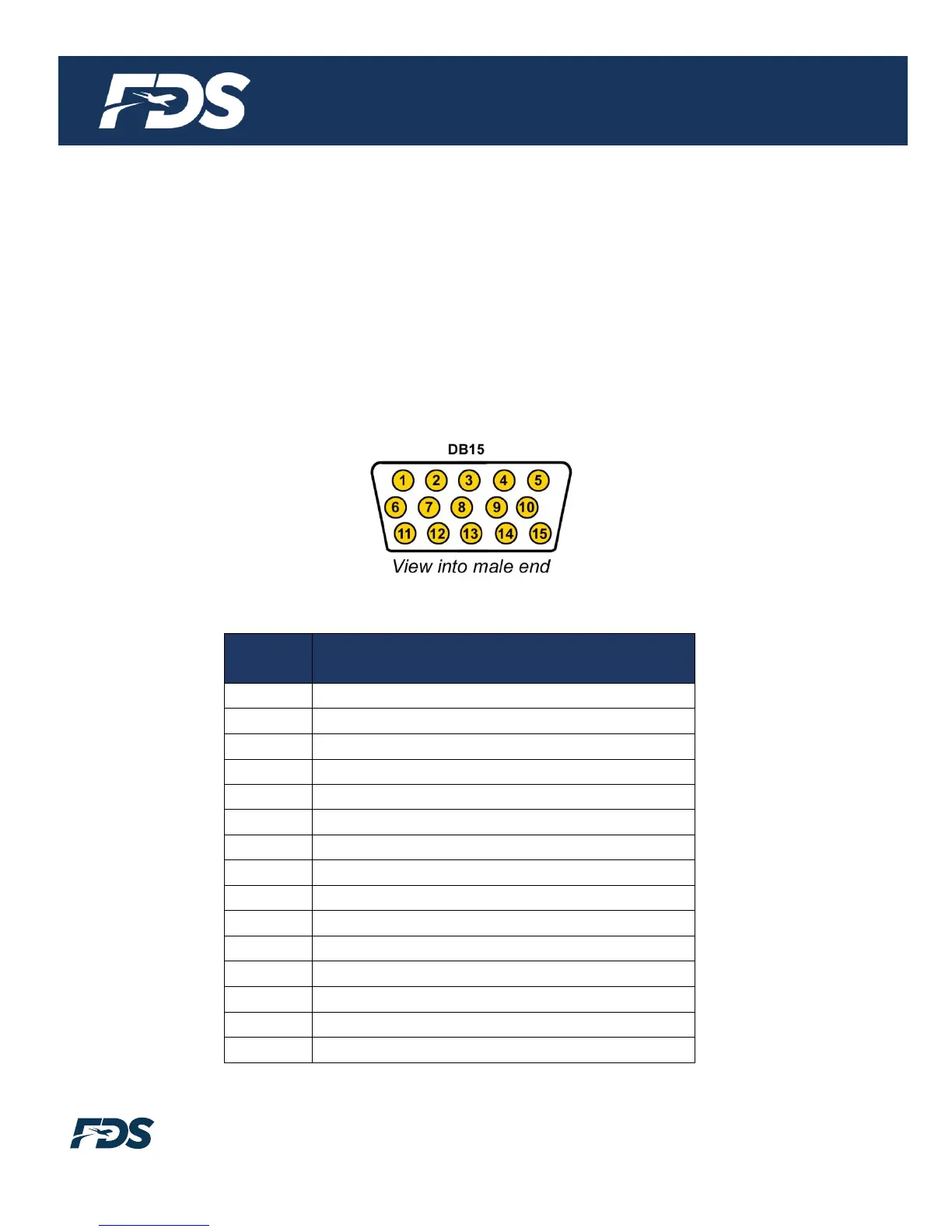

Pin out for P1 (High Density DB-15 Receptacle)
There is one High Density DB-15 on the rear of the display, which connects Power,
Composite Video #1, Composite Video #2 and VGA connections.
Part Numbers for DB-15 connectors, manufactured by Tyco or Amp.
High density, D-sub, 15 contact receptacle (female) P/N 748565-1
HD15F pins P/N M39029/57-354
Pin
Number
Description
1
28VDC Power
2
28VDC Ground
3
Composite Video 1 – Signal
4
Composite Video 1 – Shield
5
Composite Video 2 – Signal
6
Composite Video 2 – Shield
7
N/C
8
N/C
9
Red Video (Pin 1 on Standard VGA)
10
Green Video (Pin 2 on Standard VGA)
11
Blue Video (Pin 3 on Standard VGA)
12
Red Ground (Pin 6 on Standard VGA)
13
Green Ground (Pin 7 on Standard VGA)
14
Horizontal Sync (Pin 13 on Standard VGA)
15
Vertical Sync (Pin 14 on Standard VGA)
