Fein FMT 250 - Disassembling Armature (Part 1)

FMT 250; FMT 250Q; FMT 250QSL
6. Disassembly
C-SC_CSSM
Version 1.0
2016-11-18
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation.
Page 14 of 30
Disassembling armature

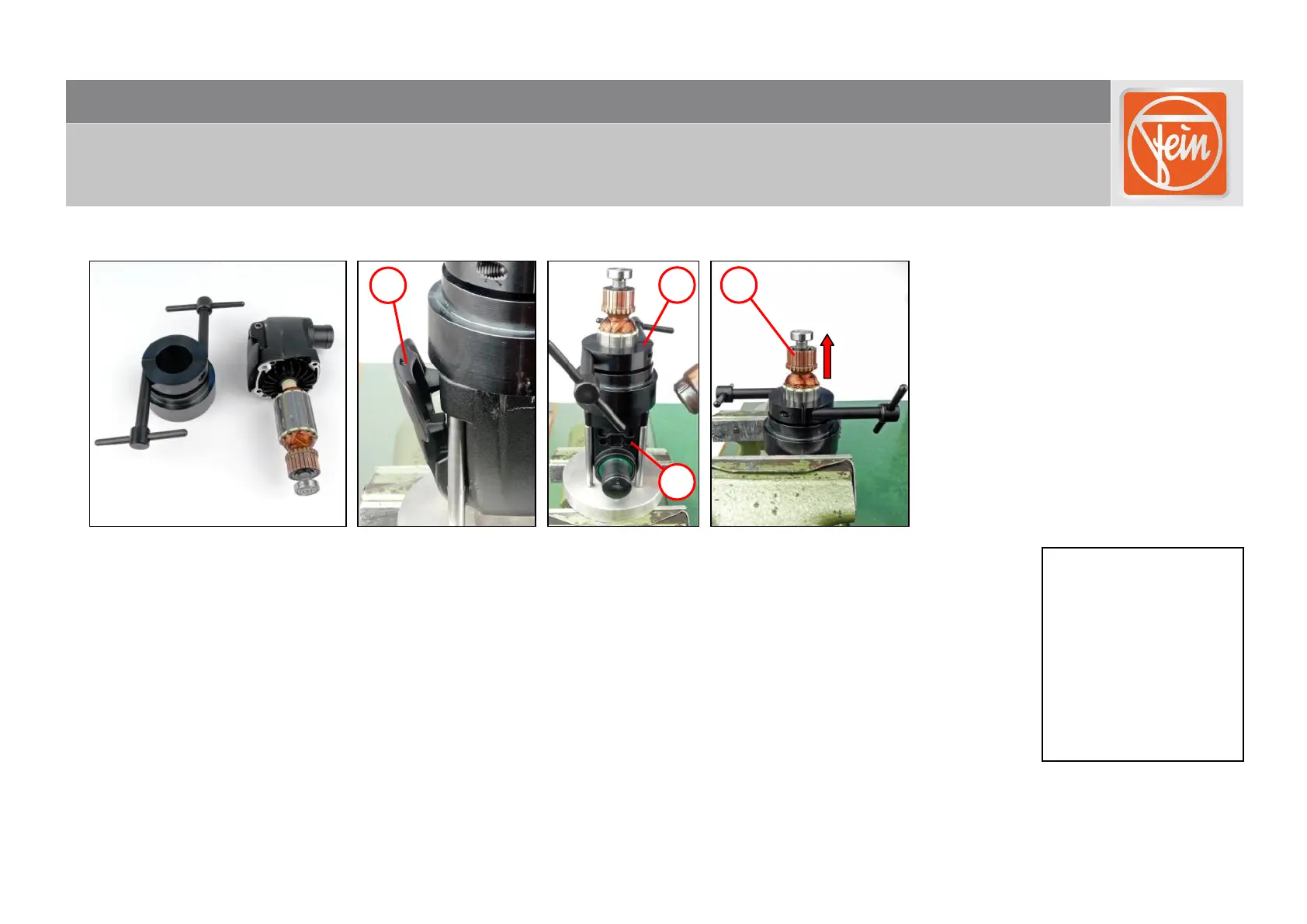

1. Open lever (1).
2. Place extractor tool (2) on armature.
3. Heat tool head (3) with hot air gun [temperature: 600 °C] on right and left sides at an angle of 45 degrees for
15 seconds on each side.
 Warning! Too much heat will cause deformation of the fan blades on the armature.
4. Using extractor tool, pull armature (4) out of tool head.
Tools:
- Extractor tool
- Press-in fixture
- Hot air gun
- Vice
2
1
4
3
