Fein FMT 250 - Disassembling Armature (Part 2)

FMT 250; FMT 250Q; FMT 250QSL
6. Disassembly
C-SC_CSSM
Version 1.0
2016-11-18
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation.
Page 15 of 30

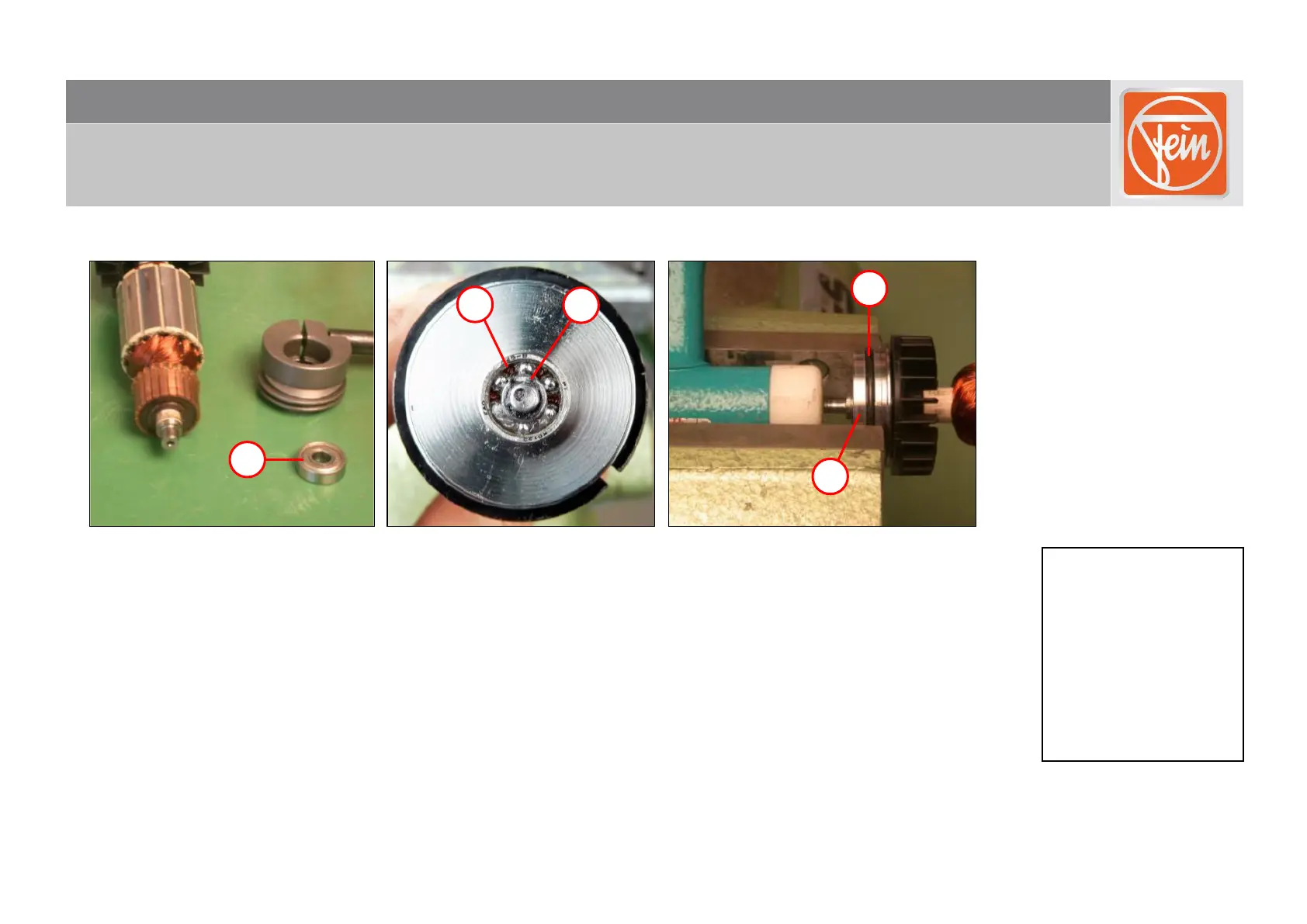

Disassembling armature
1. Pull off grooved ball bearing (1) on collector side.
2. Remove circlip (2).
3. Pull off grooved ball bearing (3).
4. Pull off bush (4).
5. Remove sealing ring (5).
Tools:
- Circlip pliers
- Chuck cone, 16mm,
19mm
- Plastic hammer
2
3
4
5
1
