Fein FMT 250 - Assembling Stator (Part 2)

FMT 250; FMT 250Q; FMT 250QSL
7. Assembly
C-SC_CSSM
Version 1.0
2016-11-18
All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation.
Page 23 of 30

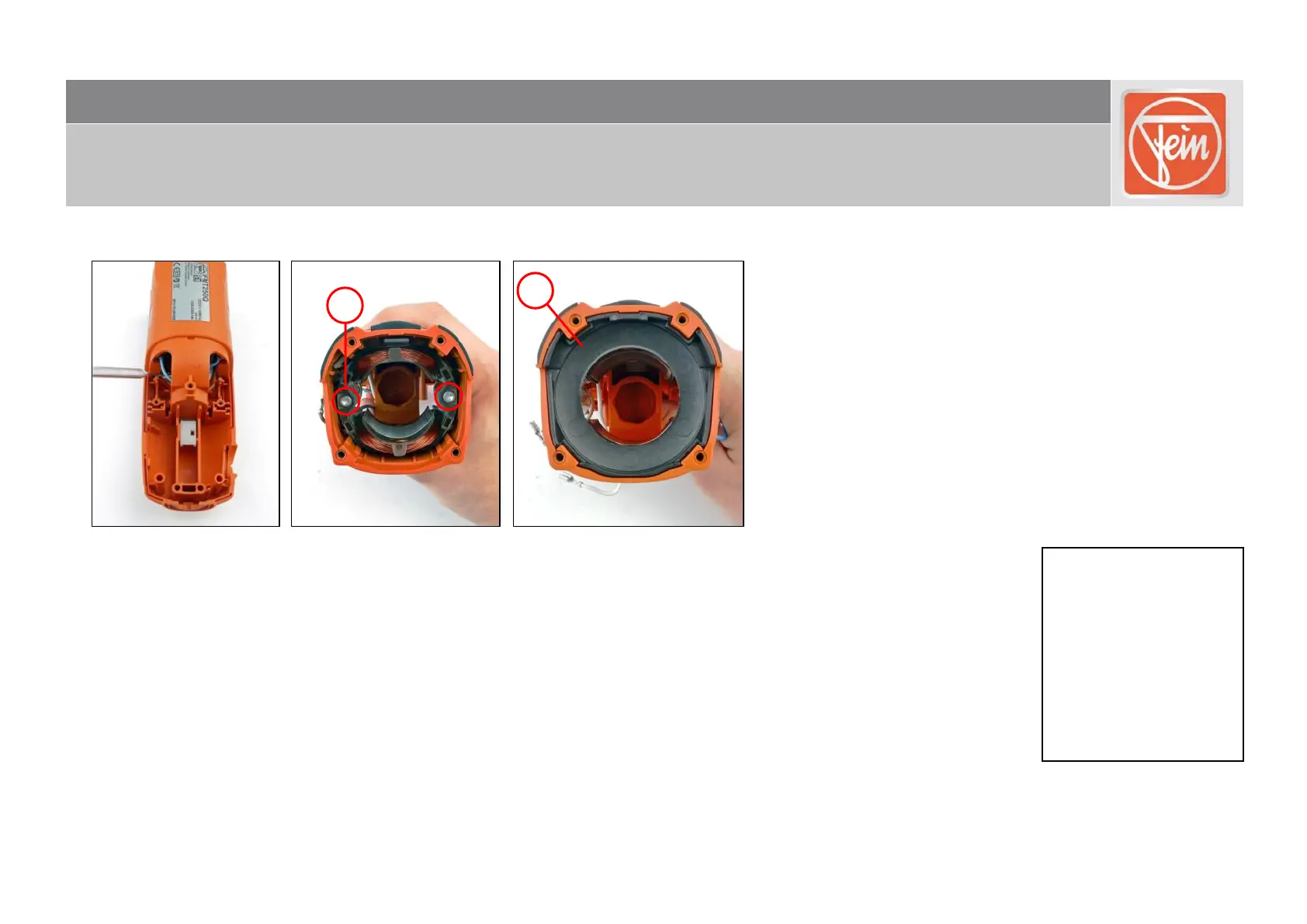

Assembling stator
1. Using hook, pull cables out of stator.
2. Screw in the two screws (1) [1.8 ±0.1Nm].
3. Insert air guide ring (2).
Tools:
- Torx T15
- Assembly aid
1
2
