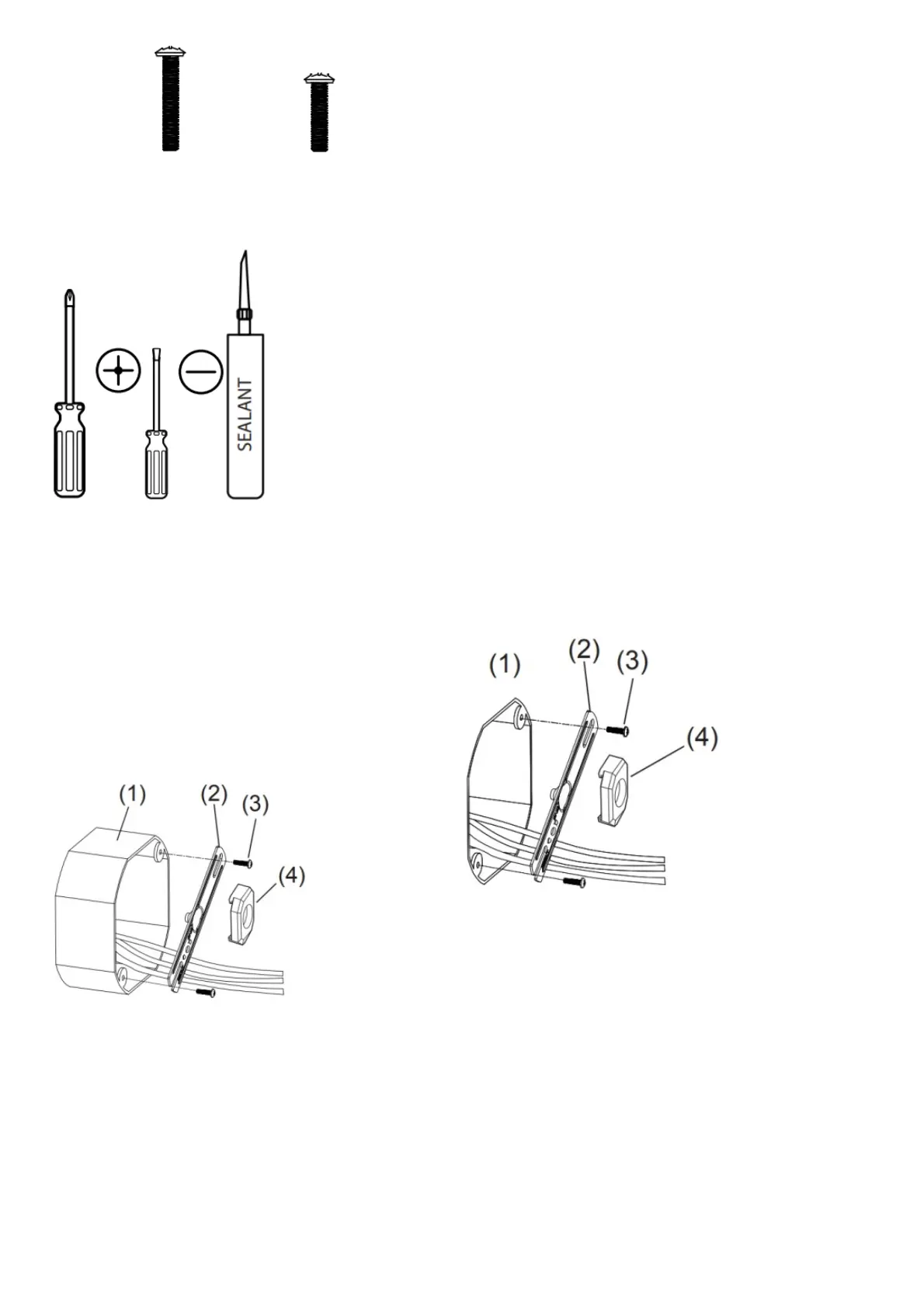

1 Pc Mounting Bar Screw 2 Pc J-Box Screws
TOOLS REQUIRED (NOT INCLUDED)
EXTERNAL J-BOX INSTALLATION FLUSH J-BOX INSTALLATION
1. Turn the main power off at circuit breaker or fuse box. 1. Turn the main power off at circuit breaker or fuse box.
2. Install the mounting bar (2) to an external j-box (1) using j-box
screws (3). If needed, add one of the spacers (4) provided to
eliminate gap between mounting bar and mounting plate.
2. Install the mounting bar (2) to a j-box (1) using j-box screws
(3). If needed, add one of the spacers (4) provided to eliminate
gap between mounting bar and mounting plate.
