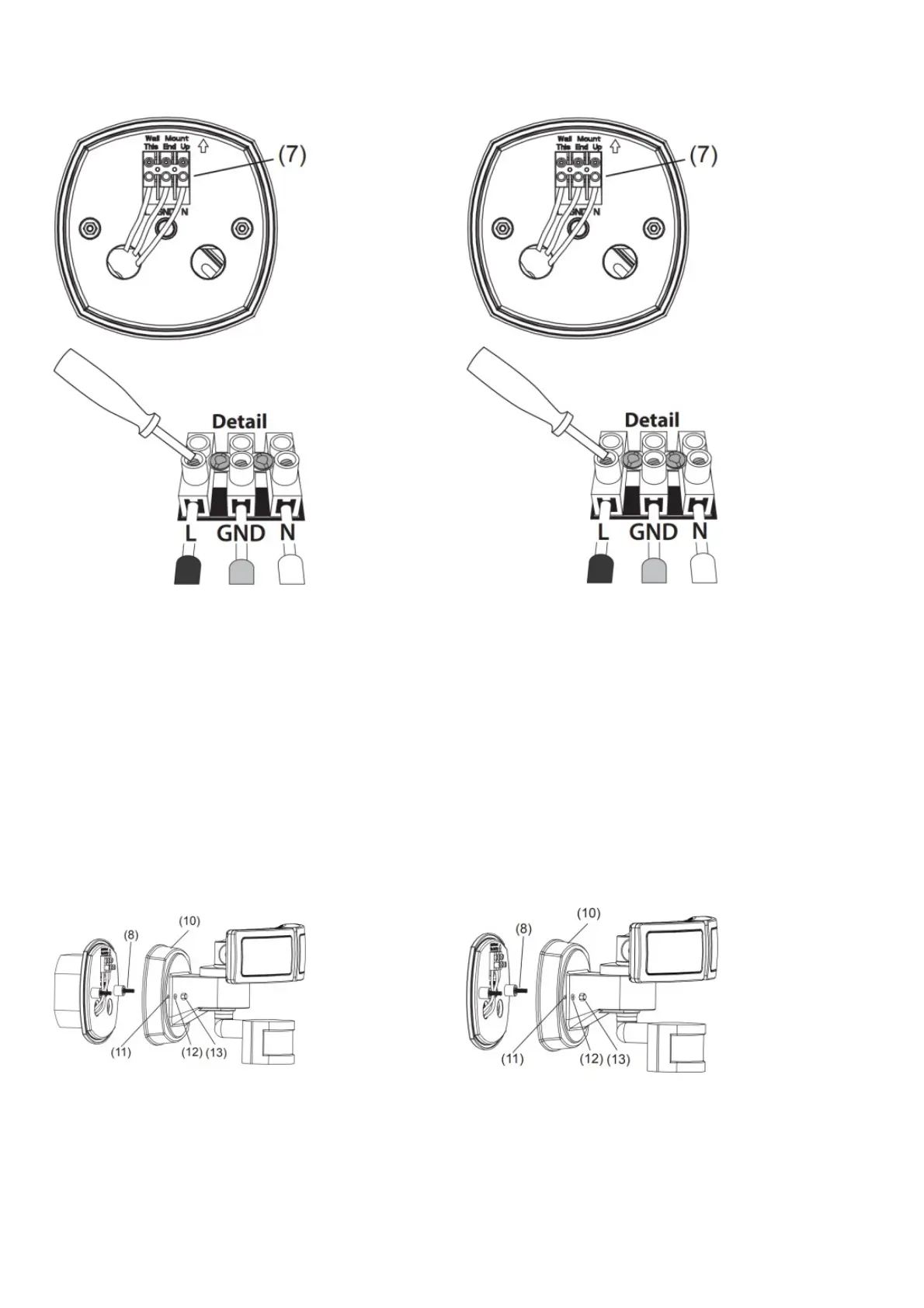

5. Connect the power supply wires directly to the terminal block
(7). Secure the wires to the terminal block by using a small
screwdriver.
Connect: Black wire to “L” input.
Ground wire to “GND” input.
White wire to “N” input.
5. Connect the power supply wires directly to the terminal block
(7). Secure the wires to the terminal block by using a small
screwdriver.
Connect: Black wire to “L” input.
Ground wire to “GND” input.
White wire to “N” input.
6. Position and align the mounting holes (11) on the fixture body
(10) to the mounting plate screws (8). Secure the fixture body to
the mounting plate using rubber washers (12) and decorative
nuts (13).
6. Position and align the mounting holes (11) on the fixture body
(10) to the mounting plate screws (8). Secure the fixture body to
the mounting plate using rubber washers (12) and decorative
nuts (13).
7. Once the fixture is tightly secured to the j-box, apply a silicone
sealant around the base of the fixture to prevent moisture from
reaching the connections.
7. Once the fixture is tightly secured to the j-box, apply a silicone
sealant around the base of the fixture to prevent moisture from
reaching the connections.
8. Turn the power on at circuit breaker or fuse box. 8. Turn the power on at circuit breaker or fuse box.
DUSK TO DAWN AND MOTION SENSOR
The motion sensor on this fixture has a built in Dusk-to-Dawn sensor that automatically disables the Motion sensor during D2D
