Felt Compulsion Series - Pivot Torque Values

1716
15N-m
LOWER SHOCK MOUNT
Lower link PINCH BOLTS
Seat Tube Pivot
Dropout Pivot

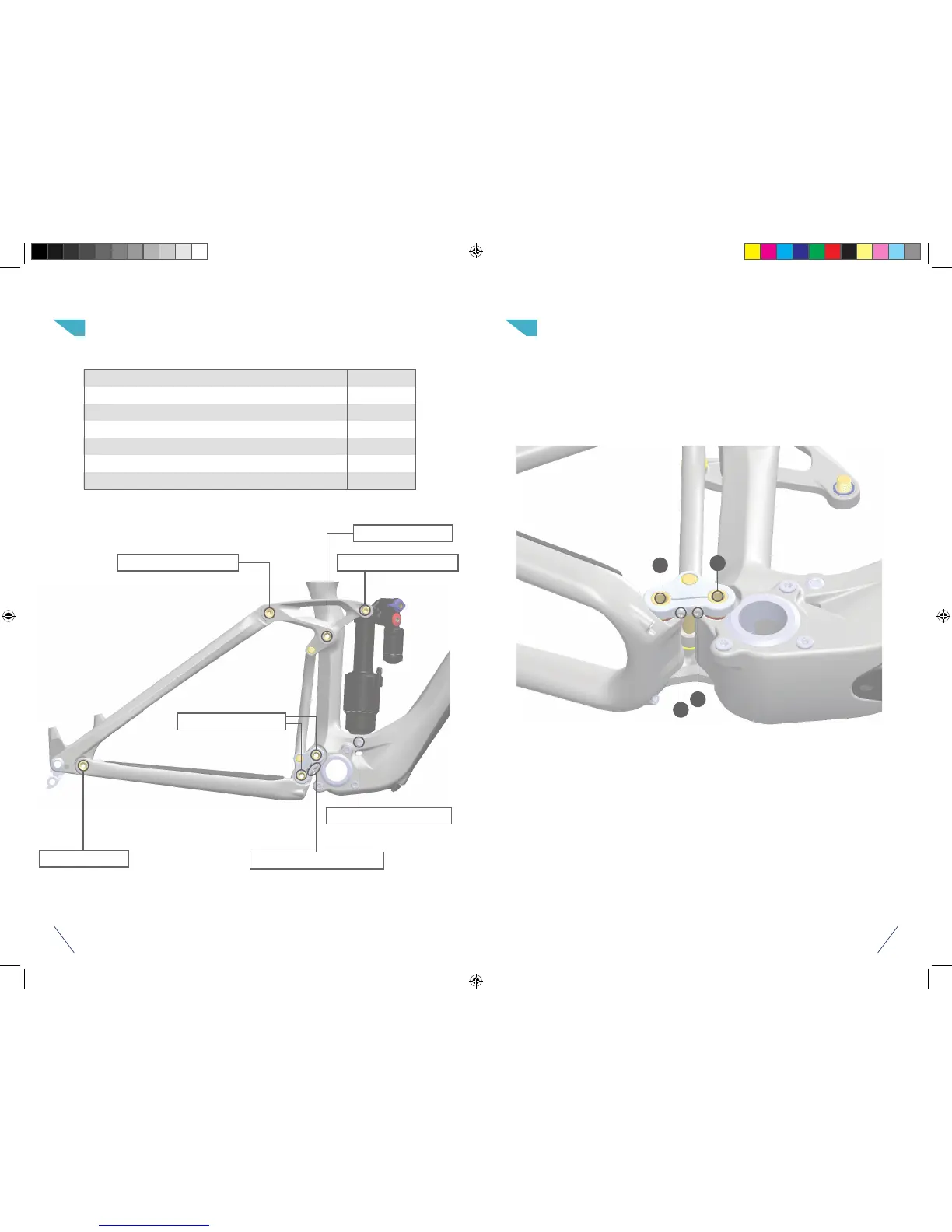

PIVOT TORQUE VALUES
LOWER LINK Pivot
SeatStay Yoke PIvot
Upper SHOCK MOUNT
18N-M
16N-M
15N-M
18n-m
13N-M
8N-M
SEAT TUBE PIVOT
SEATSTAY YOKE PIVOT UPPER SHOCK MOUNT
DROPOUT PIVOT
LOWER LINK PIVOTS
LOWER SHOCK MOUNT
LOWER LINK PINCH BOLTS
With the shock removed, lift the rear axle up to gain access to the lower link pinch
bolts. Loosen both pinch bolts with a T25 Torx wrench before removing lower link
axles.
After reinstalling and tightening both lower axles, tighten each pinch bolt to 8 N-m.
Repeat torquing each pinch bolt until neither one moves.
ORDER
C 18 N-m
D 18 N-m
A 8 N-m
B 8 N-m
A 8 N-m
B 8 N-m
PIVOT TORQUE VALUES
A
C
D
B
