LOWER LINK PIVOTS
BRTK
-006
BRTK
-020
BRTK
-014
BRTK
-011
BRTK
-003
BRTK
-007
BRTK
-004
BRTK
-001
BRTK
-011
BRTK
-014
BRTK
-011
BRTK
-005
BRTK
-017
Squeeze BRTK-017 to
insert it into the bearing.

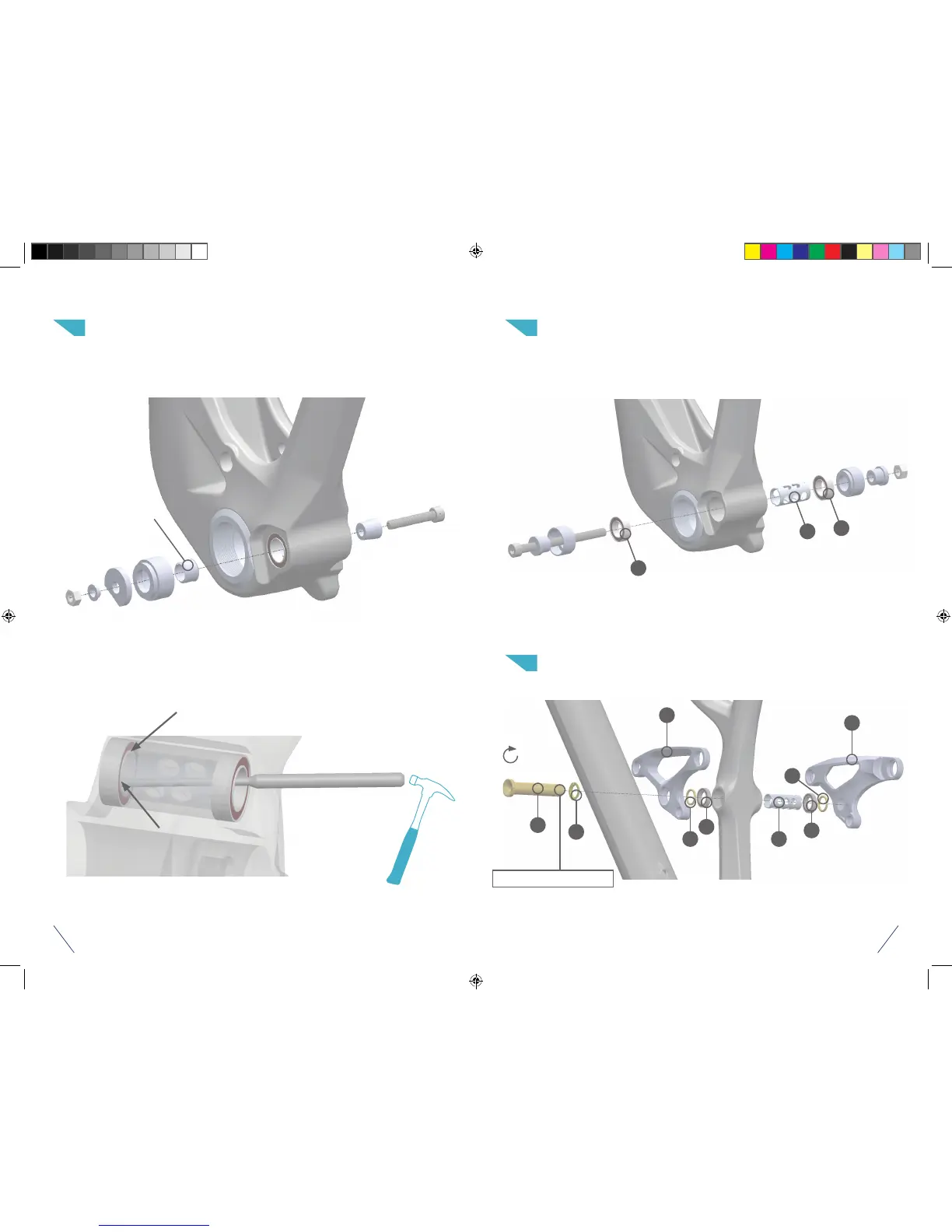

BEARING REMOVAL
ALTERNATE METHOD
BEARING INSTALLATION
Bearings in the lower link pivot of the chainstay and the
seat tube pivot can be removed in the same way.
Use a pin drift and hammer to gently strike the inner race
of the bearing. there are two cutouts at each end of the
bearing support sleeve to allow access to the bearing
inner race (arrows). Alternate between each cutout every
few taps to drive the bearing out evenly.
LOWER LINK PIVOTS
SEAT TUBE PIVOTS
26
20
26
18
19 21
27
27
17
5
6
19
APPLY LOCTITE 242
18 N-m
