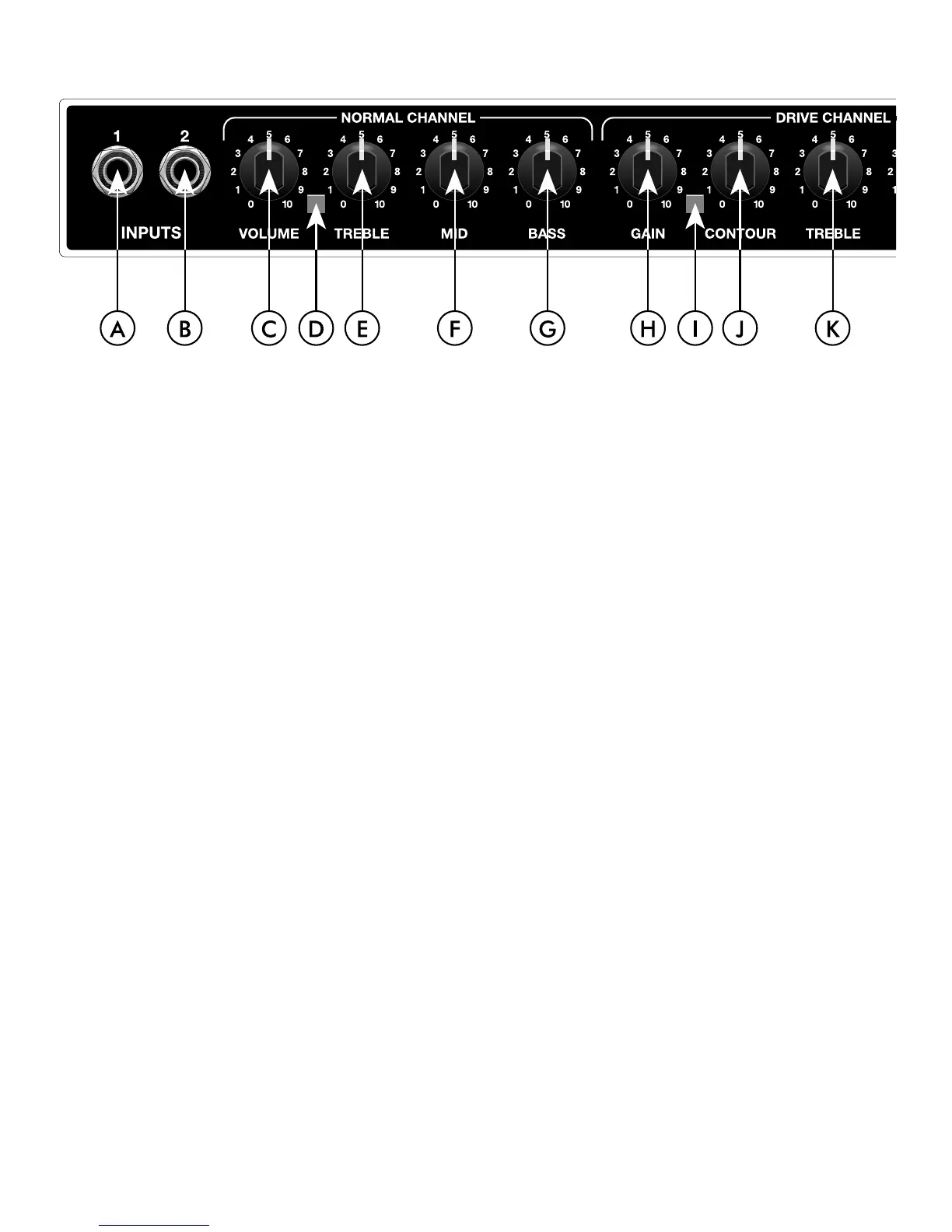

A. INPUT I- A high impedance, high sensitivity plug-in
connection for instruments.
B. INPUT 2- A plug-in connection for instruments. This input
exhibits lower input impedance and sensitivity than INPUT 1,
and is useful with active pre-amp guitars. This input will
provide a darker tone with passive guitars. Both inputs are
identical when used simultaneously.
C. VOLUME - Adjusts overall volume of the NORMAL
channel.
D. NORMAL CHANNEL INDICATOR- This L.E.D. is
illuminated when operating in the NORMAL channel.
E. TREBLE- Adjusts the amount of high- frequency boost or
cut in the NORMAL channel.
F. MID- Adjusts the amount of mid-frequency boost or cut in
the NORMAL channel.
G. BASS- Adjusts the amount of low- frequency boost or
cut in the NORMAL channel.
H. GAIN- Adjusts the amount of distortion in the DRIVE
channel. Lower settings provide a gradual compression
distortion, while higher settings provide more sustain. This
control works in conjunction with the DRIVE channel
VOLUME control (item N) to set the overall volume of the
DRIVE channel.
I. DRIVE CHANNEL INDICATOR- This L.E.D. is illuminated
when operating in the DRIVE channel.
J. CONTOUR- Adjusts the overall tone quality of the DRIVE
channel. Low CONTOUR setting will emphasize mid
frequencies. A higher setting will notch the midrange to
produce the “crunch” sound characteristic in most heavy
metal music.
K. TREBLE- Adjusts the amount of high- frequency boost
or cut in the DRIVE channel. This control is post distortion
and is useful in adjusting the distortion characteristic from
smooth to brash.
DELUXE 112 PLUS
FRONT PANEL FUNCTIONS
