Fender Frontman 15B Operating Instructions

6
wwwwww .. ffeennddeerr.. ccoomm ✧ wwwwww ..mmrrggeeaarrhheeaadd.. nneett
Front Panel Functions
Front Panel Functions
Your new Frontman
®
15B offers affordable
Fender
®
tone and quality:
• All front panel controls and jacks.
• Compact size ideal for rehearsal and
backstage warm-up.
• Headphones jack for private listening or
output to sound equipment.
• AUX IN RCA input jacks for use with a
portable CD or Tape player, drum
machine, etc.
• Deltacomp™ adaptive compression
virtually eliminates power-amp distortion
for clear tone and punchy response.
Fender
®
amplifiers are the result of over
50 years of experience and dedication that
our engineers and countless musicians
have gained in recording studios and on
stages around the world.
Fender
®
, The Sound That Creates Legends.

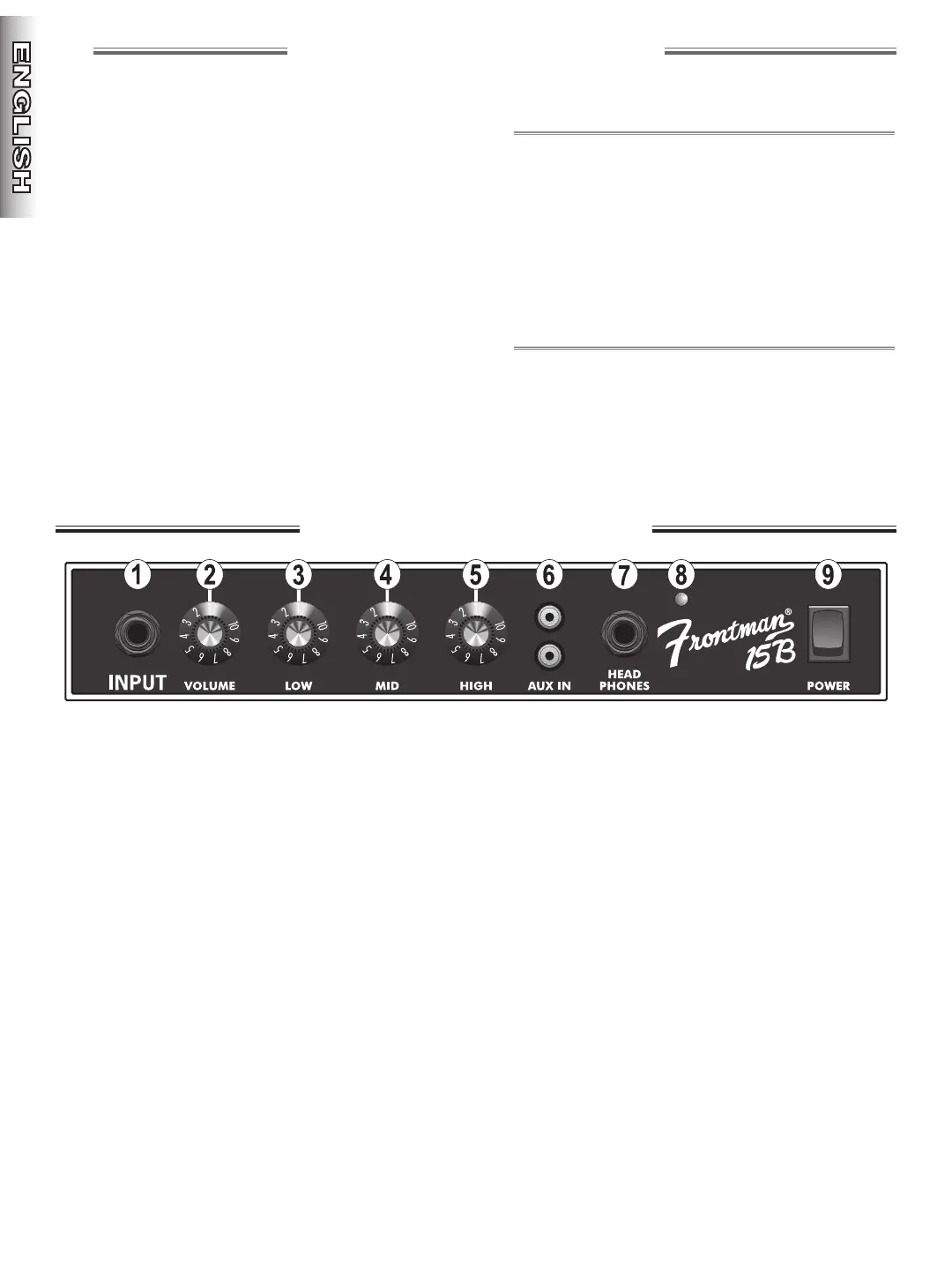

1. INPUT – Plug your bass guitar in here.
2. VOLUME – Adjusts the loudness of the
amplifier.
3. LOW – Adjusts the low-frequency level.
4. MID – Adjusts the middle-frequency
level.
5. HIGH – Adjusts the high-frequency
level.
6. AUX IN – RCA input jacks for use with a
portable CD or tape player, drum
machine, etc. These input jacks are not
affected by the amplifier’s volume or
tone controls. Adjust the signal at the
source.
7. HEADPHONES – Output jack for
standard stereo or mono headphones.
Using this jack automatically
disconnects the speaker. This jack can
also be used as an unbalanced line
output by using either a stereo or mono
1/4" phone plug connection.
8. POWER INDICATOR – Illuminates
when the unit is ON.
9. POWER SWITCH – This switch turns
the unit ON and OFF.
Fender
Fender
®
®
Frontman
Frontman
®
®
15B
15B

Fender Frontman 15B Specifications

Power

power requirement (100V version)	100V AC, 50/60 Hz, 45W
power requirement (120V version)	120V AC, 60 Hz, 45W
power requirement (230V version)	230V AC, 50 Hz, 45W
power requirement (240V version)	230V AC, 50 Hz, 45W
power output	15W R.M.S.

Speaker and Impedance

rated load impedance	8Ω
speaker complement	One 8Ω Special Design, 8" Speaker (P/N 025421)
input impedance	202k Ω

Dimensions and Weight

height	15 in. 38.1 cm
width	17.25 in. 34.3 cm
depth	9.75 in. 24.8 cm
weight	21 lbs. 9.5 kg
