Fender LEVEL SET BUFFER - Page 2

1
3
4
8
7
2
LEVEL SET BUFFER
LEVEL HI-FREQ
MUTE
LOAD

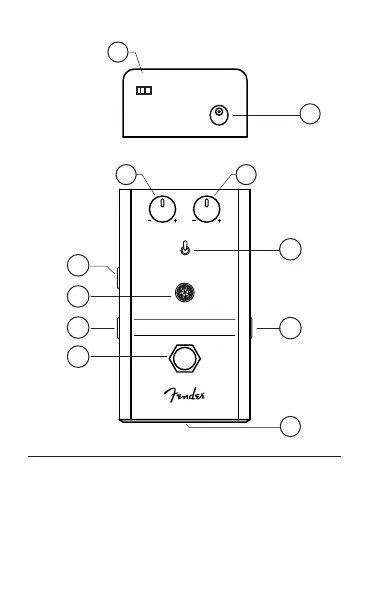

1. Mute Footswitch
2. Tuner Output Jack
3. Jewel Indicator
4. Main Output Jack
5. Level
6. Hi-Freq
7. Load Switch
8. Input Jack
9. Low Battery Indicator
10. LED Kill Switch
11. DC Power Connector
9
10
11
LEDs
9V DC
INPUT
5 6
