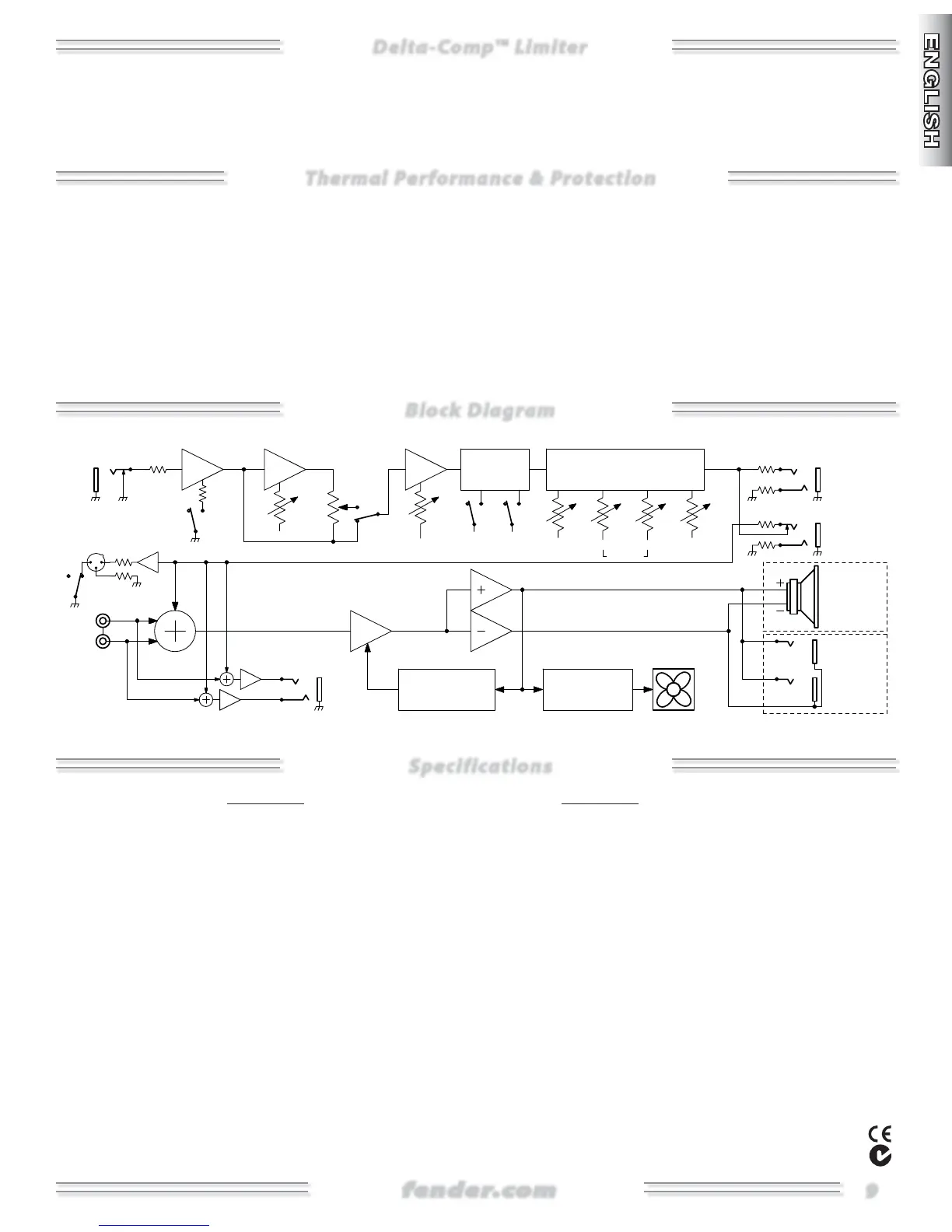

Block Diagram
Block Diagram
Rumble bass amplifiers are equipped with Fender’s Delta-
Comp limiter to minimize power amp distortion and increase
sustain. Setting the VOLUME control to higher settings
or playing aggressively with hotter basses may result in a
heavily compressed sound with increased sustain. Using the
–6dB switch or setting the VOLUME control lower will provide
a less compressed sound with more dynamic range and
increased touch-sensitivity.
Rumble bass amplifiers are equipped with variable speed fan
cooling and thermal shutdown protection. The fan will start
at a low speed and increase as you play harder. Leave at least
6 inches of clearance between the vents on your amplifier
and other objects. If the amplifier vents are blocked, or it
is used in an extremely hot environment, it may overheat
and shut down causing a temporary mute of the speaker
while the power LED indicator remains on. Under the most
extreme operating conditions it may be possible for the
thermal shutdown to disrupt the amplifier power supply
and the speaker will mute and the power LED indicator will
turn off. If any shutdown (speaker muting) occurs, leave the
power switch ON (to keep the fan running), and allow the
amplifier several minutes to cool down. The amplifier will
automatically resume operation when it has returned to a
safe operating temperature.
Delta-Comp™ Limiter
Delta-Comp™ Limiter
Thermal Performance & Protection
Thermal Performance & Protection
MODEL: Rumble 150 Rumble 350
POWER REQUIREMENT: 400W Max / 200W Typical 950W Max / 450W Typical
INPUT IMPEDANCES: 1M (Input) / 10k (Aux In) 1M (Input) / 10k (Aux In)
INPUT SENSITIVITY: 40mVrms (Input) / 300mVrms (Aux In, both channels driven) 40mVrms (Input) / 300mVrms (Aux In, both channels driven)
(For full power at 100Hz, with Volume at "10", and tone controls at "0")
TONE CONTROLS: BASS: ±15dB @ 80Hz BASS: ±15dB @ 80Hz
LOW-MID: ±12dB @ 400Hz LEVEL: ±15dB @ "Frequency" (Frequency: 150Hz - 1.5Hz)
HIGH-MID: ±12dB @ 1.2kHz TREBLE: ±15dB @ 10kHz
TREBLE: ±15dB @ 10kHz
SHAPE FILTER: PUNCH: +7dB @ 170Hz, –12dB @ 50Hz PUNCH: +7dB @ 170Hz, –12dB @ 50Hz
SCOOP: +2dB @ 125Hz, –13dB @ 650Hz, +2.5dB @ 8kHz SCOOP: +2dB @ 125Hz, –13dB @ 650Hz, +2.5dB @ 8kHz
FX LOOP IMPEDANCES: SEND: 1k (balanced) SEND: 1k (balanced)
RETURN: 18k (balanced) RETURN: 18k (balanced)
LINE OUT:
OUTPUT IMPEDANCE: 3.3k (balanced) OUTPUT IMPEDANCE: 3.3k (balanced)
MAXIMUM OUTPUT: +8.75dBU (into 600) MAXIMUM OUTPUT: +8.75dBU (into 600)
POWER AMP OUTPUT:
160 W into 4  @ < 0.1 % THD, 100 Hz 370 W into 4  @ < 0.1 % THD, 100 Hz
HEADPHONE OUTPUT: 280mW into 32/Channel 280mW into 32/Channel
SPEAKERS: One 15" Special Design - 4, Two 10" Special Design - 8 each
Piezo Tweeter Piezo Tweeter
Specifications are subject to change without notice. Visit www.fender.com for additional product information.
