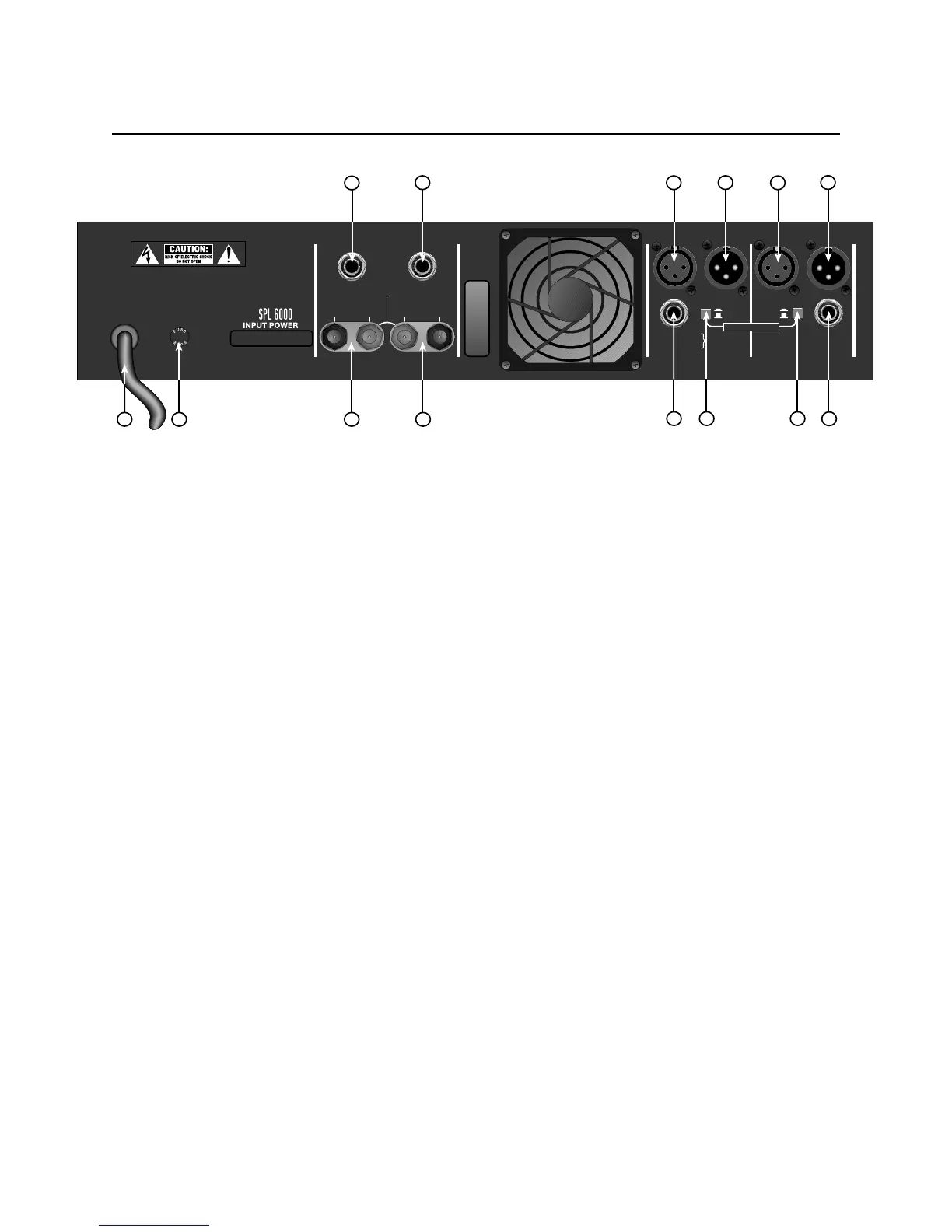

G - MODE SELECT MONO BRIDGED/STEREO
This two-position switch (left rear panel) selects either the
mono bridge or normal stereo mode. With the button in
the "in" position, the amplifier is in the mono bridged
mode. With the button in the "out" position, the amplifier
is configured for the normal two-channel stereo mode of
operation. In the Bridged Mode of operation, speaker out-
put is taken across the two red (positive) output terminals.
The Channel A terminal is the positive output terminal and
the Channel B terminal is the negative terminal for bridged
operation only.
CAUTION: In the Bridged Mode of operation,
the load floats and is NOT chassis ground
referenced.
H - MODE SELECT, DUAL MONO/STEREO
This two-position switch connects the amplifier inputs
together to allow channel A and B to be summed (mixed)
for non-bridged mono operation. In the dual mono and
the stereo mode of operation, both attenuators control
their respective channels.
I, J & K - INPUT CONNECTORS
Each channel is provided with a Female XLR (I) and Male
XLR (J) connectors for easy "Daisy Chain" operation
of multiple channels in large systems, and a 1/4" inch tip-
ring-sleeve (stereo) phone jack (K). Each input is electroni-
cally balanced and will accept signals from balanced
sources (either active or transformer) or from unbalanced
circuits. Pin #2 is the positive pin on the XLR connectors.
L - AC POWER CORD
WARNING: This amplifier is equipped with a 3-
prong, grounding type supply cord. To reduce
the possibility of shock hazard, be sure to con-
nect the unit to a grounded AC recepticle. DO
NOT ALTER THE AC PLUG!
100-120V OPERATION
This must be connected to a source of 100V or 120V, 50 to
60 Hz AC power with a current capability of at least 10 A.
As a general guideline, it is accepted to connect two (2) SPL-
6000 amplifiers to one (1) 20 ampere circuit provided the
load is limited to 4-ohm loudspeakers on each channel and
the signal source is full range music or speech.
220-240V OPERATION
This must be connected to a source of 220-240V, 50 to 60 Hz
AC power with a current capability of at least 5 A.
M - EXTERNAL FUSE
When necessary, replace the external fuse only with one of
the same type and rating as shown on the label
next to the external fuse holder.
