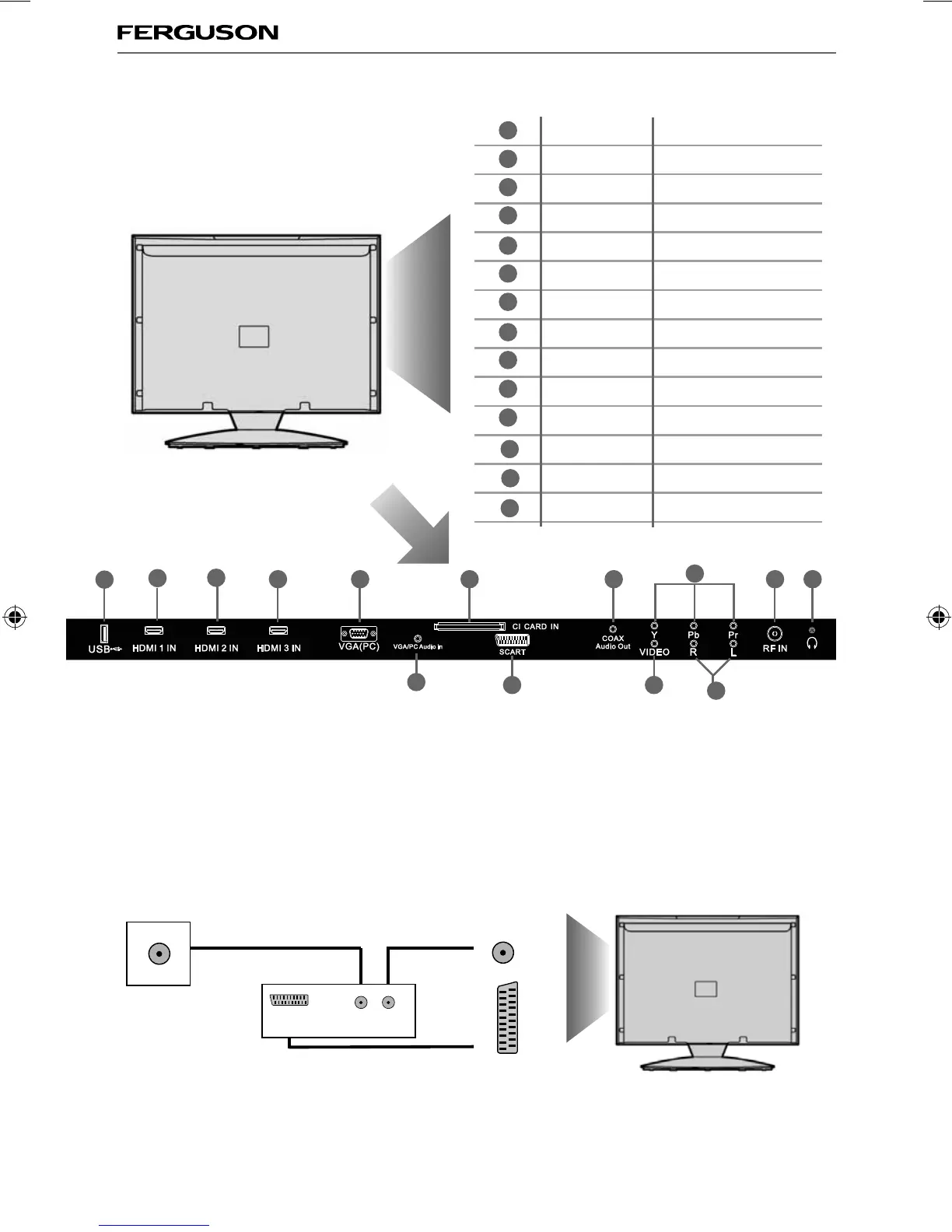

Ferguson F3216LVD2 - TV Connection Ports; Connecting External Devices via SCART

14
A
B
C
DE G I MN
L
N
M
J
USB USB port
HDMI 1 HDMI input
HDMI 2 HDMI input
HDMI 3 HDMI input
VGA(PC) VGA-PC input
VGA(PC) Audio In 3.5mm PC audio input
CI CARD IN Common Interface Card Input
SCART SCART input
COAX Audio Out Digital Coax output
COMPONENT (HD) Component input (YPbPr)
VIDEO Video input
R/L (COMPONENT)
RF IN RF / TV Aerial Input
3.5mm JACK Headphone socket
A
B
C
D
E
F
G
H
I
J
K
Connecting a DVD Player/Recorder, Video Recorder or
Cable/Satellite Box
TVs Input/Source should be set to SCART
CONNECTIONS
Connections
RF I N
SCART
TV Aerial
Wall Socket
SCART
OUT
RF
IN
RF
OUT
DVD or VCR
F
H
L
K
AV (CVBS) & Component
(Y,Pb,Pr) Audio input
