Dosing signal

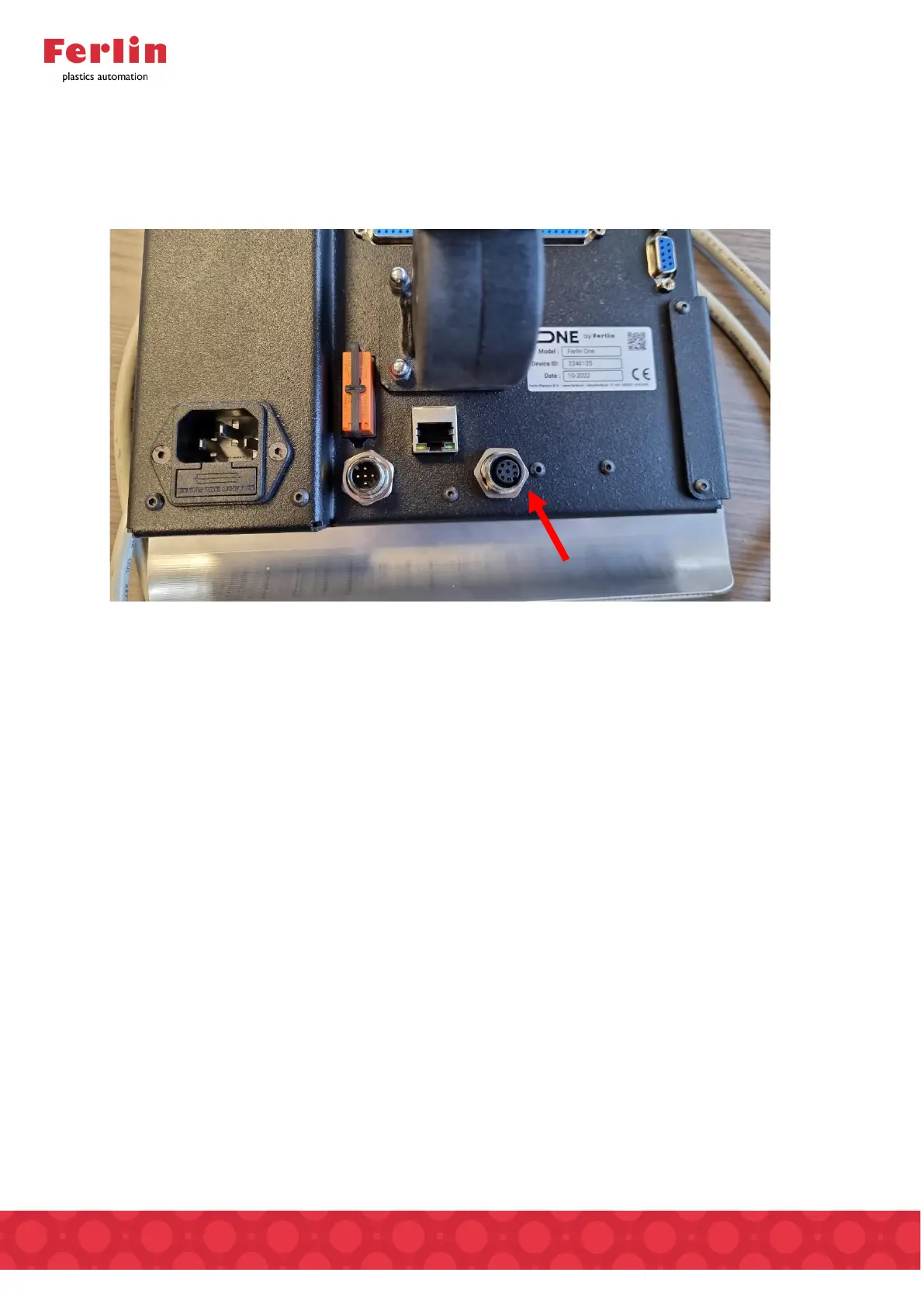

De The controller of the Ferlin One has an M12 connector on the back that has 8 poles. The
potential-free dosing contact of the injection moulding machine must be connected to this. A screw
connector is supplied with the Ferlin One. Additionally the injection signal can also be connected to
also configure dosing during injection.
Connections:
Pin 3 - 24 v outgoing signal
Pin 4 - returning dosing signal
Pin 5 – returning injection signal
