Ferm CDM1120 - Exploded View; Spare Parts List

118
Spare parts list
Position Description No
1 Chuck screw, M5 x 22L 101213
2 Chuck 13mm 470237
3-33 Gear box assembled 101209
34-35 Motor with pinion gear 18V 101215
42-44 Switch,FET,heat sink, terminal 101212
Battery 18V - 1.5Ah CDA1144
Fast charger adapter 18V CDA1145
42
41
45
44
43
40
39
37
10
3
2
1
32
31
38
36
35
34
33
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
9
8
7
6
5
4
9

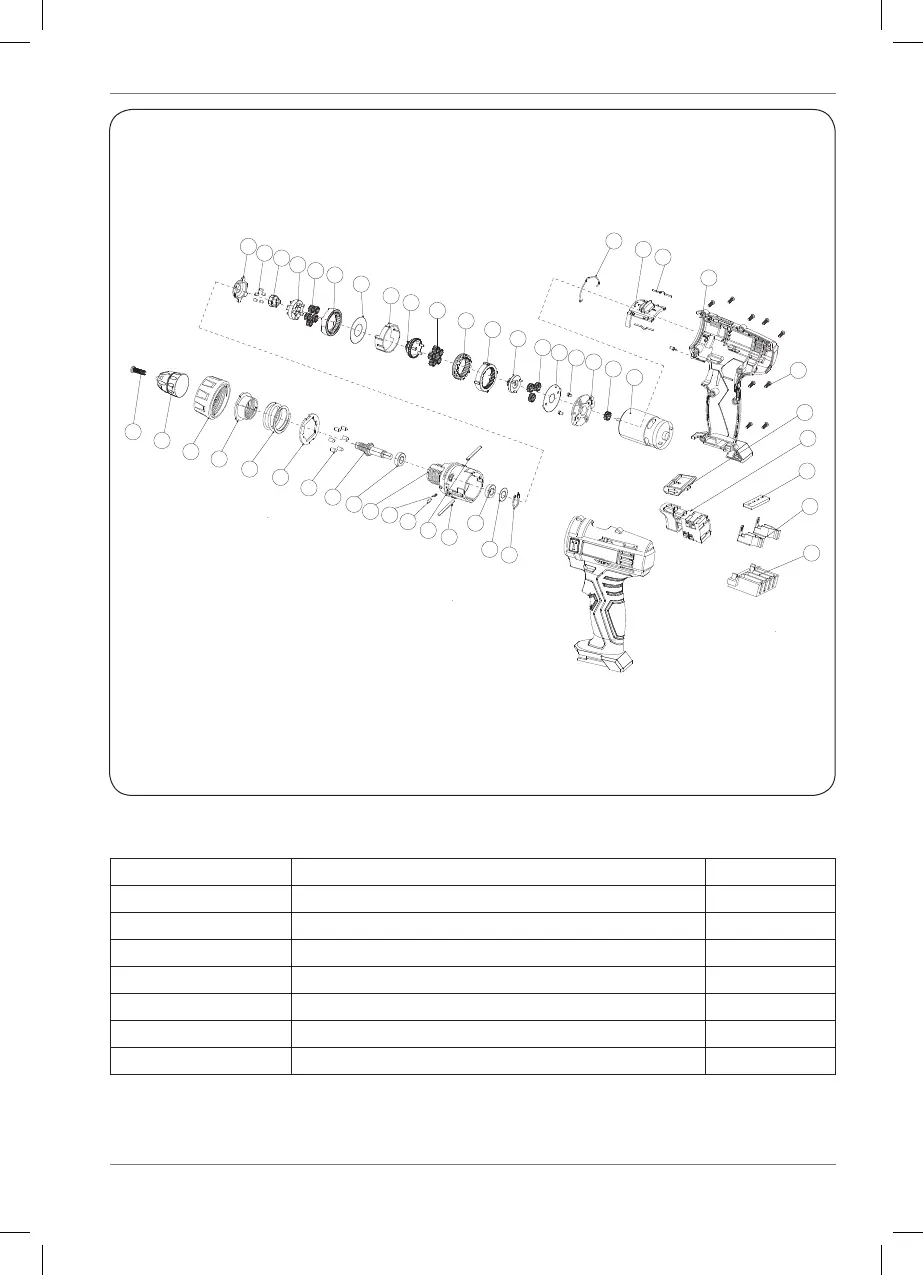

Exploded view
