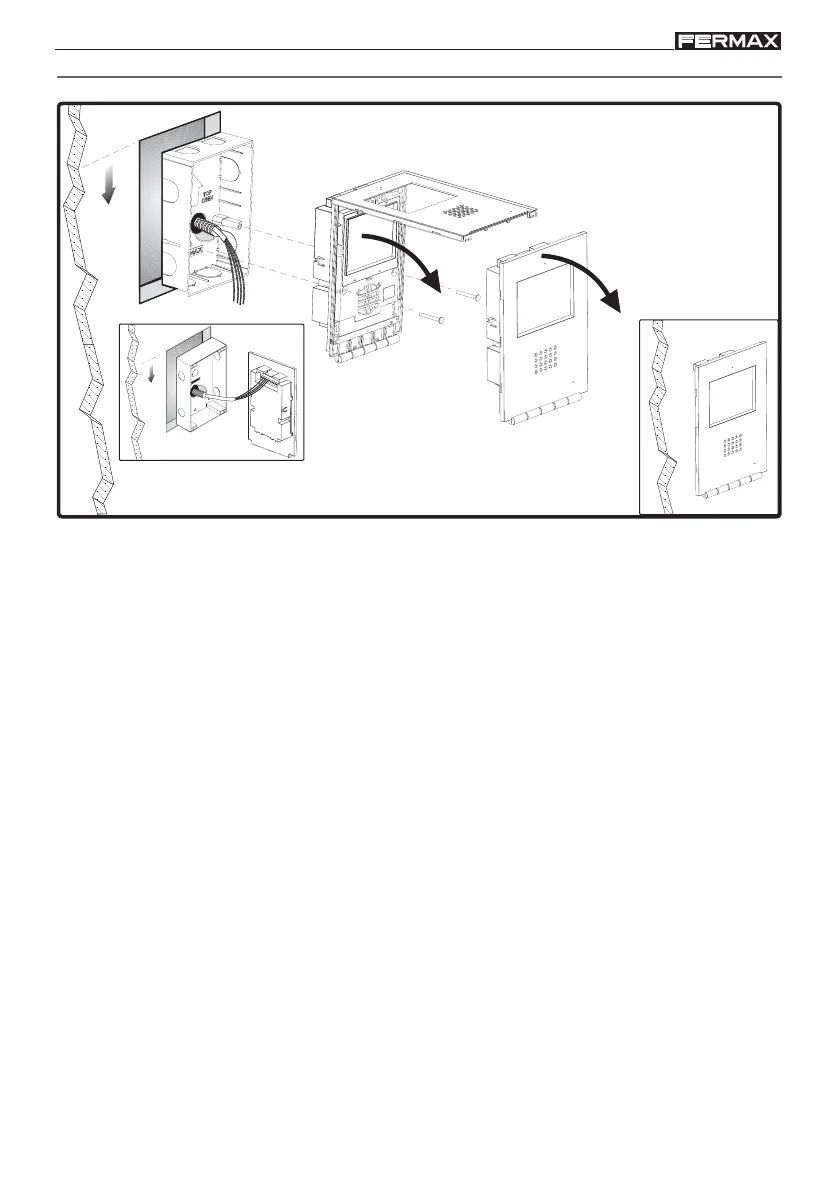

MONITOR INSTALLATION
1.60m
5.25 feet
(*)
(*)
1.60m
5.25 feet
C
t
+MVMV
F
1
T
A
+
L-
F
2
(*) Remove electrostatic protective tag.
Dimensions of monitor (Height x Width x Depth.): : 197 x 131 x 60 mm / 7,7” x 5,1” x 2,3”
Dimensions of Fermax box (Height x Width x Depth): 158 x 108 x 45 mm / 6,2” x 4,2” x 1,7”
