3VDS VIDEO MONITOR 3
VDS
F
1
F
2
Code 97891 V05_16

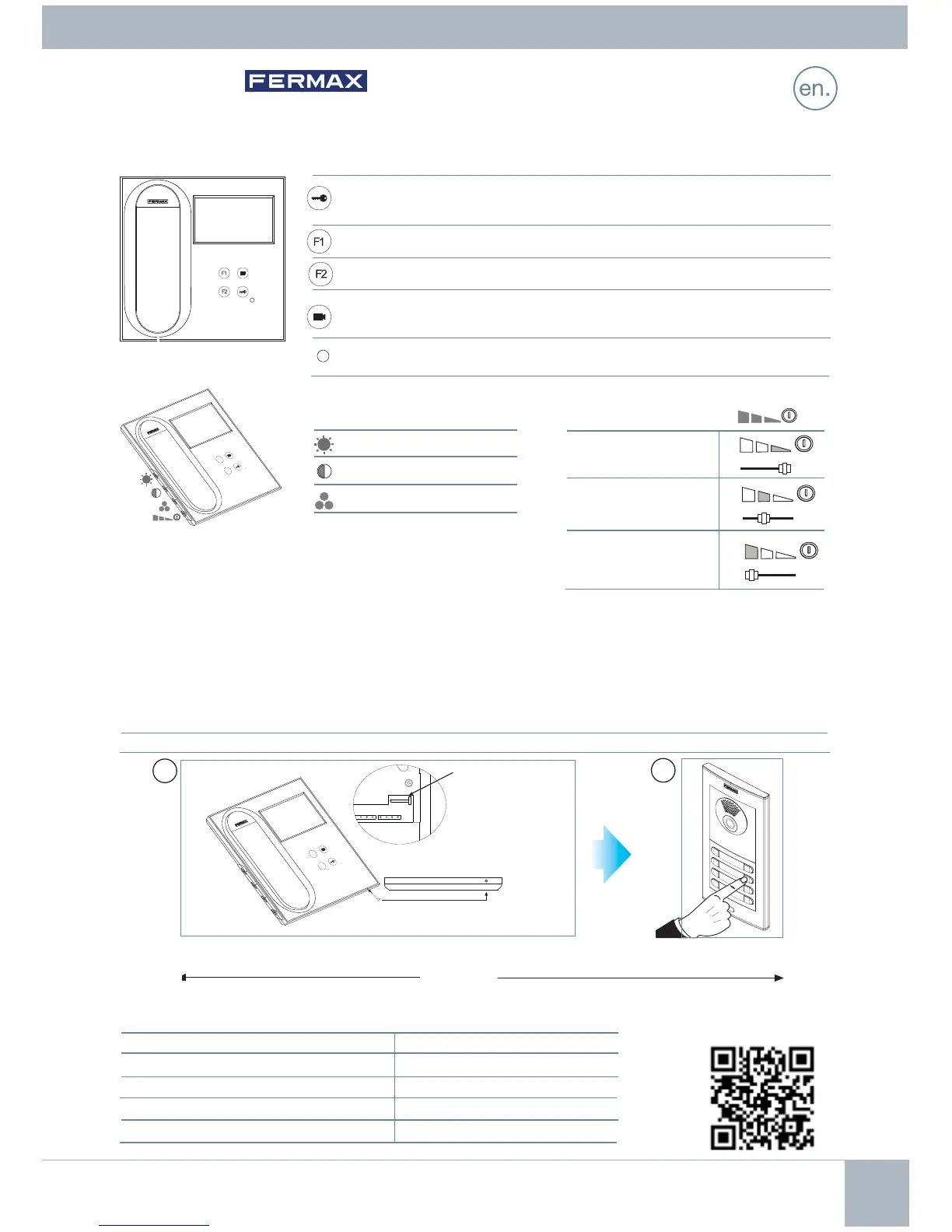

START GUIDE FOR THE VEO VDS MONITOR
CONTROL BUTTONS
HOW TO PROGRAM THE VEO MONITOR
COMPLETE
MANUAL
In conversation, press to open the door.
In standby, call to guard unit (if applicable).
Additional function (see your installer).
Additional function (see your installer).
In standby, press and view the main panel´s camera. Auto-start and
select Main/Secondary camera (depending on the installation).
LED indicator of the monitor that is on.
LED
TECHNICAL CHARACTERISTICS (TFT 4,3” OSD screen)
Power supply 18 Vdc
Standby Consumption 12 mA
Audio + Video consumption 300 mA
Calling consumption 400 mA
Operating temperature [-5º , +40ºC] / [23º, 104ºF]
Monitor powered for the fi rst time.
The fi xed red led indicates that the monitor is powered and on (audio volume).
1. INSTALL
1. With the monitor on, press the programming button. A confi rmation tone will be emitted.
2. Press the call-to-residence button. Again, a confi rmation tone is emitted.*
2. PROGRAM (Panel confi gured as MASTER)
< 2 min
2
1
programming tool
programming button
AUDIO SETTINGS
Off
On
with MEDIUM volume
On
With HIGH volume
VIDEO SETTINGS
Brightness
Contrast
Colour
(only colour monitors)
Note: The monitor will not work if it has not been programmed.
