Ferris 41031301 - Exploded Views;Parts List and Pack Drawing

14

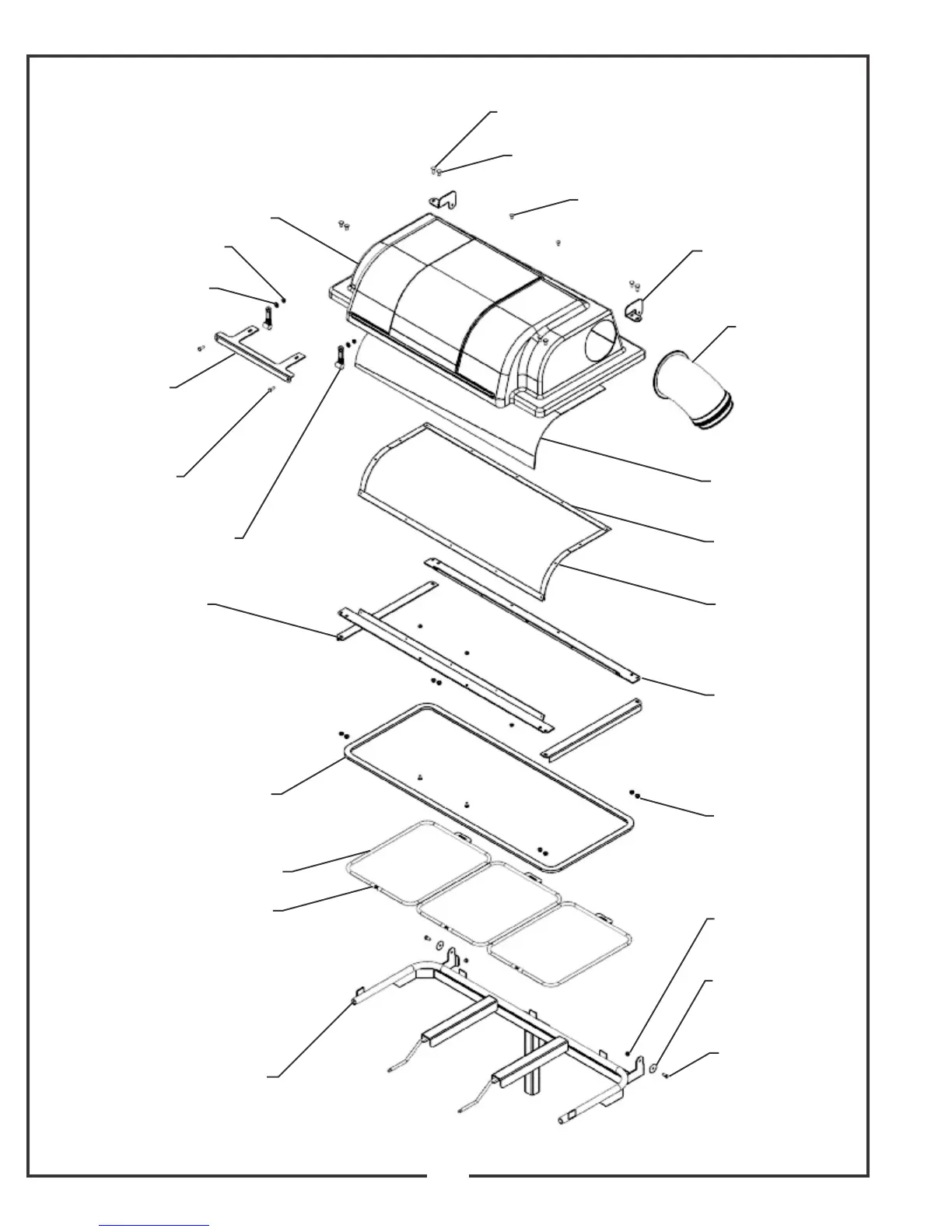

Exploded View Of The
A0551 - Bagger Assembly
(2) K1144 - 5/16”-18 x 1”
CARRIAGE BOLT
(6) K1142 - 5/16”-18 x 3/4”
CARRIAGE BOLT
(4) K1010 - 1/4”-20 x 5/8”
CARRIAGE BOLT
(1 LEFT, 1 RIGHT)
B0237 - PIVOT
BRACKET
(1) V1054 - INLET
(1) B8002 - PLASTIC
SCREEN
(2) C0051 - LONG
SCREEN MOUNT
STRIP
(2) C0052 - SHORT
SCREEN MOUNT
STRIP
(1) V0002 - PLASTIC TOP
(2) K1126 - 1/4”-20
FLANGE NUT
(2) K0037 - 1/4” FLAT
WASHER
(1) C0048 -
LATCH MOUNT
BRACKET
(2) K1025 - 1/4”-20
x 1” CARRIAGE
BOLT
(2) J4005 - FLEXIBLE
DRAW LATCH
(2) C0047 - PIVOT
BRACE
(2) C0049 - SCREEN
BRACE
(8) K1178 - 5/16”-18
FLANGE NUT
(1) V0005 - BAG RING SEAL
(6) J0274 - BAG RING END CAP
(3) A0584 - BAG RING
ASSEMBLY
(2) K1180 - 5/16”-18
NYLOC NUT
(2) K0041 - 5/16”
FENDER WASHER
(2) K1153 - 5/16”-18
x 3/4” HHCS
(1) A0585 - UPPER FRAME
ASSEMBLY
