disengaged before moving the ground speed control levers
out of the NEUTRAL position.
DISENGAGE: Releases the
parking brake.
ENGAGE: Locks the parking
brake.

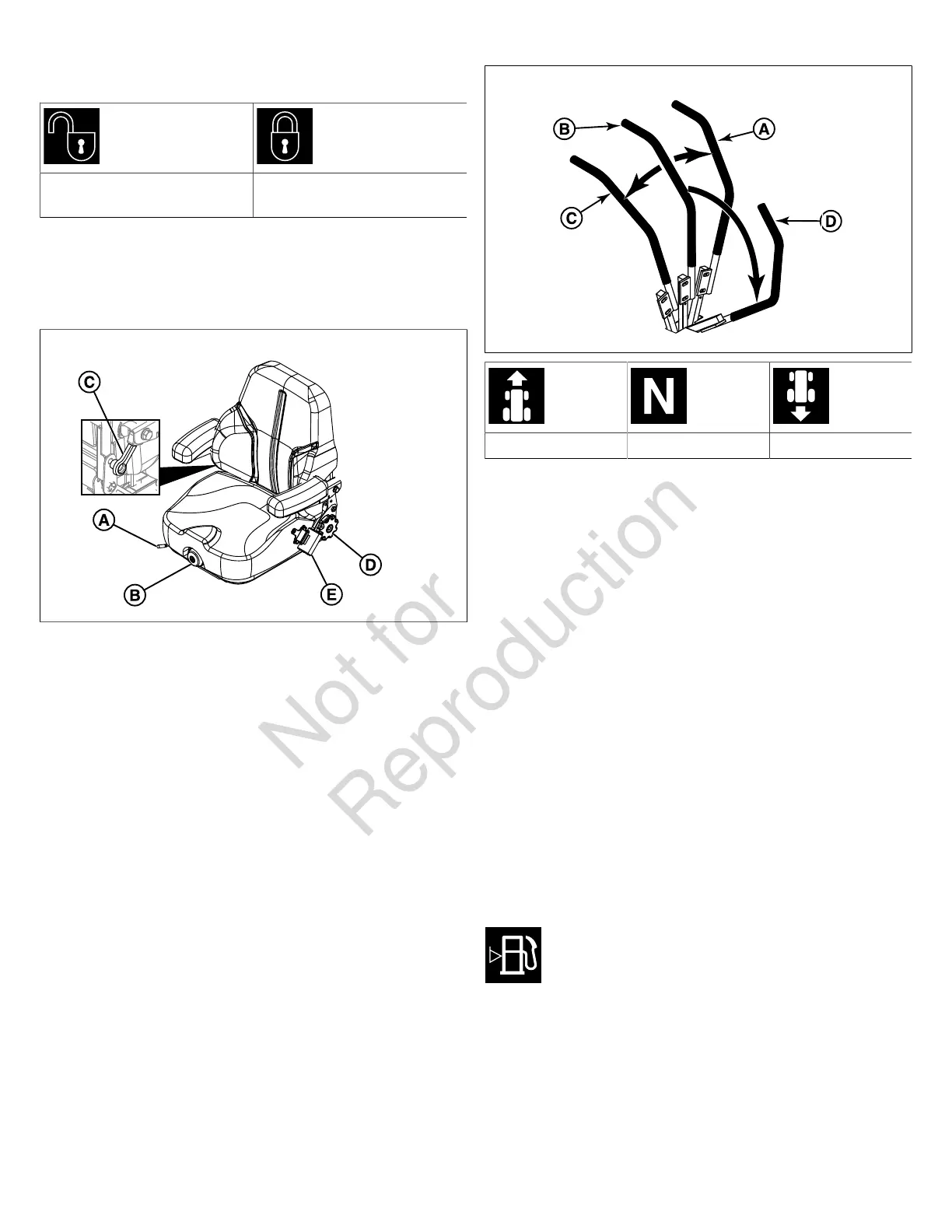

Suspension Seat: Some models are equipped with a
suspension seat. This seat has several additional options.
See Figure 9 and the list below for the location of the seats
features and brief description of their function.
9
A. Seat Adjustment Lever (Forwards/Backwards):
The seat can be adjusted forward and back. Move the
forwards / backwards seat adjustment lever, position the
seat as desired, and release the lever to lock the seat in
position.
B. Seat Adjustment Knob (Suspension/Ride Comfort):
The seat adjustment knob adjusts the suspension of the
seat (ride comfort). Turn the adjustment knob until the
display scale has a reading that matches the weight of
the operator.
C. Lumbar Adjustment Lever (Located underneath right
hand arm rest): Turn the lumbar adjustment knob until
the desired amount of lumbar is achieved.
D. Back Angle Adjustment Knob: Turn the back angle
adjustment knob until the desired amount of back angle is
achieved.
E. Retractable Seat Belt: The seat belt is used to secure
the operator to the seat.
Note:The seat belt should always be worn when the Roll Bar
is in the raised position. The seat belt should never be worn
when the Roll Bar is in the down position.
Ground Speed Control Levers: These levers control the
ground speed and direction of the zero-turn riding mower.
The left lever controls the left rear drive wheel and the right
lever controls the right rear drive wheel.
10
Forward Neutral Reverse
The parking brake must be disengaged before attempting to
move the ground speed control levers from the NEUTRAL
position.
Moving a lever forward (A) from the NEUTRAL position (B)
increases the FORWARD speed of the associated wheel, and
pulling back (C) on a lever increases the REVERSE speed.
Moving the levers outwards (D) from the NEUTRAL position
locks the levers in the NEUTRAL LOCKOUT position.
Note:The further a lever is moved away from the neutral
position the faster the drive wheel will turn.
See the Zero-Turn Riding Mower Driving Practice section for
steering instructions.
Fuel Selector Valve: Turning the handle to the desired
position determines which tank will be supplying fuel. With
the handle pointing LEFT, it will draw fuel from the left-hand
tank. With the handle pointing RIGHT, it will draw fuel from
the right-hand fuel tank. With the handle pointing towards the
operator, it will shut off fuel flow to the engine.
Fuel Tank Cap: To remove the cap, turn counter-clockwise.
Fuel Level Gauge: Displays the fuel level in the
tank.
Removable Floor Plate: The floor plate can be removed for
easy access to the mower deck. To remove the plate, remove
the retainer hardware and tilt the floor pan up and then
remove from the unit. Reverse the process for re-installation.
Transmission Oil Fill: Transmission oil is added through the
hydraulic oil tanks. It also serves as extra holding capacity
for oil as the transmissions heat up and the hydraulic oil
