18 ferrismowers.com
D.

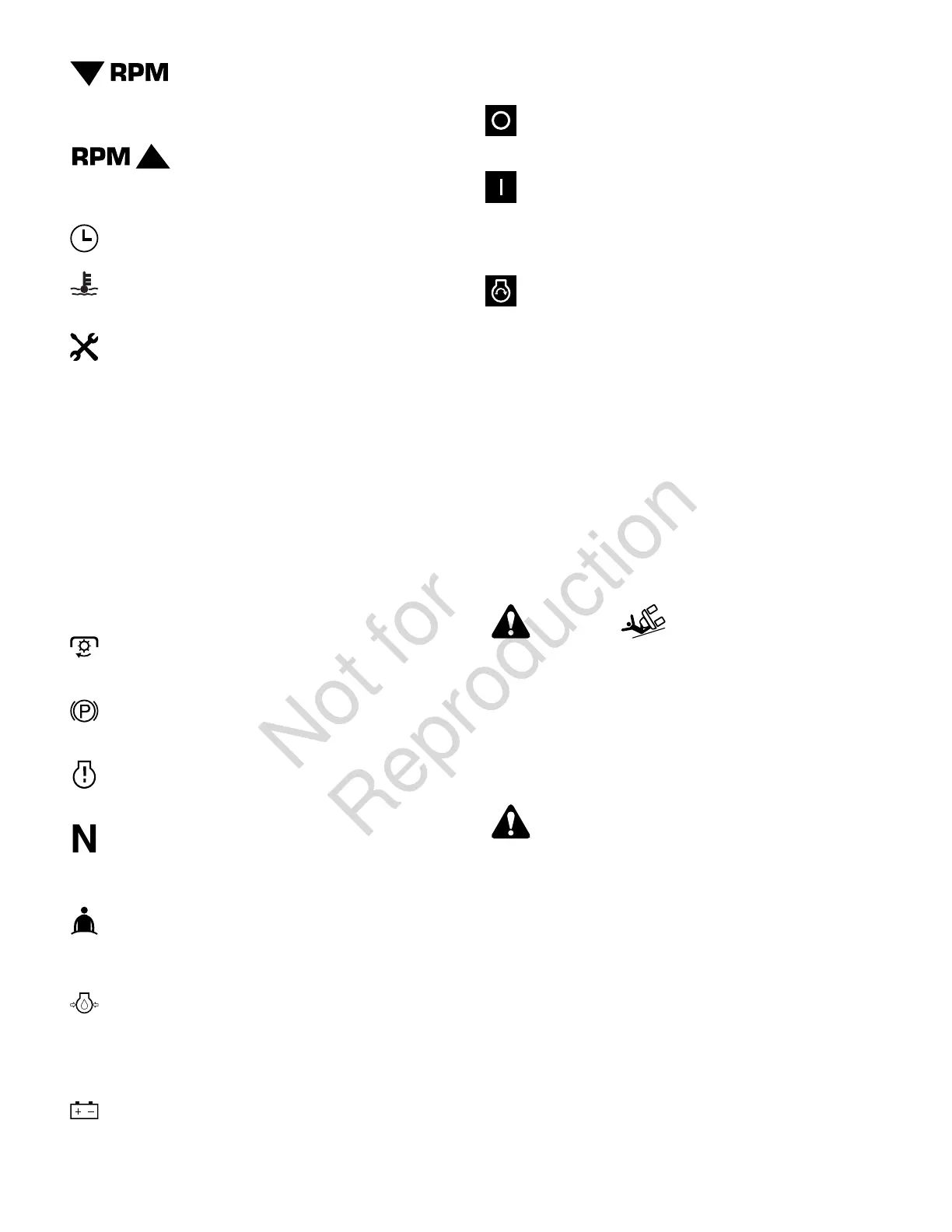

Decrease Engine RPM Button: Press
this button to incrementally decrease the engine throttle
speed.
E.
Increase Engine RPM Button: Press
this button to incrementally increase the engine throttle
speed.
F.
Clock: The clock displays the time of day.
G.
Water Temperature Gauge: This gauge displays
the engine coolant temperature.
H.
Service Reminder Light: This light illuminates
when a regular service maintenance item needs to be
performed.
I. Total PTO Hours: This displays the total number of
hours that the PTO is engaged.
J. Speedometer - Engine RPM Speed: This gauge
displays the engine RPM.
K. Resettable PTO Hours: This displays the current
number of PTO. It can be reset by the operator.
L. Current Engine RPM: This displays the engine RPM's as
a numerical readout.
M. Current Engine Hours: This displays the total number of
hours that the engine has run.
N.
PTO Clutch Circuit Indicator Light: This light will
illuminate when the PTO switch is turned on.
O.
Parking Brake Circuit Indicator Light: This light
will illuminate when the parking brake is engaged.
P.
Engine Fault Indicator Light: This light will
illuminate when there is an engine fault code.
Q.
Neutral Circuit Indicator Light: This light will
illuminate when the ground speed control levers are not
locked out in the neutral position.
R.
Operator Presence Circuit Indicator Light: This
light will illuminate when the operator is sitting in the seat
of the unit.
S.
Oil Pressure Gauge: This gauge displays the
engine oil pressure.
T. Engine Torque: This gauge displays the percentage of
engine torque.
U.
Voltage Gauge: This gauge measures the output
voltage of the engine charging system.
Ignition Switch - 3 Position: The ignition switch starts and
stops the engine, it has three positions:
OFF: Stops the engine and shuts off the electrical
system.
HEAT/RUN: Turning the key to this position prior to
starting the engine heats the glow plug(s). After the engine
starts, the ignition returns to this position and allows the
engine to run and powers the electrical system.
START: Cranks the engine for starting.
Note:Never leave the ignition switch in the RUN position with
the engine stopped—this drains the battery.
Operation
Before First Time Operation
• Be sure to read all information in the Safety and
Operation sections before attempting to operate this
tractor and mower.
• Become familiar with all of the controls and how to stop
the unit.
• Drive in an open area without mowing to become
accustomed to the unit.
WARNING
• Never operate on slopes greater than 15°.
• Select slow ground speed before driving onto a slope.
Use extra caution when operating on slopes with a rear-
mounted grass catcher.
• Avoid turning down slopes; if possible turn up slopes.
Use caution when changing direction on slopes anddo
NOT start or stop on a slope.
WARNING
• Never allow passengers to ride on the unit.
• Before leaving the operator’s position for any reason,
engage the parking brake, disengage the PTO, stop the
engine and remove the key.
• To reduce fire hazard, keep the engine, rider and
mower free of grass, leaves and excess grease.
Do NOT stop or park rider over dry leaves, grass or
combustible materials.
• Fuel is highly flammable and must be handled with
care. Never fill the tank when the engine is still hot from
recent operation. Do NOT allow open flame, smoking or
matches in the area. Avoid over-filling and wipe up any
spills.
