Ferris IS700Z series User Manual

Not for
Reproduction
17
A. DeckLift Pedal
B. CuttingHeight Adjustment Pin
C. Deck Lift Lock Lever
D. GroundSpeed Control Levers
E. FuelLevel Gauge
F. Parking Brake Lever
G. Suspension Seat
H. Roll Bar
I. Seat Latch
J. Fuel Tank Cap
K. Removable Floor Plate
L. TransmissionOil Fill/Tanks (One per transmission)
M. TransmissionRelease Levers (One per transmission)

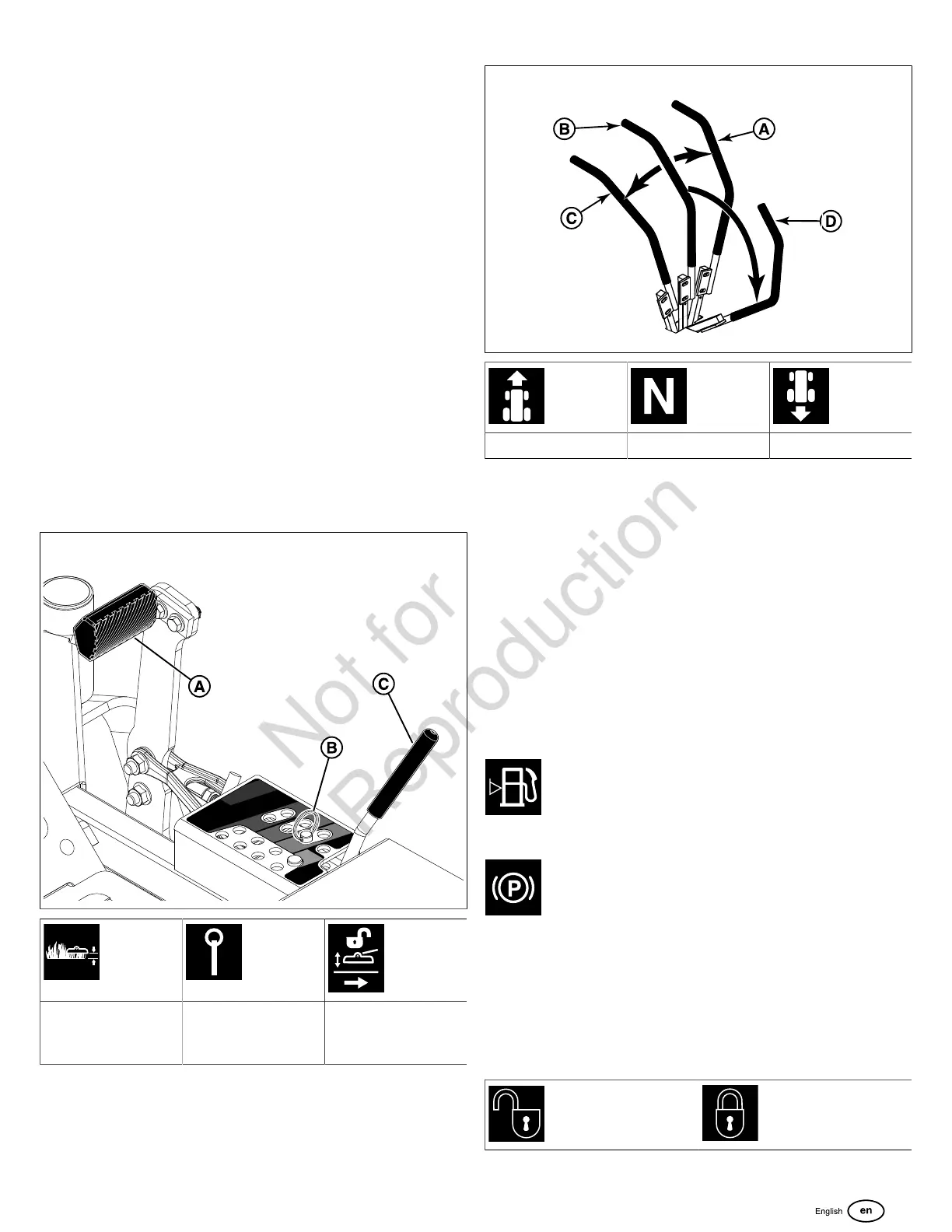

Deck Lift Pedal, Cutting Height Adjustment Pin & Deck
Lift Lock Lever: The deck lift pedal (A, Figure 7), the cutting
height adjustment pin (B), and the deck lift lock lever (C) are
used together to control the cutting height of the mower deck.
See Cutting Height Adjustment for instructions on using these
controls.
7
Cutting Height
Adjustment
Storage Hole for
Cutting Height
Adjustment Pin
Deck Lift Lock
Lever
Ground Speed Control Levers: These levers control the
ground speed and direction of the zero-turn riding mower.
The left lever controls the left rear drive wheel and the right
lever controls the right rear drive wheel.
8
Forward Neutral Reverse
The parking brake must be disengaged before attempting to
move the ground speed control levers from the NEUTRAL
position.
Moving a lever forward (A) from the NEUTRAL position (B)
increases the FORWARD speed of the associated wheel, and
pulling back (C) on a lever increases the REVERSE speed.
Moving the levers outwards (D) from the NEUTRAL position
locks the levers in the NEUTRAL LOCKOUT position.
Note:The further a lever is moved away from the neutral
position the faster the drive wheel will turn.
See the Zero-Turn Riding Mower Driving Practice section for
steering instructions.
Fuel Level Gauge: Displays the fuel level in the
tank.
Parking Brake: Pull the parking brake lever up
and back to engage the parking brake. Move the lever fully
forward and down to disengage the parking brake.
Note:To start the unit the parking brake must be engaged.
Engaging the parking brake locks the ground speed control
levers in the NEUTRAL position. The parking brake must be
disengaged before moving the ground speed control levers
out of the NEUTRAL position.
