Parking Brake
Disengage
Releases the parking
brake.
Engage
Engages the parking
brake.
Pull the parking brake lever back to engage the
parking brake. Move the lever fully forward to
disengage the parking brake.
NOTE: To start the unit the parking brake must be
engaged.
NOTE: Allowing the lever to “snap” into the OFF
position will place undue strain on the lever and brake
linkages.
Ground Speed Pedal
This pedal controls the ground speed of the
rider. Depressing the pedal forward increases the
FORWARD speed of the rider, and depressing the
pedal rearward increases the REVERSE speed.
NOTE: The further the pedal is moved away from the
neutral position the faster the drive wheels will turn.
Ignition Switch
The ignition switch starts and stops the engine, it has
three positions:
Off
Stops the engine and shuts off the
electrical system
Run
Allows the engine to run and powers
the electrical system.
Start
Cranks the engine for starting.
NOTE: Never leave the ignition switch in the RUN
position with the engine stopped–this drains the
battery.
CONTROL FUNCTIONS
The information below briefly describes the function of individual controls. Starting, stopping, driving, and
mowing require the combined use of several controls applied in specific sequences. To learn what combination
and sequence of controls to use for various tasks see the OPERATION section.
Features and Controls

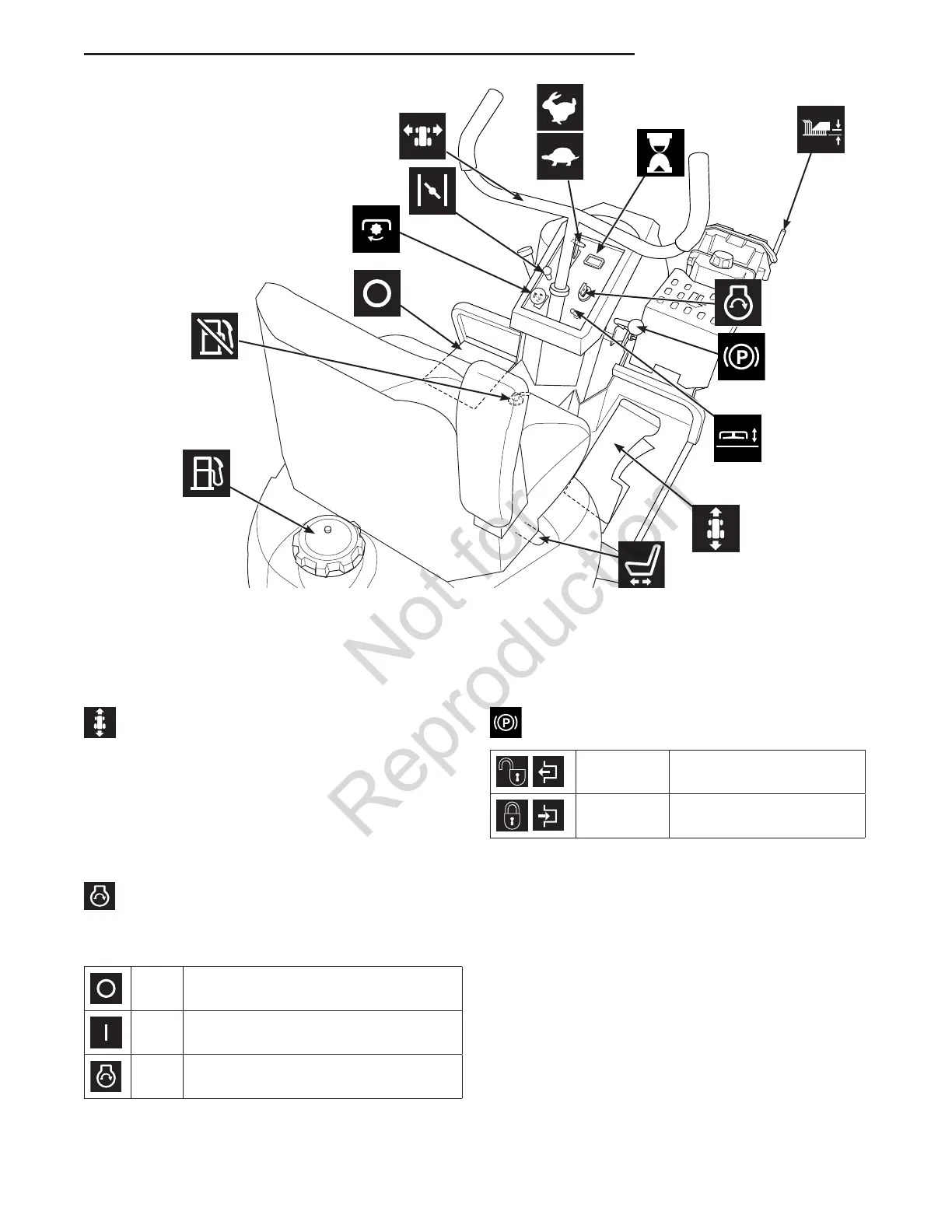

Figure 2. Control Locations
