Main Menu – LEVELS (Outputs)

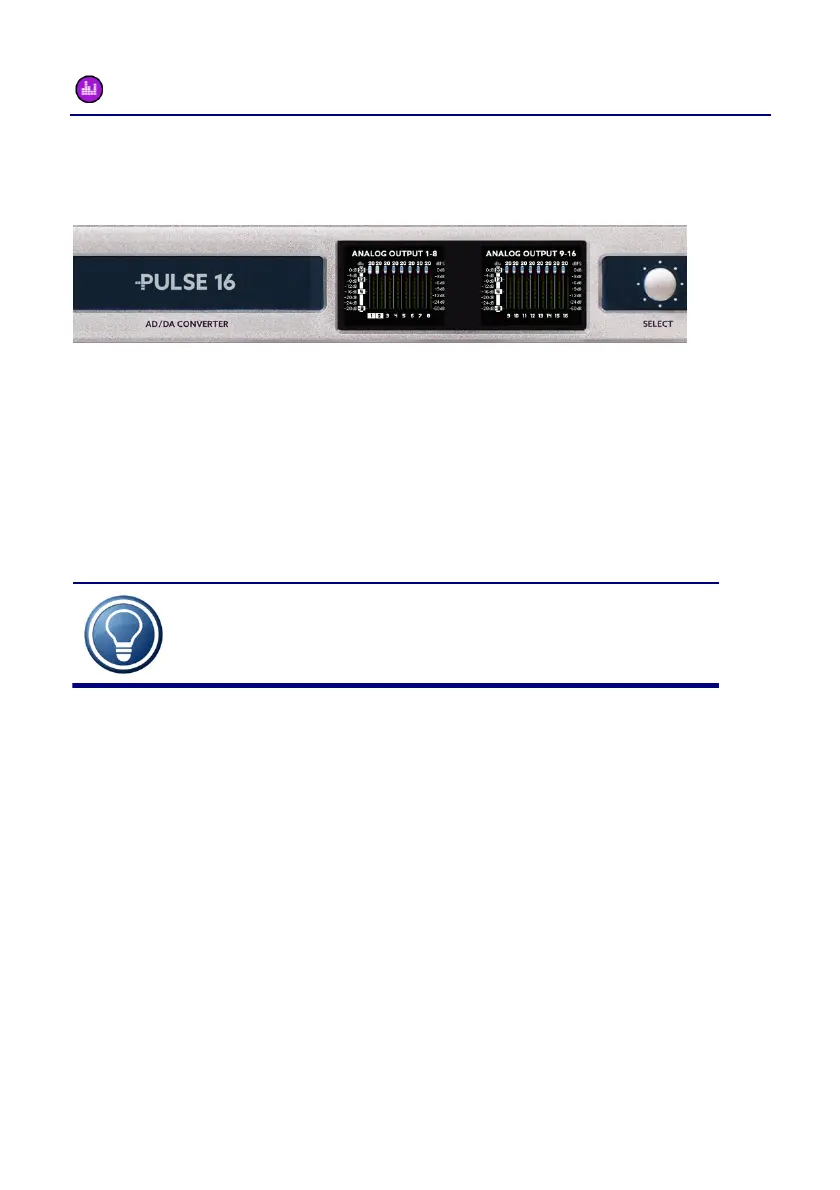

The LEVELS screen is similar to the GAINS screen described before.
Same as with the inputs also the outputs can be adjusted in 1dB steps
between -8dBu to +20dBu.
.
The dB scale on the right side shows the resolution of the metering
levels. This scale does not show the level value of the fader!
The number above the fader shows the maximum level in dBu, which
the output is able to give out. When the fader is set to 20 like shown in
the picture above, the output of a digital signal with 0dBFS will be
+20dBu on the analog output.
The value of -8dBu is chosen on purpose, because it’s
close to the level of analog consumer gear (-10dBV =
-7.78dBu)
