MACHINE INSTALLATION
PACKING AND STORAGE
All the models are provided with their own specific cardboard boxes.
The units must be moved by hand.
The box containing the unit gives instructions about how to handle the machine cor-
rectly when it is stored and installed.
The machine must be stored at a temperature between -25°C and 55°C.
NOTE. Do not dispose of the packing materials in the environment.
Once you have decided where to install the unit (consult the relative sections of this
manual), proceed by unpacking it in the following way:
1. Cut off the two nylon straps.
2. Open the top side of the box.
3. Take hold of the unit and lift it fully out of the box.
4. Remove the side protections and take off the nylon wrapping.
UNITS OPENING
1. Remove the screws and take off the front panel.
2. Procede with the installation on procedure.
3. Close everything.
ELECTRICAL CONNECTIONS
If the unit is supplied with a plug, as indicated on the wiring diagrams, it is con-
nected by simply inserting the plug of the interior unit into a mains socket.
The
exterior unit draws its power from the interior one.
Comply with the instructions given in the “Electrical connections” section for the
other units.
NOTE: The power cable’s socket must be equipped with a regulation ground con-
tact so as to comply with the indications in the technical specifications table.

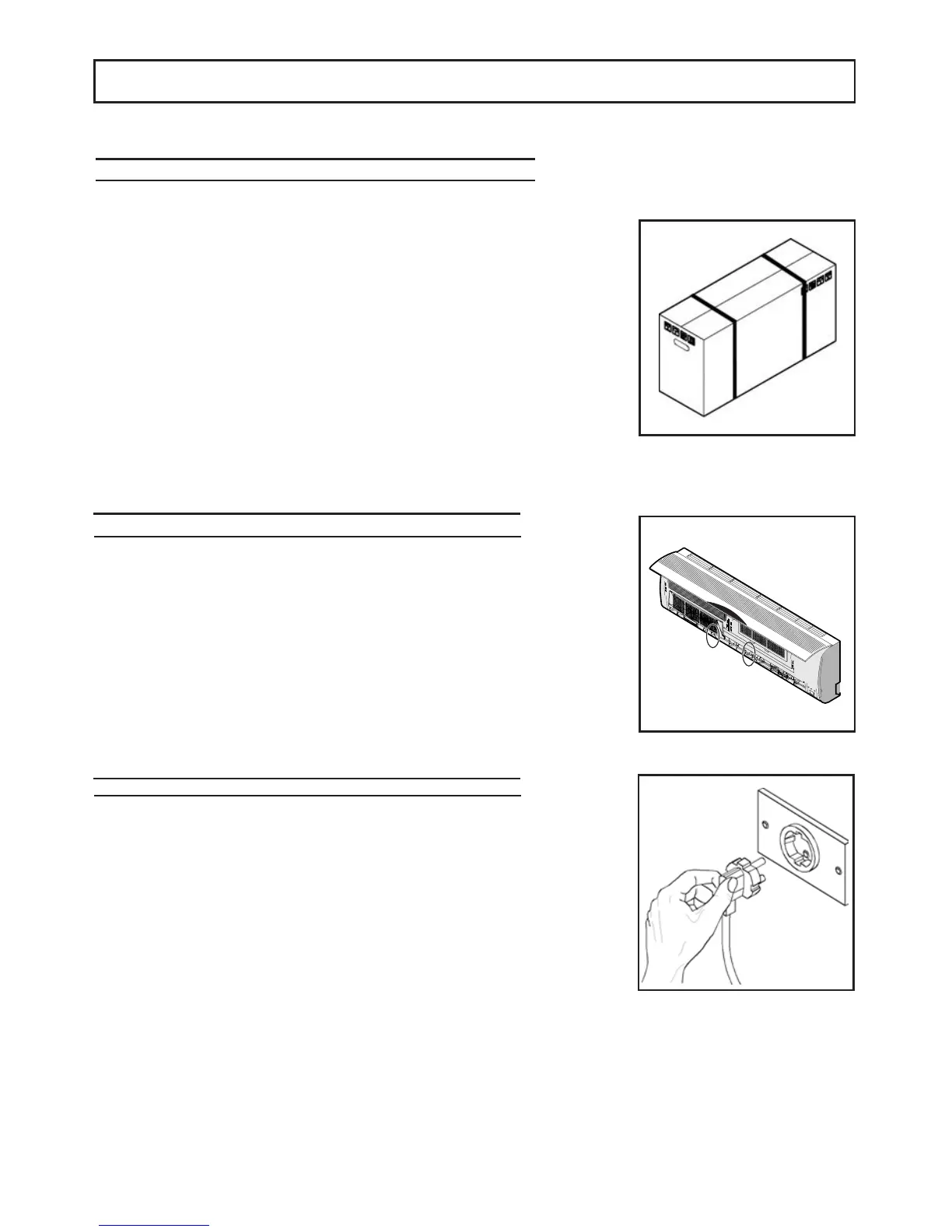

Fig.2
Fig.1
Fig.3
