DIVAPROJECT F24
10
IT
cod. 3541F161 - Rev. 00 - 05/2014

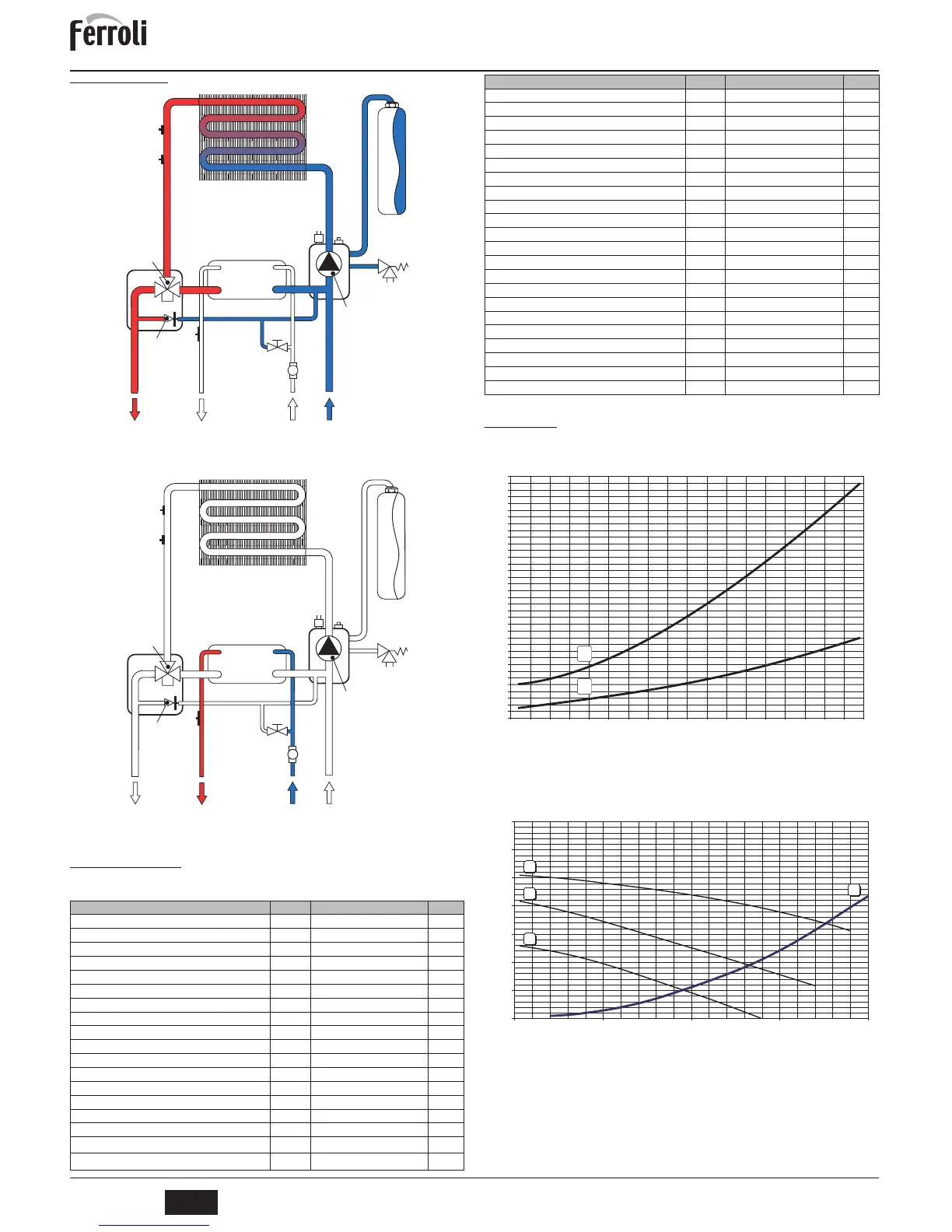

5.3 Schemi idraulici
fig. 19 - Circuito Riscaldamento
fig. 20 - Circuito Sanitario
5.4 Tabella dati tecnici
Nella colonna a destra viene indicata l’abbreviazione utilizzata nella targhetta dati tecnici.
5.5 Diagrammi
Diagrammi pressione - potenza
A = GPL - B = METANO
Perdite di carico / prevalenza circolatori
A = Perdite di carico caldaia - 1,2 e 3 = Velocità circolatore
Dato Unità DIVAPROJECT F24
Portata termica max riscaldamento kW 25.8 (Q)
Portata termica min riscaldamento kW 8.3 (Q)
Portata termica max sanitario kW 25.8 (Q)
Portata termica min sanitario kW 8.3 (Q)
Potenza Termica max riscaldamento kW 24.0 (P)
Potenza Termica min riscaldamento kW 7.2 (P)
Potenza Termica max sanitario kW 24.0
Potenza Termica min sanitario kW 7.2
Rendimento Pmax (80-60°C) % 93.0
Rendimento 30% % 90.5
Classe di emissione NOx - 3 (<150 mg/kWh) (NOx)
Ugelli bruciatore G20 n° x Ø 11 x 1.35
Pressione gas alimentazione G20 mbar 20
Pressione gas max al bruciatore G20 san. mbar 12.0
Pressione gas max al bruciatore G20 risc.. mbar 12.0
Pressione gas min al bruciatore G20 mbar 1.5
Portata gas max G20 risc.
nm
3
/h
2.73
Portata gas min G20
nm
3
/h
0.88
56
27
14
32
38
1110 8
9
95
241 42
114 36
194
49
34
74
56
27
14
32
38
1110 8
9
95
241 42
114 36
194
49
34
74
Ugelli bruciatore G31 n° x Ø 11 x 0.79
Pressione gas alimentazione G31 mbar 37
Pressione gas max al bruciatore G31 san. mbar 35.0
Pressione gas max al bruciatore G31 risc.. mbar 35.0
Pressione gas min al bruciatore G31 mbar 5.0
Portata gas max G31 risc. kg/h 2.00
Portata gas min G31 kg/h 0.65
Pressione max esercizio riscaldamento bar 3 (PMS)
Pressione min esercizio riscaldamento bar 0.8
Temperatura max riscaldamento °C 90 (tmax)
Contenuto acqua riscaldamento litri 1.0
Capacità vaso di espansione riscaldamento litri 8
Pressione precarica vaso di espansione riscaldamento bar 1
Pressione max di esercizio sanitario bar 9 (PMW)
Pressione min di esercizio sanitario bar 0.25
Portata sanitaria
'
t 25°C l/min 13.7
Portata sanitaria
'
t 30°C l/min 11.4 (D)
Grado protezione IP X5D
Tensione di alimentazione V/Hz 230V/50Hz
Potenza elettrica assorbita W 110
Peso a vuoto kg 32
Tipo di apparecchio
Dato Unità DIVAPROJECT F24
A
8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
35
30
25
20
15
10
5
kW
mbar
B
0
1
2
3
4
5
6
7
0 500 1.000 1.500 2.000
Q [l/h]
H [m H
2
O]
A
3
2
