ECONCEPT TECH 25 C
17EN
cod. 3540I371 - 06/2008 (Rev. 00)
Table. 4 - Accessories
Connection to collective flues

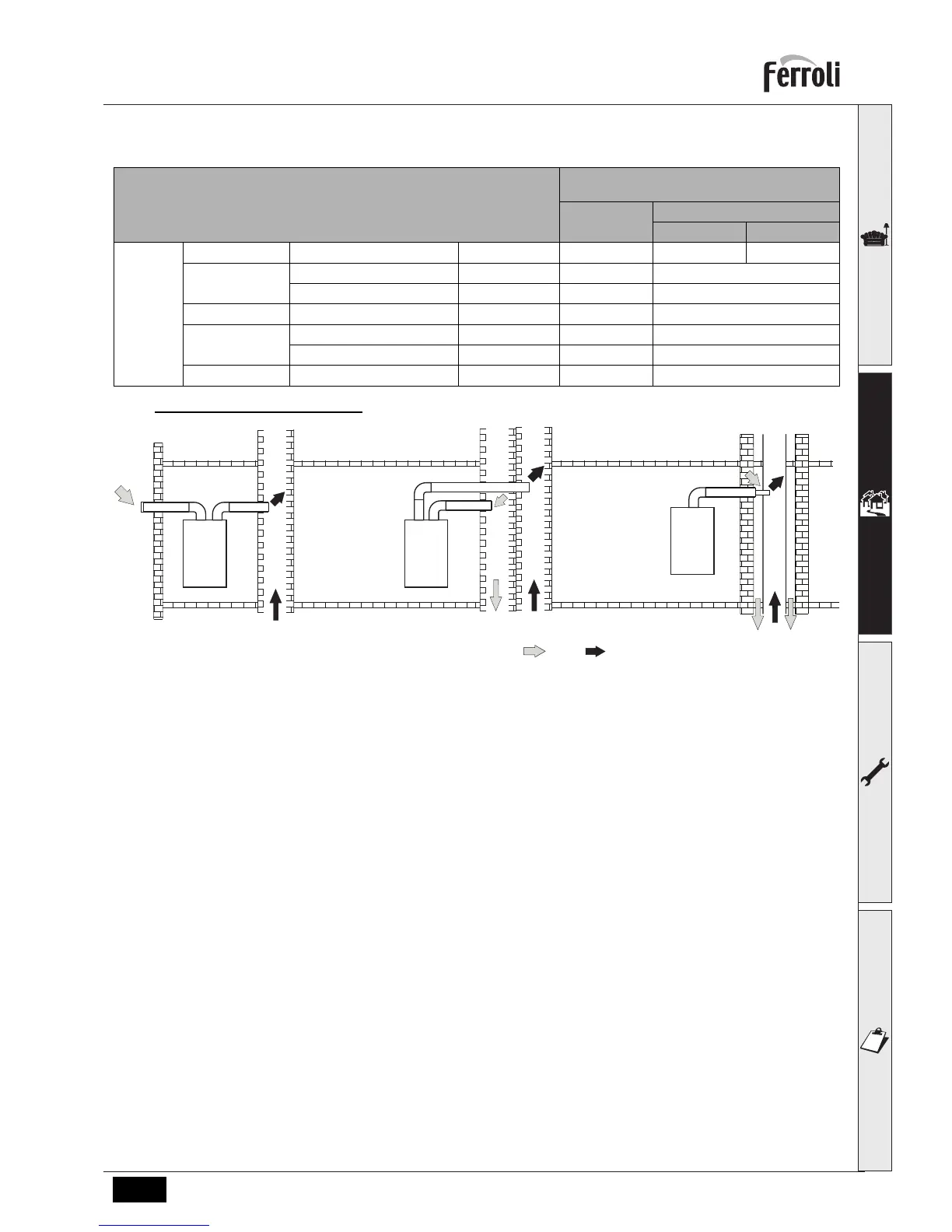

fig. 24 - Examples of connection to flues ( = Air / = Fumes)
If you are then going to connect the ECONCEPT TECH 25 C boiler to a collective flue or a single flue with natural
draught, the flue must be expressly designed by professionally qualified technical personnel in conformity with the cur-
rent standards and be suitable for airtight chamber units equipped with a fan.
In particular, flues must have the following characteristics:
• Be sized according to the method of calculation stated in the current standards.
• Be airtight to the products of combustion, resistant to the fumes and heat and waterproof for the condensate.
• Have a circular or quadrangular cross-section, with a vertical progression and with no constrictions.
• Have the ducts conveying the hot fumes adequately distanced or isolated from combustible materials.
• Be connected to just one unit per floor.
• Be connected to just one type of unit (or all and only forced draught units or all and only natural draught units).
• Have no mechanical suction devices in the main ducts.
• Be at a lower pressure, all along their length, under conditions of stationary operation.
• Have at their base a collection chamber for solid materials or condensation equipped with a metal door with an air-
tight closure.
Losses in m
eq
Air
inlet
Fume exhaust
Vertical Horizontal
Ø 80 PIPE 1 m M/F 1KWMA83W 1.0 1.6 2.0
BEND 45° M/F 1KWMA65W 1.2 1.8
90° M/F 1KWMA01W 1.5 2.0
PIPE SECTION with test point 1KWMA70W 0.3 0.3
TERMINAL air, wall 1KWMA85A 2.0 -
fumes, wall with antiwind 1KWMA86A - 5.0
FLUE Split air/fumes 80/80 1KWMA84U - 12.0
C
83
C
43
C
43
