5
English DeutschItaliano Français Español
Português Nederlands
Dansk Türkçe
GN2 N
Cod. 35441226 - 01/2012 (Rev. 00)
E F
G
H
I
L
M
NO
P
Q
D
B
A
B
A
B
A
A
B
B
A
B
A
A
A
A

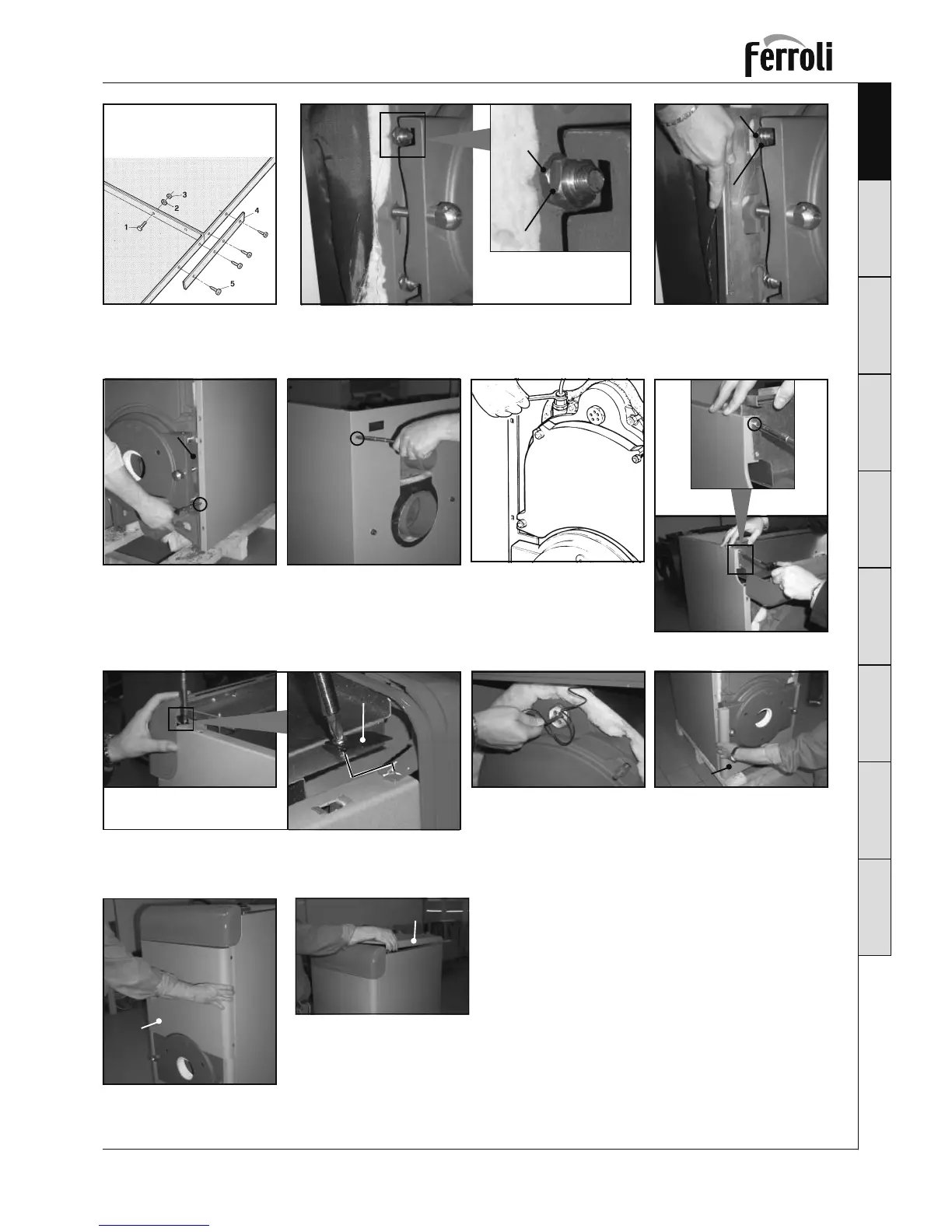

D Connect the panels together, using the screws 1, the washers 2 and the nuts 3,
reinforcing the bottom parts using the blades 4 fastened with the screws 5.
E Loosen the nuts “A”.
F Insert the side fastening bracket “A” between nuts “A” and “B”.
G Fit the side to the bracket “A” and fasten it using the screws “B” (right side view). Repeat the
operations in point G for the left side.
H Fasten the sides to the rear wall “A” using the screws “B”.
I Unwind the hydrometer capillary tubing and tighten its connector to the sheathing on the front
of the boiler body.
L Fit the wiring protection case “A” using the screws “B” on the sides.
M Fit the control panel to the sides using the tabs “A”. Place the
reinforcement spring “B” between the head of the screw and
the tab.
N Insert the 3 bulbs (safety thermostat, boiler thermostat and
thermohydrometer).
O Fit the lower front panel “A”.
P Fit the upper panel “A”.
Q Fit the top cover or covers “A”, according to the length of the boiler (see table 1, sequence C).
