Audio Input
Audio Output
Three - pedal
Damper pedal
Audio Output Connector
1. Before connecting the external audio signal to this product, please make
sure to lower the volume of the audio source device first, and then adjust the
volume back to your own satisfaction after the connection is completed.
2. Both ends of the standard plug (eg: MP3) or one end of the standard plug at
the other end of the two pin plug (eg: DCD) cable, the audio output device and
digital piano connection, turn on the audio device and the product's power
switch can be in the digital piano to play the music on the audio device, you
can also play the music while playing.
1. Before connecting the audio amplifier, please make sure to turn down the
volume of the digital piano first, and then turn the volume back to your
satisfaction after connection.
2. Connect the left and right channels of the digital piano to the audio
amplifier with the audio cable (i.e. DVD audio cable) that has two pin plugs at
both ends.
Note:
1.When connecting to an audio amplifier, turn down the volume of the digital
piano.
2.When connecting the digital piano to an audio amplifier, please turn down
the volume of the digital piano and adjust the output volume on behalf of the
amplifier's controller.
(Right) After depressing the damper pedal, notes will be extended; After
releasing, the portamento effect is closed immediately.
According to the traditional grand piano, the electronic piano is
manufactured. t adopts a damper pedal, a sostenuto pedal and a soft pedal
which are same to that of the traditional grand piano.
Step on the pedal to open; Release the pedal to close.
Please connect the pedal cord to the pedal connector at the bottom of the
piano.
Note:
The standard plug connected to the digital piano must be a stereo plug, and
the other end depends on the output connector of the audio source used, so as
to ensure dual-channel input to the digital piano. Either end of the connection
does not meet this requirement will result in mono input.
AUDIO IN
USB MIDI
AUDIO OUT
DC 15V
AUDIO IN
USB MIDI
AUDIO OUT
DC 15V

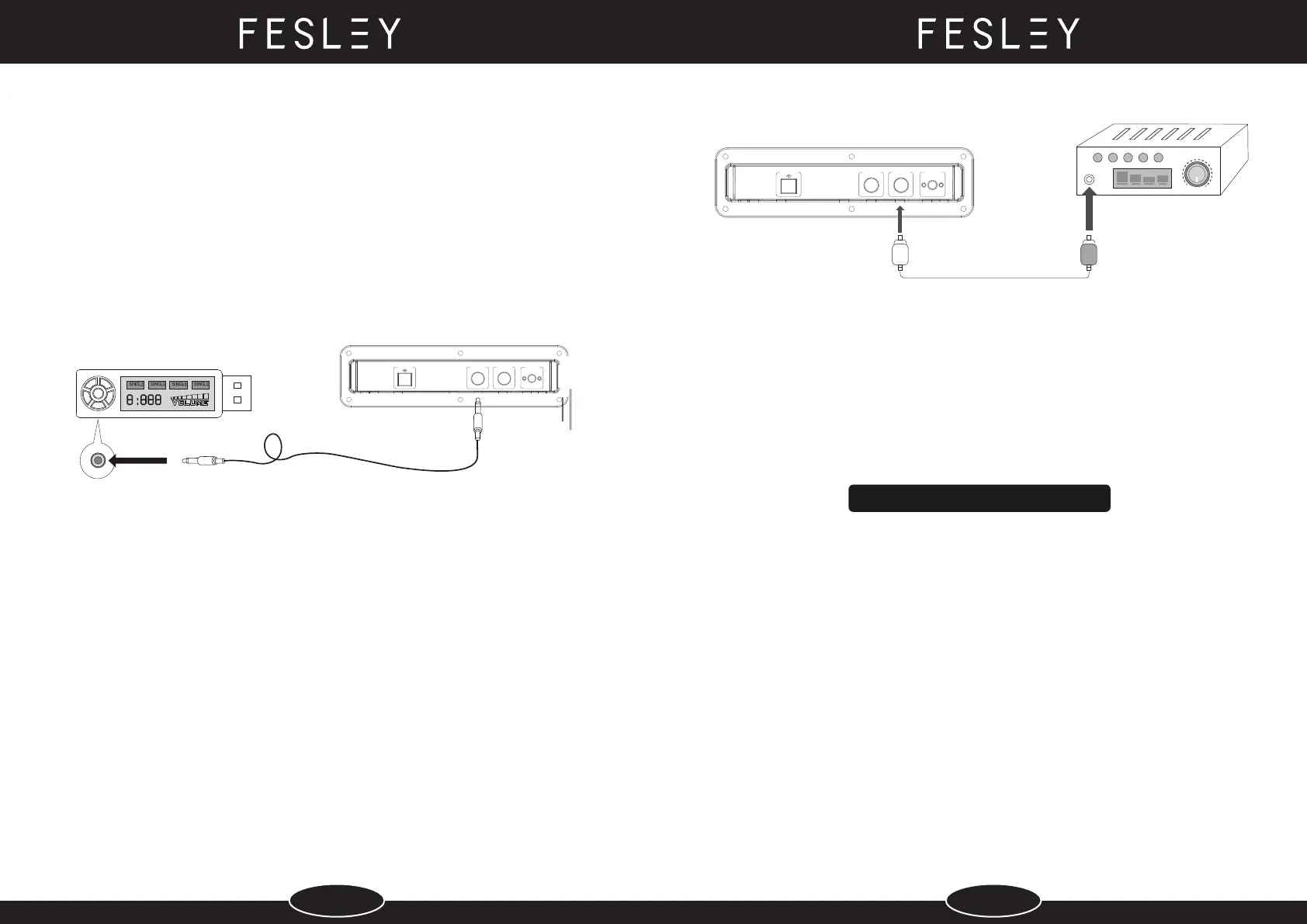

MP3/audio Device
Audio Input Connector
THREE PEDALINTERFACE
7 8
