Valve terminals type 32 MPA
Peripherals overview
Valve terminal with multi-pin plug connection
Order code:
• 32P- … for the pneumatic
components
• 32E-… for the electrical
components
MPA valve terminals with multi-pin
plug connection can be expanded by
up to 24 solenoid coils.
The multi-pin plug connection is
designed as a removable 25-pin
Sub-D connection to IP65 .
Thecablecanbeselectedwhen
ordering:
• 2.5 m
• 5m
• 10 m
Each can be used for max. 8 or
24 valves.
1
2
3
4
5
6 7

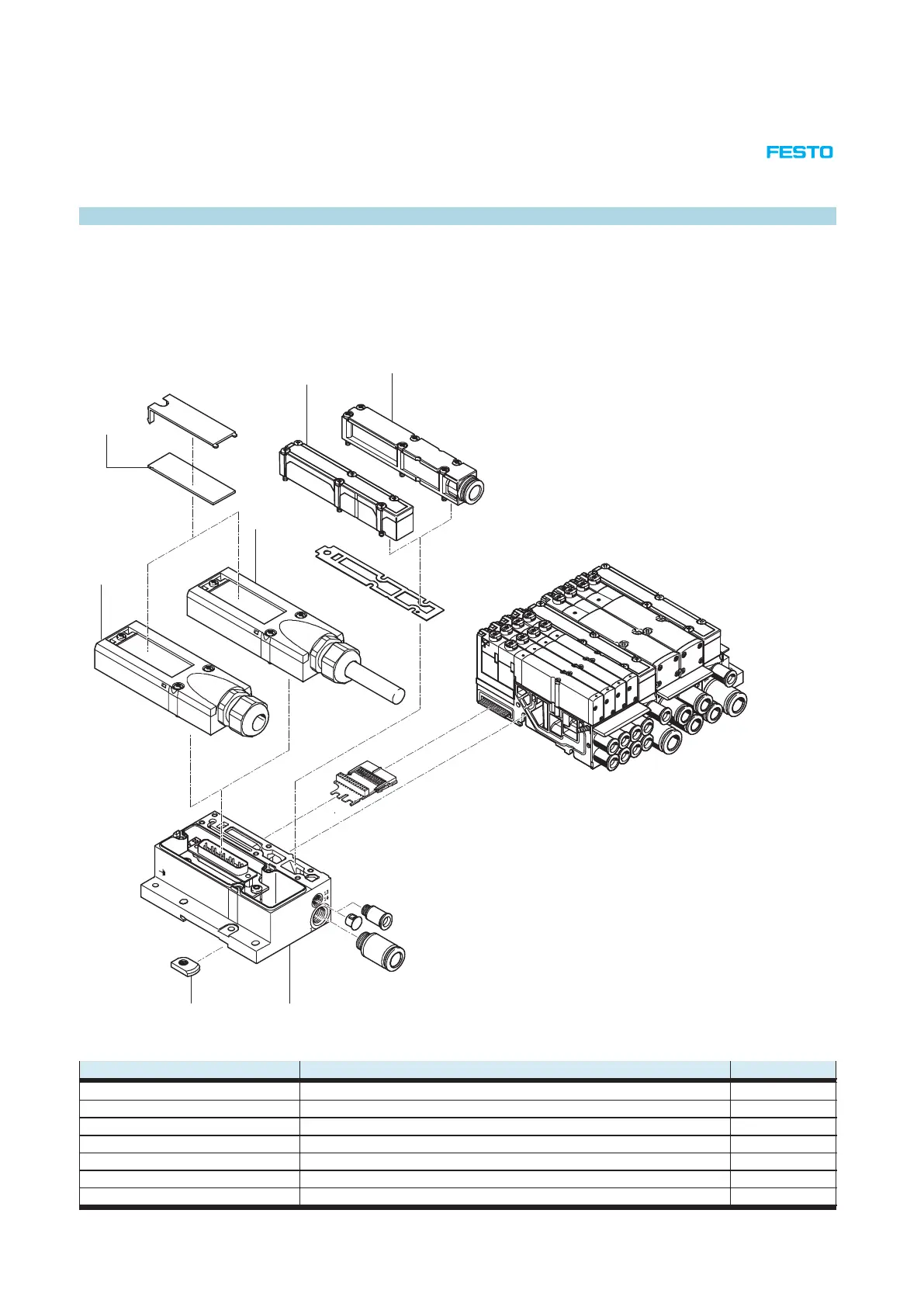

Designation Brief description Page/Internet
1 Inscription labels Large, for multi-pin plug connection –
2 Flat plate silencer For pneumatic interface –
3 Exhaust plate For ducted exhaust ai r 74
4 Multi-pin plug connection For self-assembly 75
5 Multi-pin plug connection With multi- pin cable 75
6 H-rail mounting – 71
7 Electrical interface For multi- pin plug 72
