2009/06 – Subject to change
17
 Internet: www.festo.com/catalogue/...
Valve terminals type 32 MPA
Peripherals overview

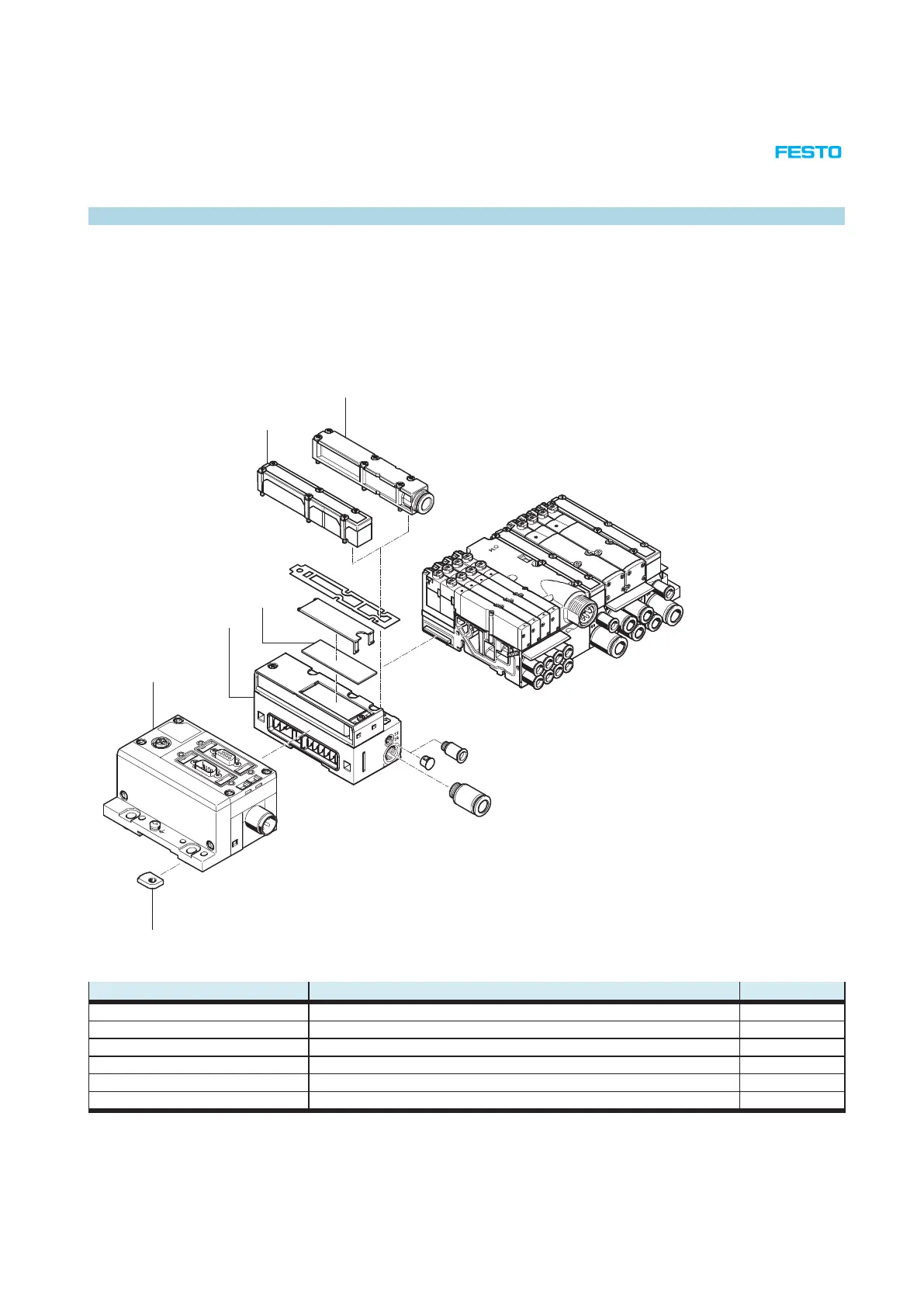

Valve terminal with fieldbus connection, control block (electrical peripherals C PX)
Order code:
• 32P- … for the pneumatic
components
• 50E-… for the electrical
components
Valve terminals with fieldbus inter-
faces can be configured with up to
16 manifold blocks. In conjunction
with MPA1 and 8 solenoid coils per
manifold block, up to 128 solenoid
coils can thus be equipped. An MP A2
with 4 solenoid coils per manifold
block can actuate 64 solenoid coils.
Each valve position can be equipped
with any v alve or a blank ing plate. The
rules for CPX apply to the equipment
that can be used in combination with
the electrical peripherals CPX.
In general:
• Digital inputs/outputs
• Analogue inputs/outputs
• Parameterisation of inputs and
outputs
• Integrated multi-featured
diagnostic system
• Preventive maintenance concepts
3
1
2
4
6
5
Designation Brief description  Page/Internet
1 Flat plate silencer For pneumatic interface –
2 Exhaust plate For ducted exhaust ai r 74
3 CPX modules – –
4 Pneumatic interface For CPX modules 72
5 Inscription label Large, for pneumatic interface CPX –
6 H-rail mounting – 71
