Valve terminals type 32 MPA
Peripherals overview
Individual sub-base size 1
Ordering:
• Using individual part numbers
Individual sub-base s can be equipped
with any valve.
The electrical connection is estab-
lished using a standard 4-pin M8 plug
(EN 60947-5-2).

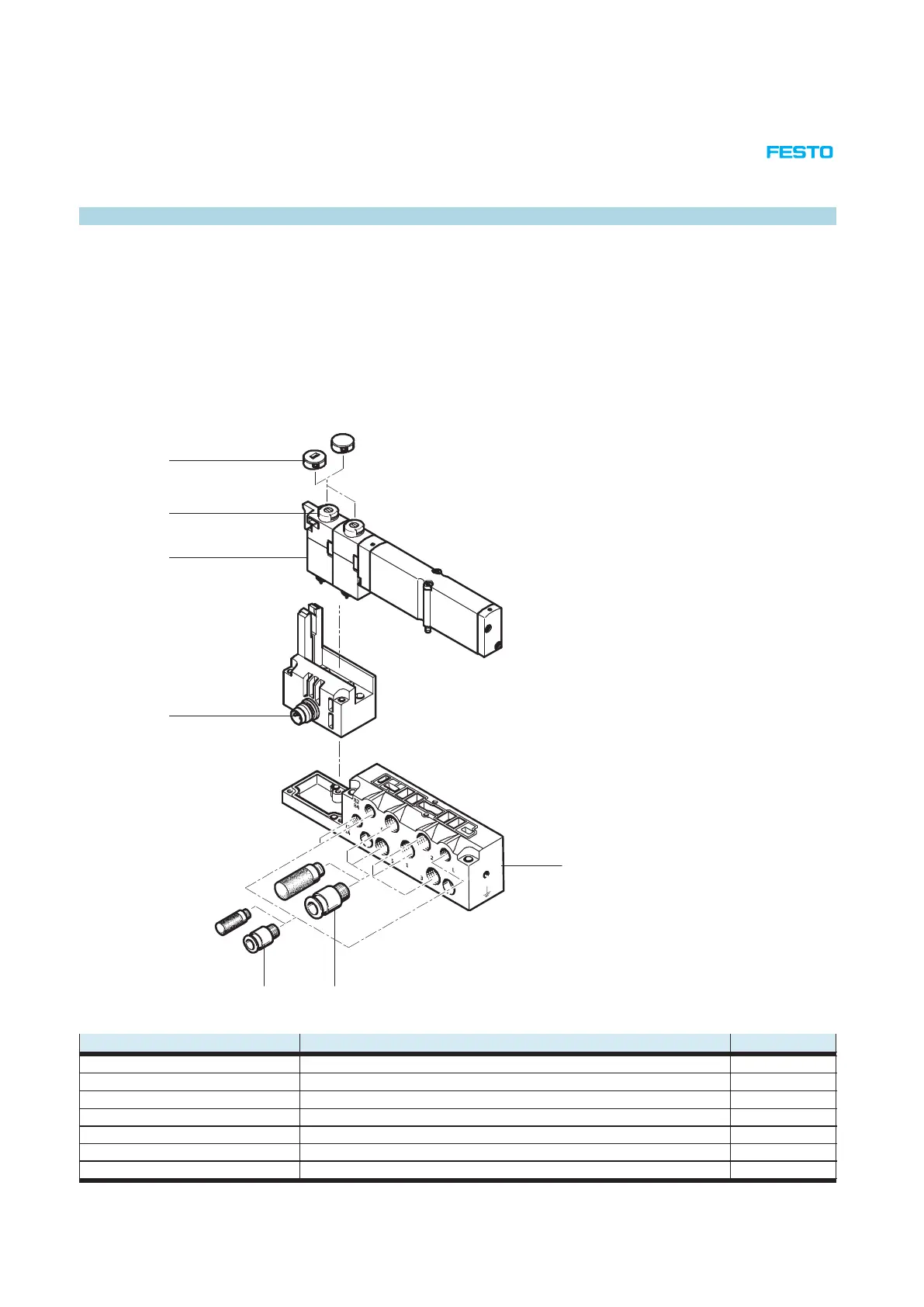

3
2
1
7
6 5
4
Designation Brief description  Page/Internet
1 Solenoid valve MPA1 69
2 Manual override Non-detenting/turning with detent, per solenoid coil –
3 Cover cap for manual override Conversion from detenting/non- detenting to non-detenting or covered 74
4 Sub-base For individual valve MPA1 71
5 Fittings and/or silencers M7 for working lines (2, 4) and work air supply/exhaust ports (1, 3, 5) 76
6 Fittings, silencers or blanking plugs M5 for pilot air supply/pilot exhaust air (12/14, 82/84) and pressure compensation 76
7 Electrical connection M8 4-pin –
