Valve terminals type 32 MPA
Peripherals overview
Individual sub-base size 2
Ordering:
• Using individual part numbers
Individual sub-base s can be equipped
with any valve.
The electrical connection is estab-
lished using a standard 4-pin M8 plug
(EN 60947-5-2).
An adjustable pressure regulator can
be installed between the manifold
block and the valve in order to control
the force of the triggered actuator.

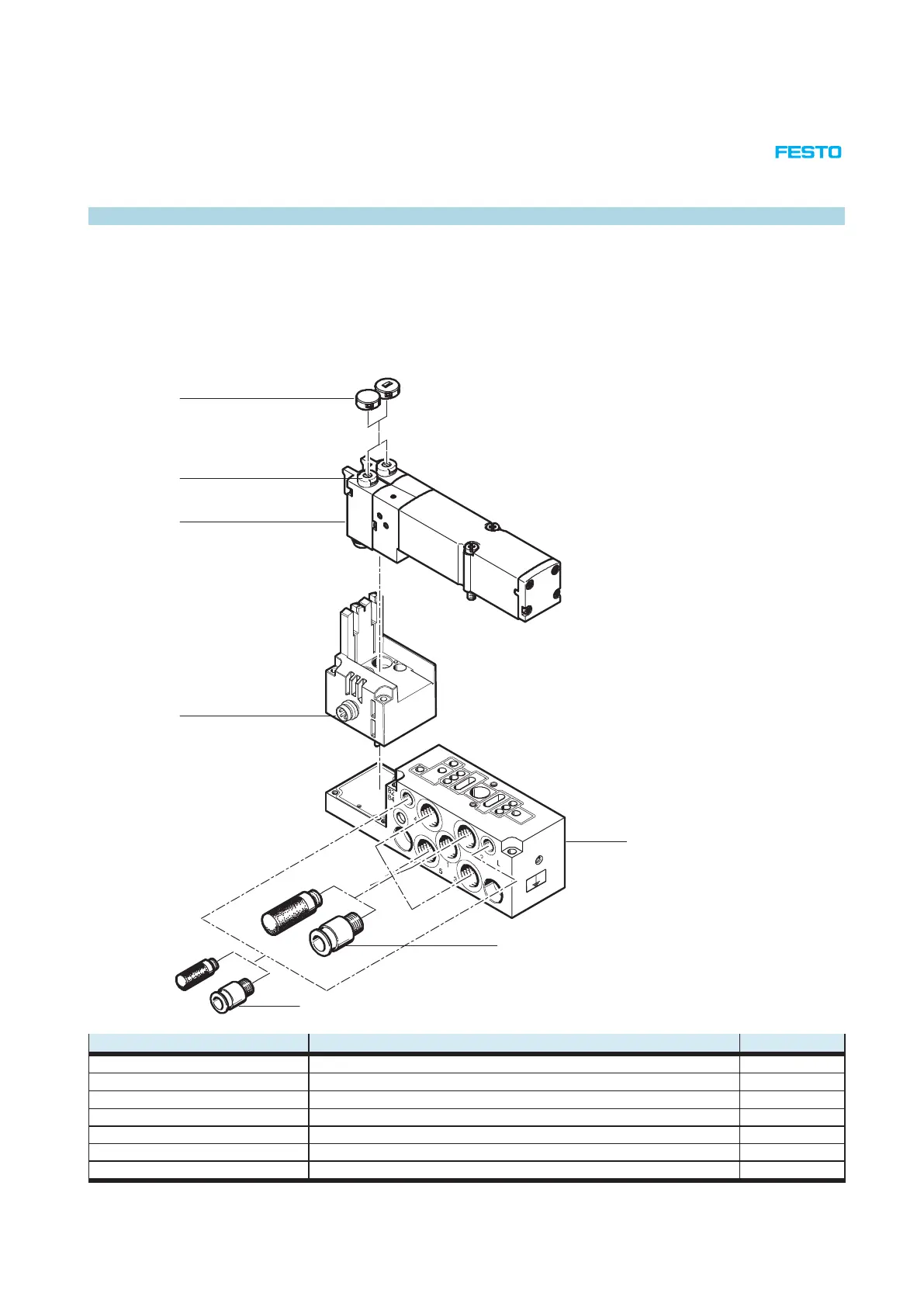

4
3
2
1
7
6
5
Designation Brief description Page/Internet
1 Solenoid valve MPA2 69
2 Manual override Non-detenting/turning with detent, per solenoid coil –
3 Cover cap for manual override Conversion from detenting/non-detenting to non- detenting or covered 74
4 Sub-base For individual valve MPA2 71
5 Fittings and/or silencers Gx For working lines (2, 4) and work air supply/exhaust ports (1, 3, 5) 76
6 Fittings, silencers or blanking plugs M5 For pilot air supply/pilot exhaust air (12/14, 82/84) and pressure compensation 76
7 Electrical connection M8 4-pin –
