2.4 Orientation designations

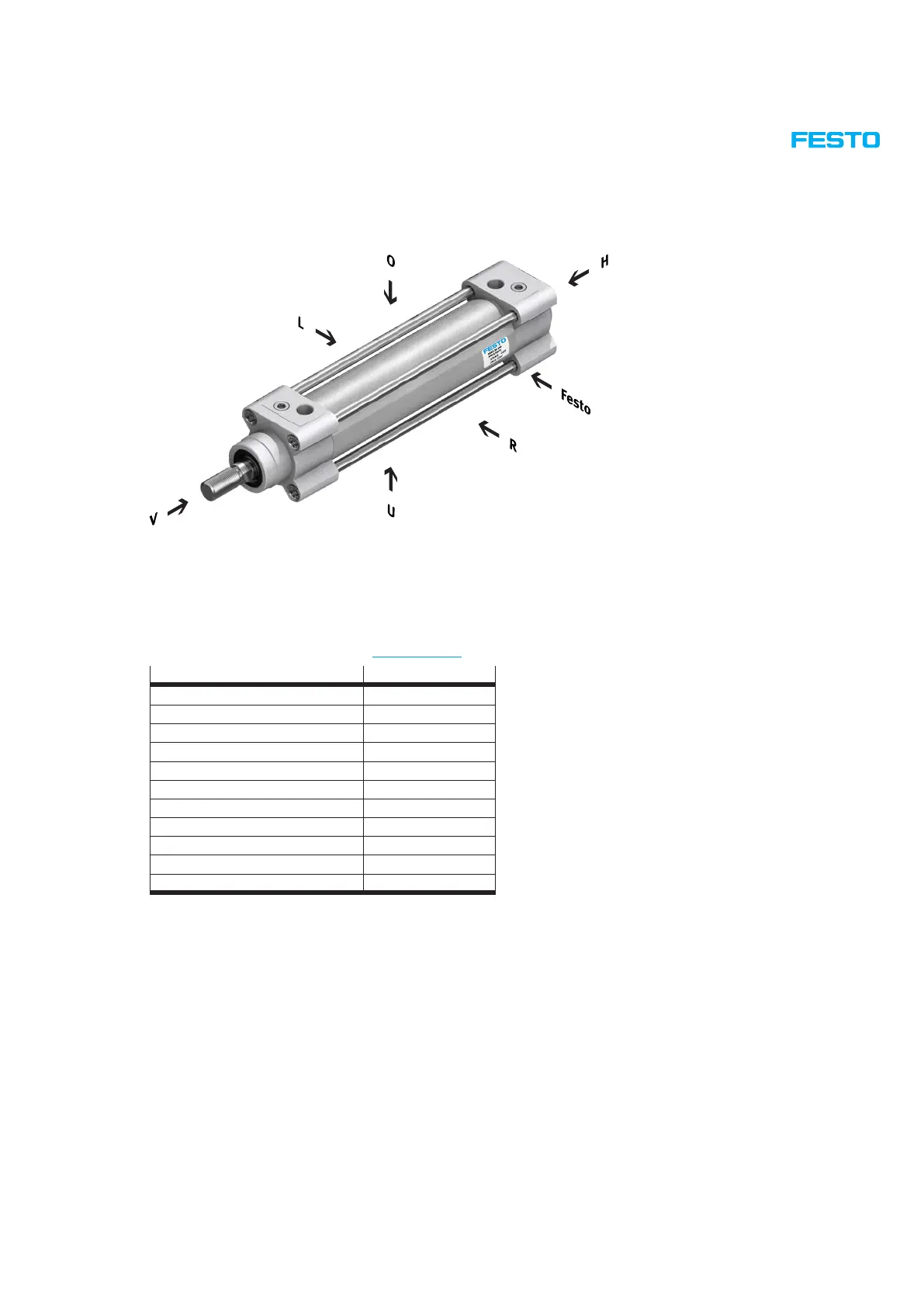

This illustration provides an overview of the orientation designations of the ISO cylinder.
Festo=Product identication (rating
plate) as reference point
O = top
U = bottom
R = right
L = left
V = front
H = rear
2.5 Sizes and part numbers
You will nd the complete overview of features, accessories, type codes, technical data and dimensions in the product
catalogue or on the Festo website ( www.festo.com).
Size Module number
DSBG-...-32- - 1634484
DSBG-...-40- - 1645477
DSBG-...-50- - 1646707
DSBG-...-63- - 1646738
DSBG-...-80- - 1646769
DSBG-...-100- - 1646799
DSBG-...-125- - 2045493
DSBG-...-160- - 2036032
DSBG-...-200- - 2344936
DSBG-...-250- - 2732003
DSBG-...-320- - 2776472
