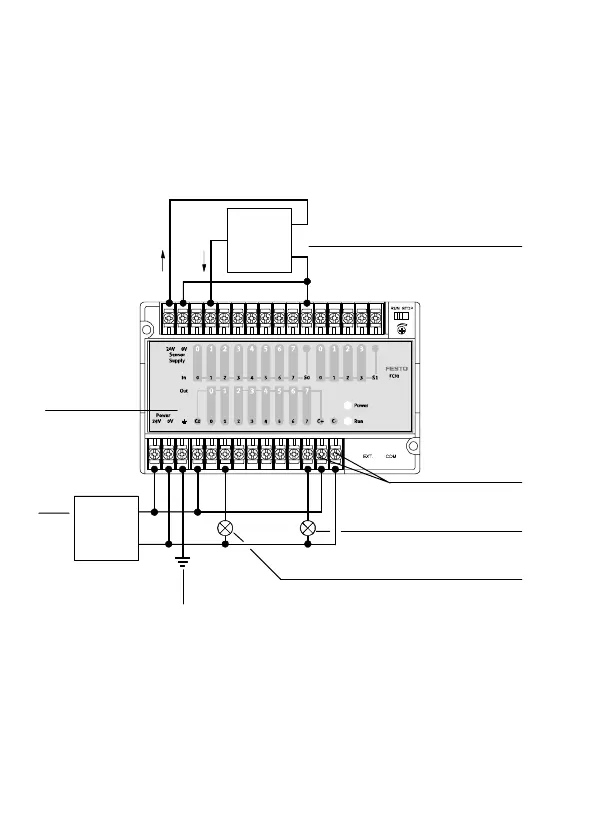

Connection example:
Input In 0.1; current-sinking
Output Out 0.1; switching voltage for relay outputs Out
0.0, 0.1, for transistor outputs Out 0.2 ... Out 0.7: 24 V DC
3
4
5
1
2
6
+
-
+
-
7
1
Sensor
2
C+, C- supply voltage
Transistor outputs
3
Actuator connected to tran-
sistor output
4
Actuator connected to
relay output
5
Functional earth
6
24 V DC power pack, e.g. PSE3
7
IPC FEC FC30
