3 Installation

Festo FED-… de 1107g

3-13

1 POWER

2 PLC PORT

3 AUX PORT

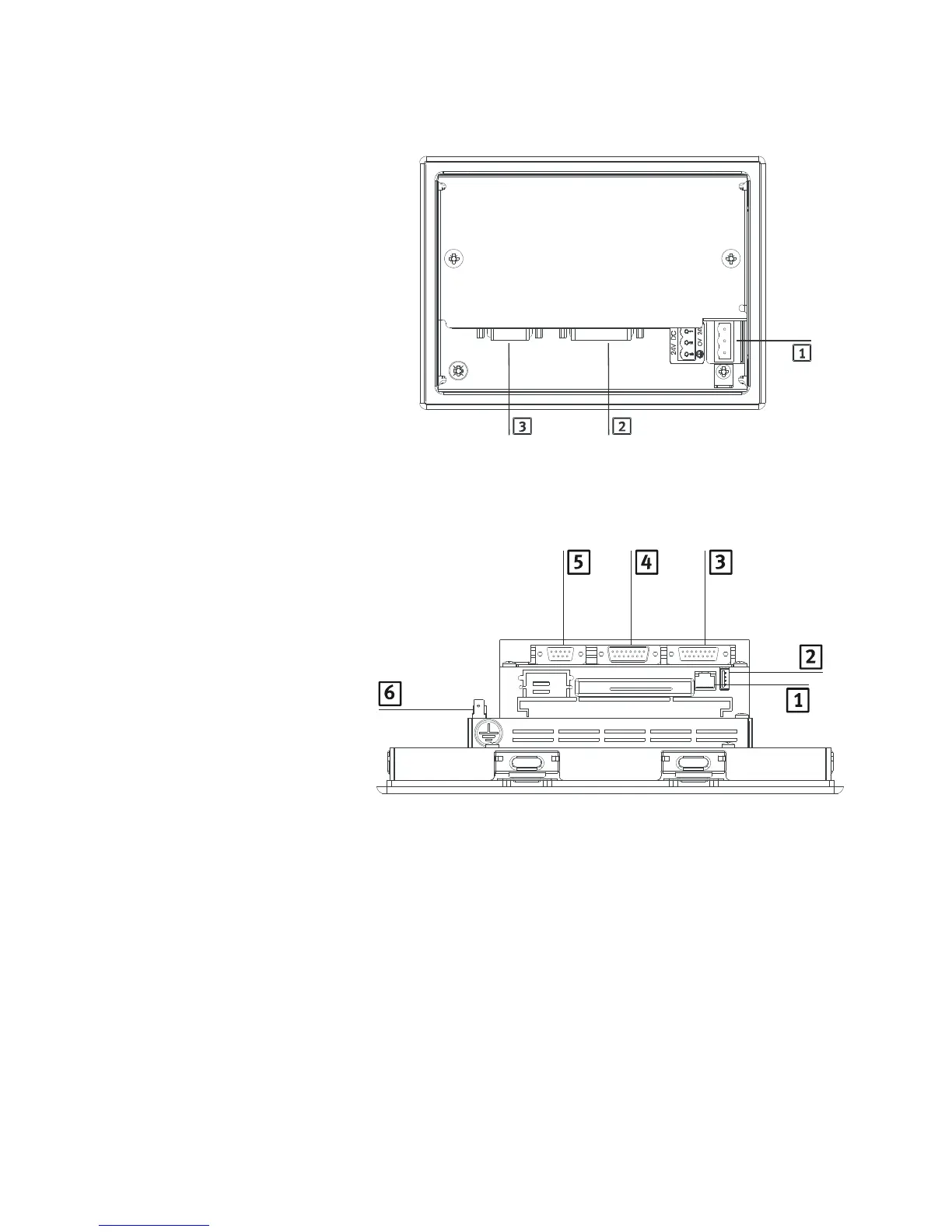

Bild 3/23: Anschlüsse FED-300

1 ETHERNET PORT

2 USB PORT

3 PC-PRINTER PORT

4 PLC PORT

5 AUX PORT

6 POWER

Bild 3/24: Anschlüsse FED-550, FED-700, FED-710, FED-1000, FED-1010, FED-2000, FED-

2010, FED-5000, FED-5010.
