3 Installation
3-1
Festo FED-... en 1107g
3 Installation
The FED operator panels are designed for front mounting. The
size, the front panel width and the cut-out dimensions for
each FED type are given on the following pages.
Please note
Remove the BATTERY PROTECTION strip before installation
3.1 Physical Dimensions
All measurements are given in mm, with tolerance ± 0.5.

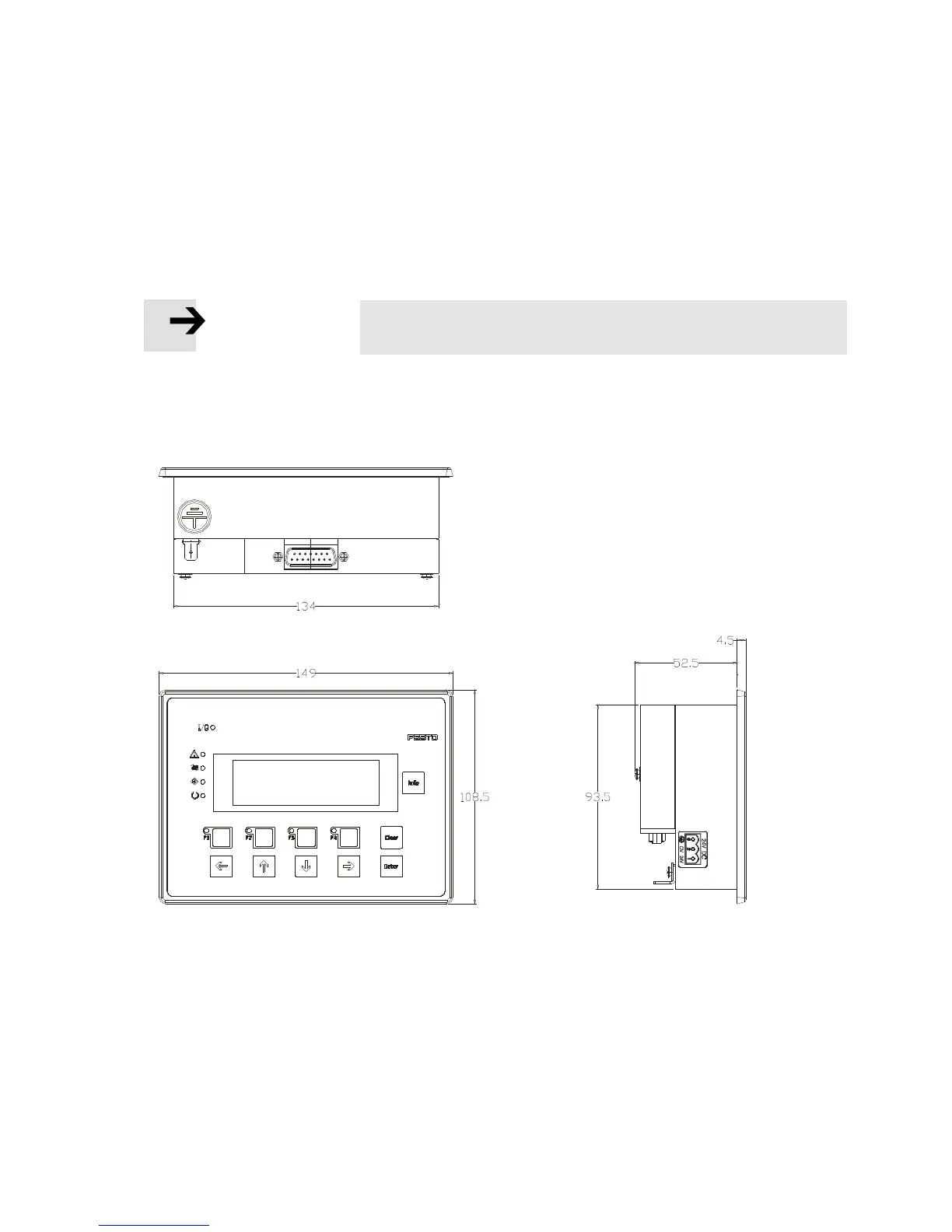

Fig 3/1: Dimensions for FED-40
