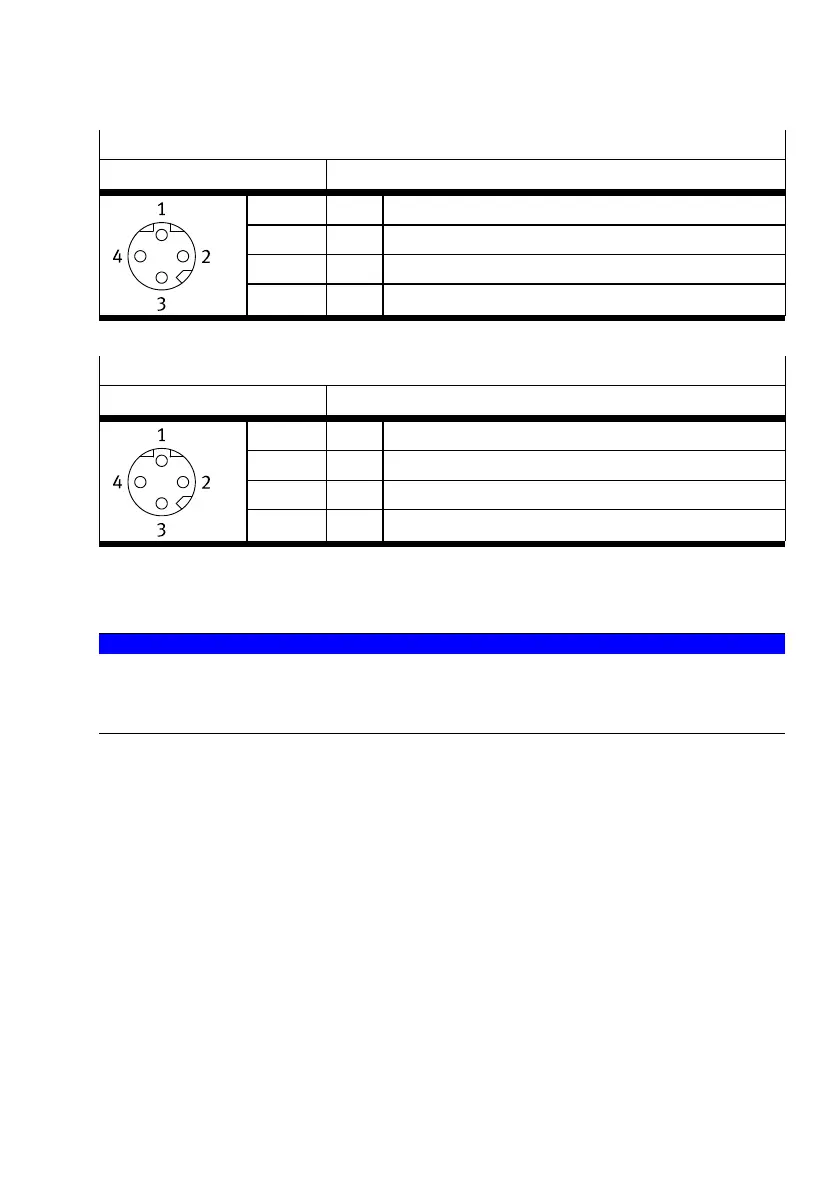

Connection for system communication [XF10]
Socket M8, 4-pin, D-coded Signal
1 TX– Transmitted data –
2 RX+ Received data +
3 TX+ Transmitted data +
4 RX– Received data –
Tab. 6 Connection for system communication
Connection for system communication [XF20]
Socket M8, 4-pin, D-coded Signal
1 RX– Received data –
2 TX+ Transmitted data +
3 RX+ Received data +
4 TX– Transmitted data –
Tab. 7 Connection for system communication
6 Assembly
NOTICE!
Damage to internal electronics.
Damage to components and malfunctions due to incorrect handling.
• Observe the handling specifications for electrostatically sensitive devices.
• Assemble in accordance with the "Assembly Instructions MPA" and the "Description MPAL-VI"
è 1.1 Applicable documents.
7 Installation
• Carry out the installation according to the "Instruction manual for automation system
CPX-AP"è 1.1 Applicable documents.
• Connect the earthing cable to the functional earth connection FE.
8 Commissioning
• Commission the automation system CPX-AP in accordance with the "Instruction manual for auto-
mation system CPX-AP" è 1.1 Applicable documents.
Assembly
7Festo — VMPAL-EPL-AP — 2019-08
