6 Domino DF 500 Tenon Joiner
Functional Description
The Domino DF 500 Tenon Joiner is used to cut mortises in
wood for floating tenon joinery. Mortise and tenon joinery
is one of the oldest and strongest methods of joining
pieces of wood together. The Domino tenon joiner greatly
simplifies the task of cutting mating mortises in
workpieces to be connected together. A rotating and
oscillating cutter sweeps across the workpiece to quickly
and effortlessly cut a uniform mortise, in which a Domino
floating tenon is inserted.

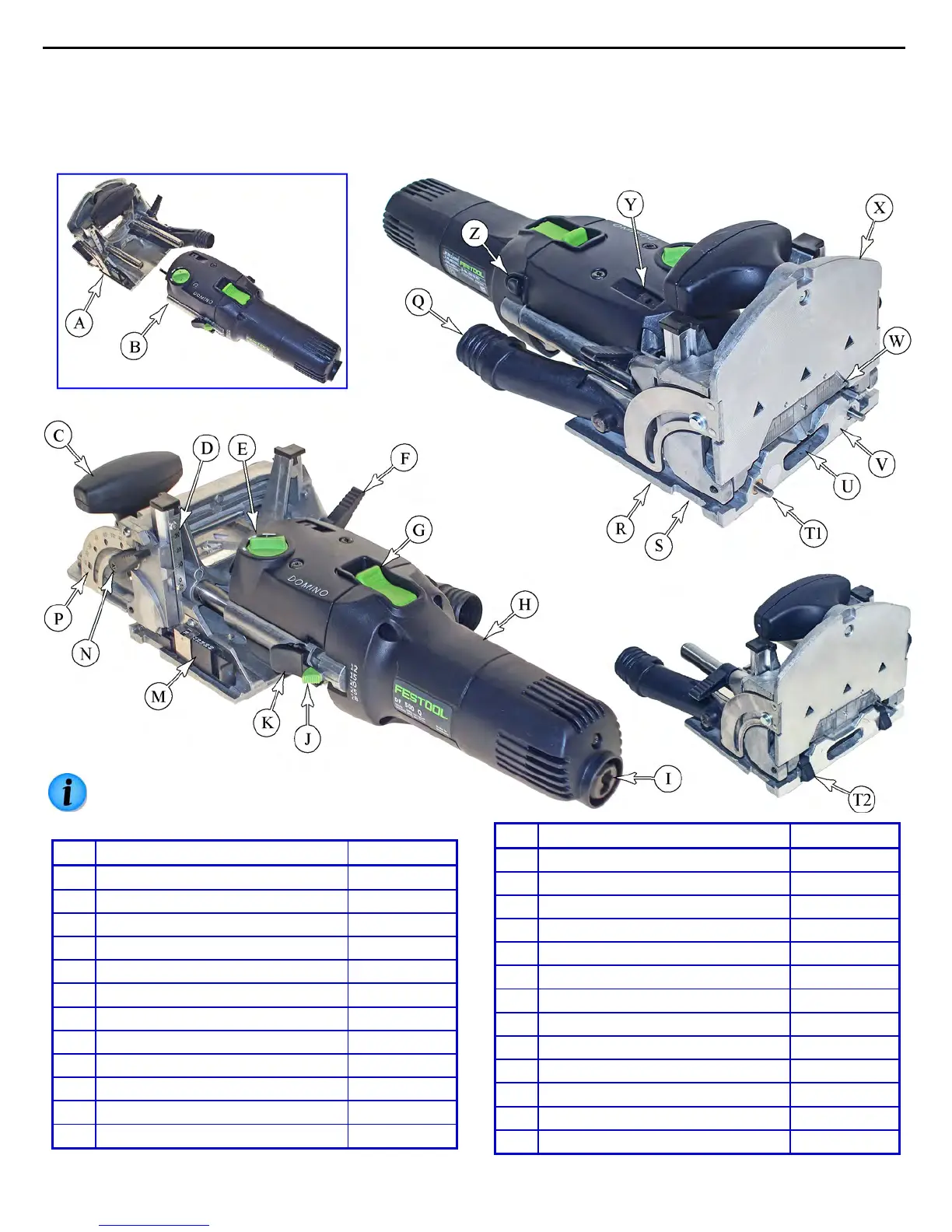

Item Name or Description Ref. Page(s)
A Fence Body 9, 20
B Motor Housing 9, 20
C Auxiliary Handle 14, 15
D Fence Height Gauge 8, 14, 15
E Mortise Width Dial 8, 13
F Fence Height Locking Lever 8
G Power Switch 11
H Main Handle (barrel grip) ---
I Plug It
®
Power Inlet 10
J Depth Adjust Lever 8
K Depth Adjust Lock 8
M Board Thickness Gauge 8
Item Name or Description Ref. Page(s)
N Fence Angle Locking Lever 7
P Fence Angle Gauge 7, 15
Q Dust Extraction Port 11
R Baseplate 7, 17
S Outrigger Mounting Slot 12
T1 Locating Pins (qty. 2) 9, 11
T2 Edge Stop Dogs (qty. 2) 9, 11
U Mortising Bit Throat Opening ---
V Friction Pads (qty. 2) 25
W Horizontal Position Gauge 22, 12, 15
X Adjustable Fence Face 7, 8, 15
Y Fence Body Release Lever 9
Z Spindle Lock 9
Note: For newer models, the
locating pins are replaced with Guide
Stop Dogs, as shown to the far right.

Festool Domino DF 500 Specifications

General

Power consumption	420 W
Max. routing depth	28 mm
Cutter diameter	4, 5, 6, 8, 10 mm
Dust extraction connection diameter	27 mm
Weight	3.2 kg
Voltage	230 V
Frequency	50/60 Hz
No-load speed	10, 000 rpm
Mitre routing	0° - 90°
Mortise depth	15 mm, 20 mm, 25 mm, 28 mm
