12
DF 700 EQ
GB
Original operating manual
The illustrations specified are located at the begin-
ning and end of the operating manual.
1Symbols
2Technical data
3 Machine features
4 Intended use
The machine is intended to create DOMINO dowel
connections in hard and soft wood, chipboard, ply-
wood and fibreboard. All applications beyond this
are regarded as unintended use.
The machine is designed and approved for use by
trained persons or specialists only.
The user is liable for improper or non-in-
tended use.
5 Safety instructions
5.1 General safety instructions
WARNING! Read all safety warnings and all
instructions.
Failure to follow the warnings
and instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for future ref-
erence.
The term "power tool" in the warnings refers to
your mains-operated (corded) power tool or bat-
tery-operated (cordless) power tool.
1 Symbols................................................ 12
2 Technical data ...................................... 12
3 Machine features.................................. 12
4 Intended use......................................... 12
5 Safety instructions ............................... 12
6 Operation.............................................. 13
7 Settings ................................................ 13
8 Working with the machine ................... 15
9 Service and maintenance..................... 16
10 Troubleshooting ................................... 16
11 Accessories .......................................... 17
12 Environment......................................... 17
13 EU Declaration of Conformity .............. 17

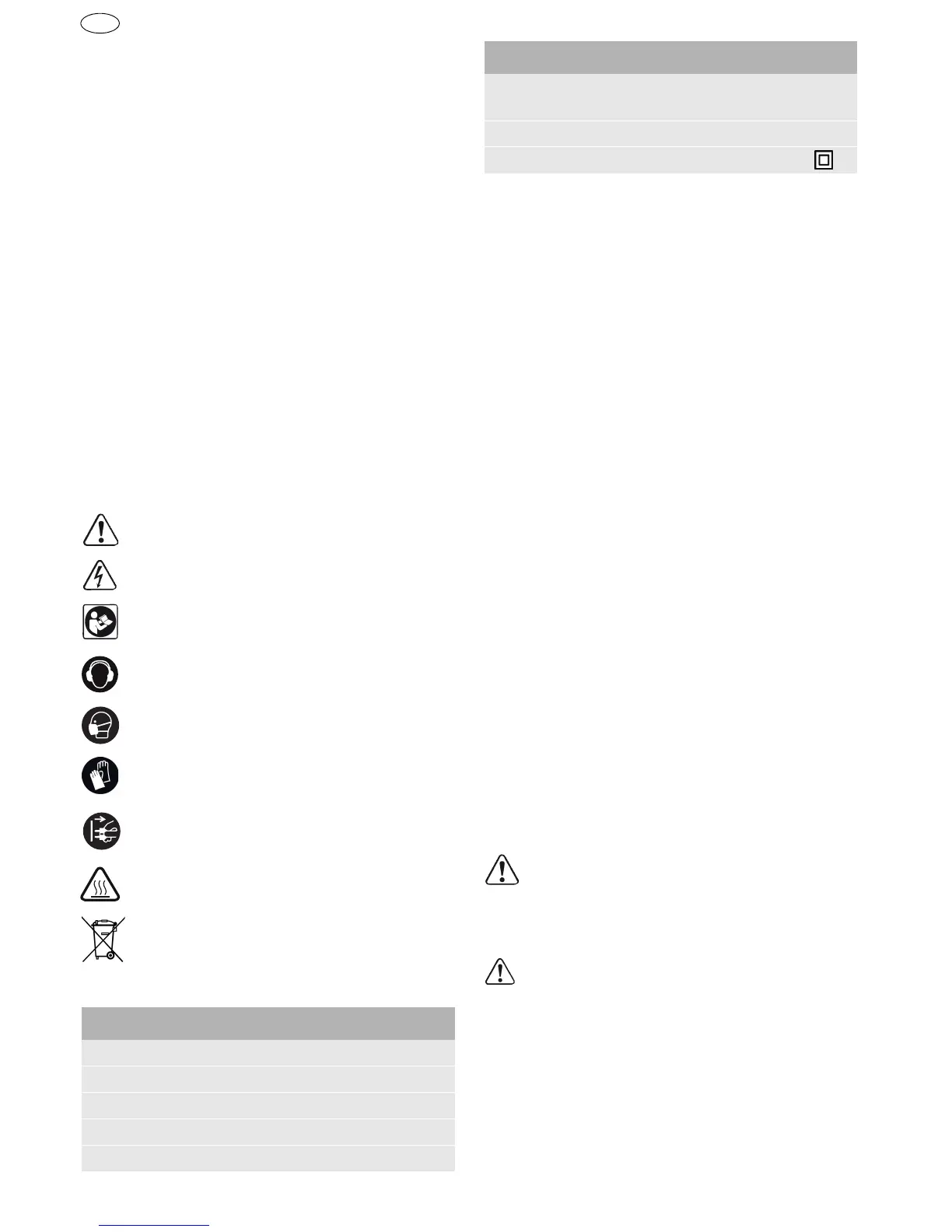

Warning of general danger
Risk of electric shock
Read the Operating Instructions/Notes!
Wear ear protection.
Wear a dust mask.
Wear protective gloves.
Disconnect from the power supply!
Burning risks from hot surfaces!
Do not throw in the household waste.
Joiner DF 700 EQ
Power 720 W
Speed (no load) n
0
21000 rpm
Routing depth 15 - 70 mm
Routing width, max. 16,5 mm + Ø cutter
Ø cutter, max. 14 mm
Connecting thread of the drive
shaft
M8 x 1
Weight (excluding cable) 5,2 kg
Safety class /II
[1-1]
Rubber buffer
[1-2]
Stop pins
[1-3]
Handles
[1-4]
On/Off switch
[1-5]
Display for dowel hole width
[1-6]
Adjusting lever for dowel hole width
[1-7]
Slide for routing depth adjustment
[1-8]
Snap button for routing depth adjustment
[1-9]
Marker for routing depth adjustment
[1-10]
Unlocking of motor unit/guide frame
[1-11]
Selection slide for routing height adjust-
ment
[1-12]
Clamp lever for routing angle adjustment
[1-13]
Button for releasing stop pins
[1-14]
Clamp lever for routing height adjustment
[1-15]
Extractor connector
[1-16]
Spindle lock
[1-17]
Mains power cable
Joiner DF 700 EQ
