6 Domino XL DF700
Functional Description
The Domino DF 700 Tenon Joiner is used to cut mortises in
wood for oating tenon joinery. Mortise and tenon joinery
is one of the oldest and strongest methods of joining pieces
of wood together. The Domino tenon joiner greatly simpli-
es the task of cutting mating mortises in workpieces to be
connected together. A rotating and oscillating cutter sweeps
across the workpiece to quickly and effortlessly cut a uni-
form mortise, in which a Domino oating tenon is inserted.
R
T
V
W
G
S
U
Q
J
F
H
G
E
I
N
C
L
D
M
J
K
P
O
A
B

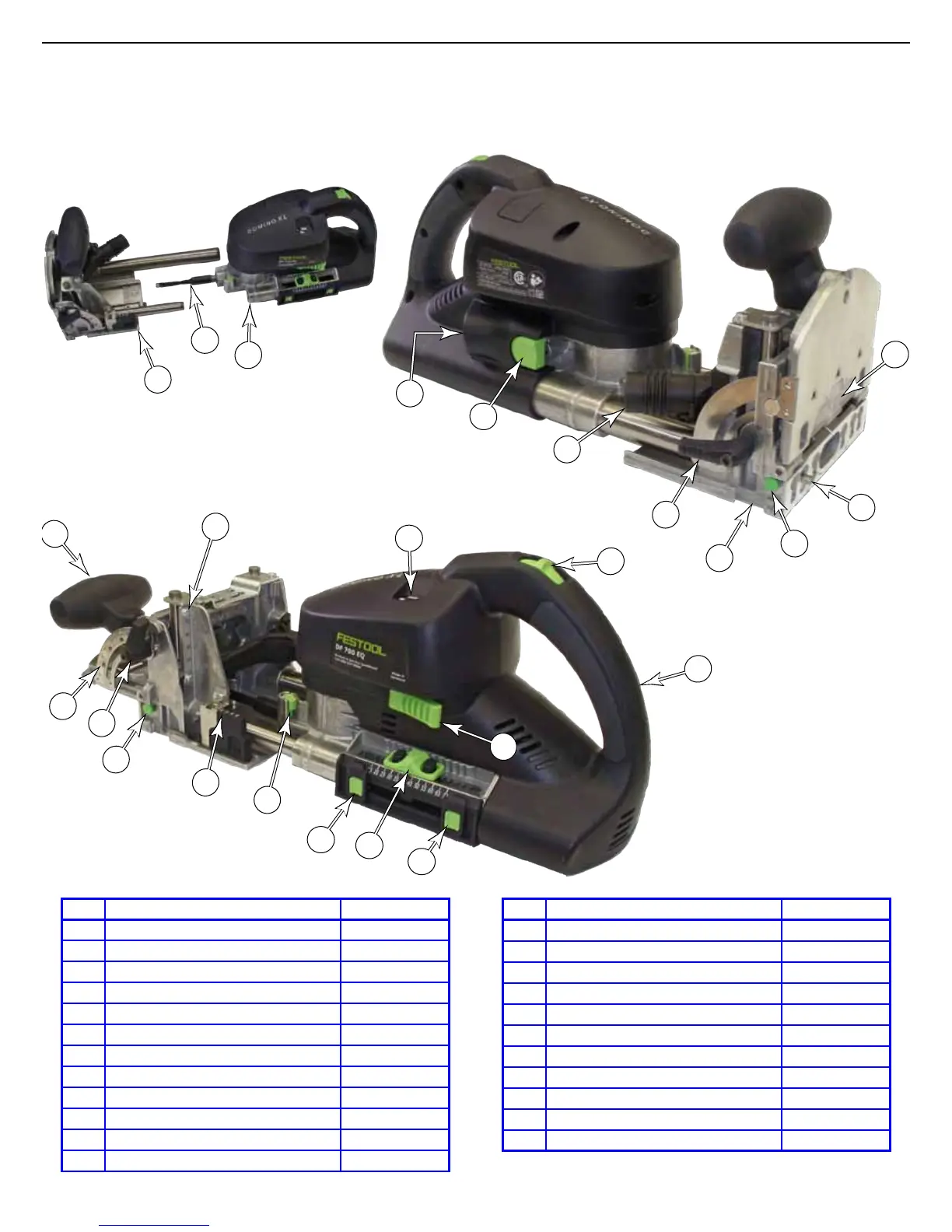

Item Name or Description Ref. Page(s)
A Fence Body 9, 19
B Motor Housing 9, 19
C Auxiliary Handle 10, 21
D Fence Height Gauge 8, 14
E Fence Angle Locking Lever 7
F Fence Angle Gauge 7, 14
G Stop Pin Release Button 11
H Height Stop 8
I Fence Body Release Lever 9
J Depth Adjust Limit Stops 9
K Depth Adjust Slide 9
L Mortise Width Lever 8
Item Name or Description Ref. Page(s)
M Main Handle 10
N Power Switch 21
O Mortise Width Indicator 8
P Mortising Bit 9, 21
Q Plug It
®
Power Inlet 10, 21
R Spindle Lock 9
S Dust Extraction Port 11
T Fence Height Locking Lever 8
U Outrigger Mounting Slot 12
V Locating Pins (qty. 6) 11, 14, 15
W Sight Gauge 13, 14, 20
