Festool Precisio CS 70 EB User Manual

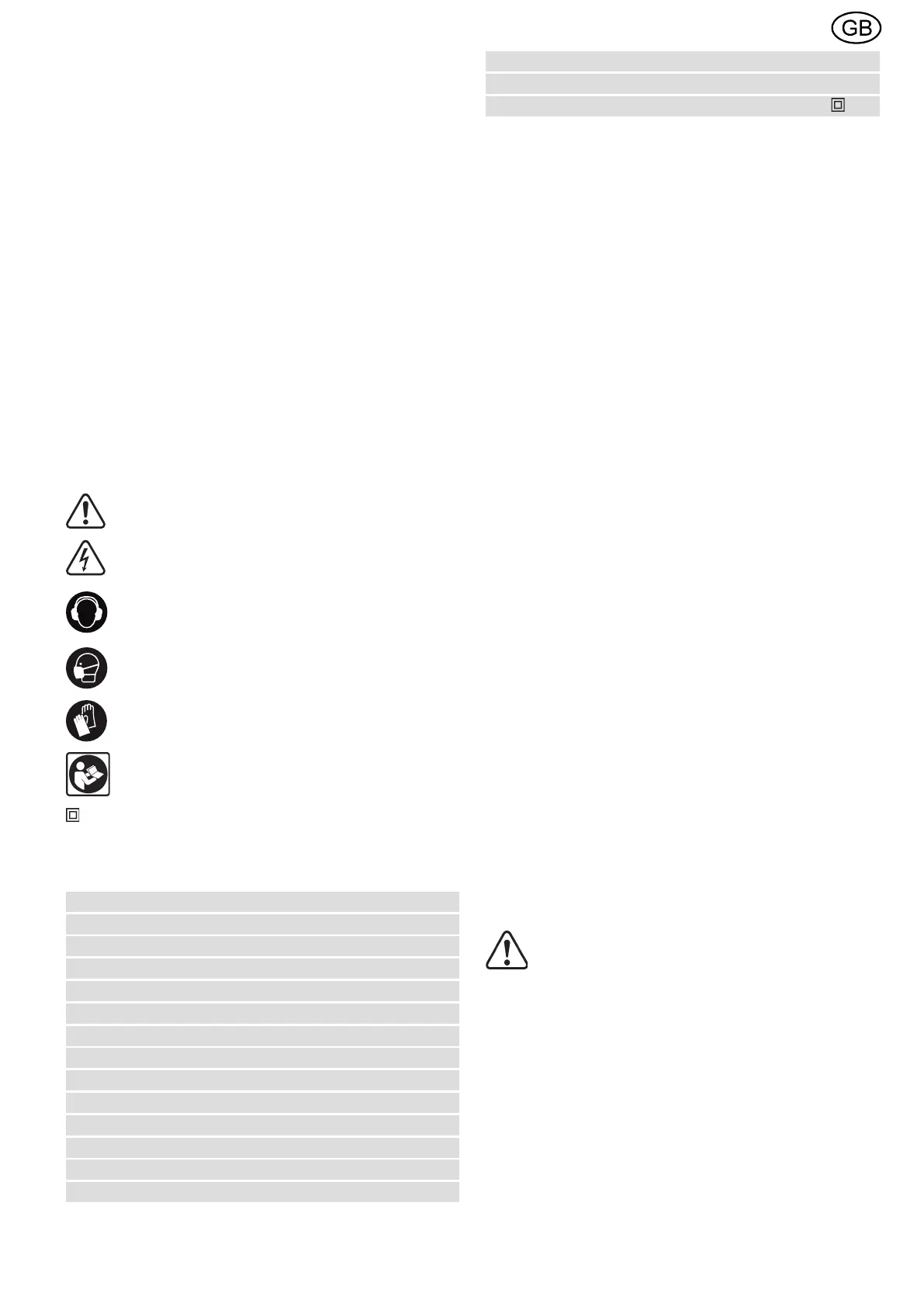

1 Symbols
Warning of general danger
Risk of electric shock
Wear ear protection.
Wear a dust mask!
Wear protective gloves.
Read the operating instructions/notes
Degree of protection
2 Technical data
Cutting depth at 90°/45° 0 - 70 mm/ 0 - 48 mm
Inclination -2° - 47°
Max. cutting length 330 mm
Saw blade 225 x 30 x 2.5 mm
Idling speed
CS 70 EB, adjustable 2000 - 4200 rpm
CS 70 E 4200 rpm
Power consumption 2,200 W
(110 V: 1,500 W)
Table dimensions (L x W) 690 x 500 mm
Bench height with foldaway legs 900 mm
Bench height without
foldaway legs 375 mm
Weight with foldaway legs 34 kg
Trimming saw
CS 70 E, CS 70 EB
Contents
1 Symbols .................................................... 1
2 Technical data ...........................................1
3 Machine features .......................................1
4 Intended use ..............................................1
5 Safety instructions ....................................1
6 Commissioning .........................................5
7 Machine settings .......................................5
8 Working with the machine ........................8
9 Service and maintenance ..........................9
10 Disposal .....................................................9
Protection category of motor (CS 70 EB only)
and IP5X switch according to EN 60529.
Degree of protection / II
The specified illustrations are at the beginning
of this operating manual.
3 Machine features
[1-1] Foldaway legs
[1-2] On/off switch
[1-3] Cable holder
[1-4] Table insert
[1-5] Rotary knob for adjusting the fence
[1-6] Spacer wedge
[1-7] Stop lever
[1-8] Cutting depth adjuster
[1-9] End cap
[1-10] Groove
[1-11] Rotary knob for adjusting the guard
[1-12] Knobs for adjusting the foldaway legs
4 Intended use
The PRECISIO is designed as a transportable
electric power tool for sawing wood, plastics,
panel materials made of wood and similar ma-
terials. Special aluminium cutting blades sup-
plied by Festool allow you to use these machines
to saw aluminium. Materials containing asbes-
tos must not be processed.
The user bears the responsibility for damage
and accidents caused by improper use.
5 Safety instructions
5.1 General safety instructions for power
tools
WARNING Read all safety instruc-
tions, other instructions and technical data
provided with this power tool, and take a look
at the illustrations. Failure to observe the fol-
lowing instructions may lead to electric shocks,
fires and/or serious injuries.
Keep all safety and other instructions in a safe
place for future reference.
The term “power tool” used in the safety instruc-
tions refers to mains-powered power tools (with
power cable) and battery-powered power tools
(without power cable).
13
PRECISIO
