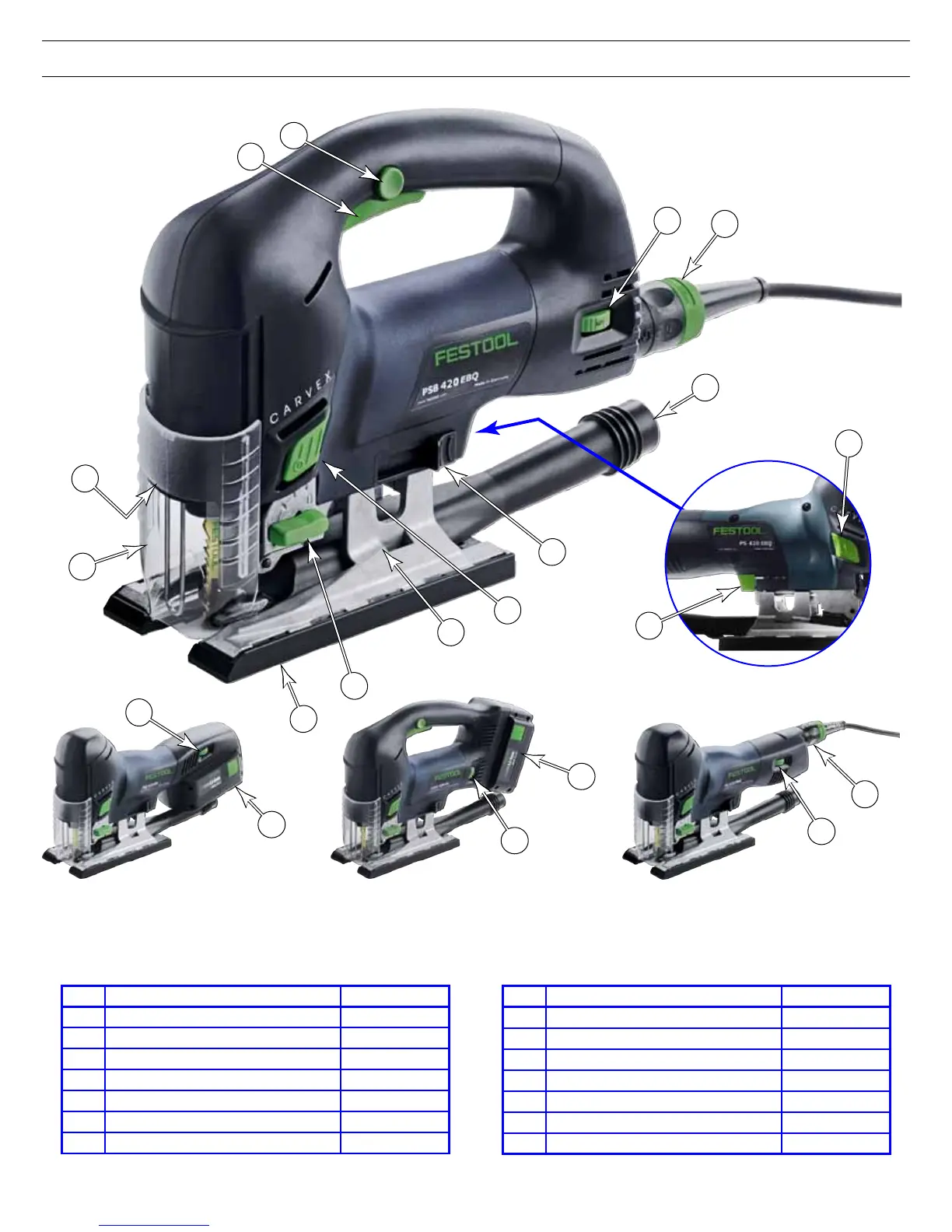

Festool PS420EBQ - Functional Description of Jigsaws; Key Component Identification

6 Carvex PS420 Series
Functional Description
A
B
J
F
G
E
I
C
L
D
I
H
K
I
E
M
M
I
H
N
PS 420 EBQ
Right-Side
PSB 420 EBQ
PSC 420 EB PSBC 420 EB
Item Name or Description Ref. Page(s)
A Chip Guard 15
B Base Insert 9
C Pendulum Lever 10
D Main Base 10
E Left & Right Power Switch 13, 18
F Blade Release Lever 8
G Dust Collection Port 9, 15
Item Name or Description Ref. Page(s)
H Plug-It Power Cord Port 12
I Speed Control 13
J Trigger Release 13
K Variable Speed Trigger 13
L Base Release Lever 10
M Battery 11
N LED Work Lights 18
