Festool TS 55 REQ - Functional Description

6 TS 55 REQ
Functional Description
R
G
S
Q
J
F
H
G
E
I
N
C
L
D
M
K
P
O
I
L
O
F
D
A
B

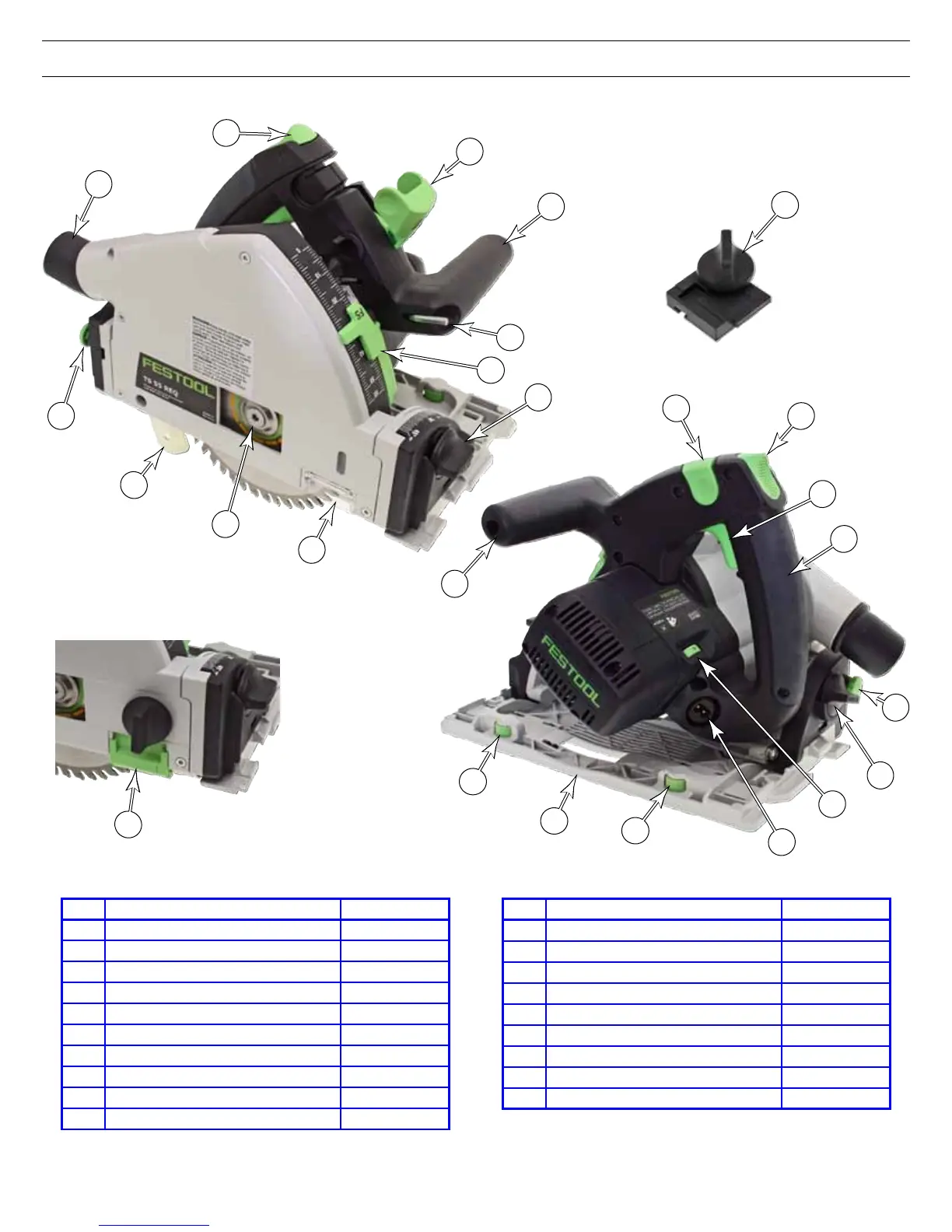

Item Name or Description Ref. Page(s)
A Viewing Window 8
B Arbor Bolt 9
C Spring Loaded Riving Knife --
D Miter Release Button 13
E Dust Collection Port 14
F Plunge/Trigger Release 15
G FastFix Arbor/Plunge Lock 9
H Trigger (On/Off Switch) 15
I Auxiliary Handle --
J Blade Wrench Storage 9
Item Name or Description Ref. Page(s)
K Depth Stop and Gauge 12,23
L Bevel Gauge and Lock Knob 13
M Speed Control 13
N Plug-It Power Cord Port 15
O Guide Rail Cams 7,8
P Sole Plate --
Q Outrigger Splinter Guard 8,18
R Limit Stop 14,18
S Main Handle --
