– Do not operate the saw if the riving knife is
bent. Even a light interference can slow the
closing rate of a guard.
3.3 Health hazard by dust
WARNING! various dust created by pow
er sanding, sawing, grinding, drilling and
other construction activities contains chemicals
known (to the State of California) to cause can
cer, birth defects or other reproductive harm.
Some examples of these chemicals are:
– lead from lead-based paints,
– crystalline silica from bricks and cement
and other masonry products, and
– arsenic and chromium from chemically
treated lumber.
The risk from these expo
sures varies, depending on
how often you do this type of
work. To reduce your expo
sure to these chemicals:
work in a well ventilated
area, and work with approved safety equipment,
such as dust masks that are specially designed
to filter out microscopic particles. Wash hands
after handling.
WARNING
TO REDUCE THE RISK OF INJURY, USER
MUST READ INSTRUCTION MANUAL.
4 Technical data
Circular saw TS 75 EQ
Power consumption 13 A
No load speed 1350 - 4400 rpm
Angele of cut 0 - 45°
Cutting depth at 90° 2-15/16" (75 mm)
Cutting depth at 45° 2-1/8" (56 mm)
Saw blade diameter 8-1/4" (210 mm)
Saw blade hole diameter 1-3/16" (30 mm)
Weight 13.6 lbs (6.2 kg)
5 Intended use
Plunge-cut saws are intended to be used for
sawing wood, materials similar to wood, plaster
and cement-bonded fibre materials and plas
tics. When fitted with special saw blades for
aluminium offered by Festool, these machines
can also be used for sawing aluminium.
Only use saw blades with the following dimen
sions:
– saw blades according to EN 847-1
– Saw blade diameter: 8-1/4" (210 mm)
– cutting width: 3/32" to 7/64" (2.4 - 2.6 mm)
– toolholder diameter of 1-3/16" (30 mm)
– standard blade thickness: Max. 5/64"
(1.8 mm)
– suitable for speeds of up to 5000
rpm.
Never use machine with any abrasive wheels.
This power tool may only be used by experts or
instructed persons.
Festool electric power tools must only be in
stalled on work tables provided by Festool for
this purpose. If the tool is installed in another,
or self-made, work table, it can become unsta
ble and result in serious accidents.
The user is liable for damage and acci
dents caused by improper and non-in
tended use.

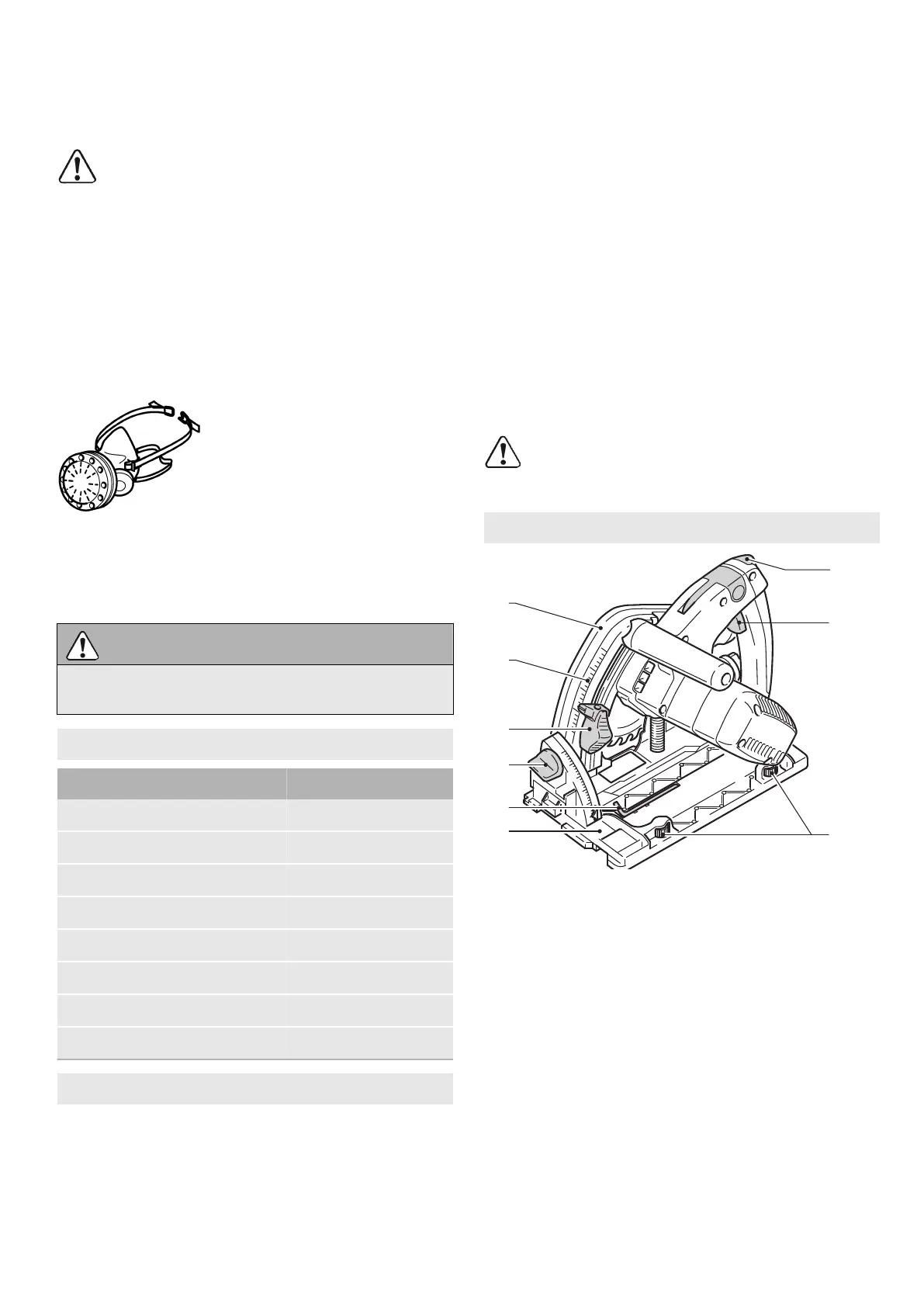

6 Functional description
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.9
1.8
[1.1]
Protective cover
[1.2]
Cutting depth scale
[1.3]
Cutting depth end stop
[1.4]
Setscrew for angle adjustment
[1.5]
Hexagon socket wrench
[1.6]
Saw table
[1.7]
Switching on and unlocking block
[1.8]
On/Off switch
[1.9]
Guide jaws
English
7
