Festool TSC 55 KEB - Viewing Window, Splinter Guard, and Dust Extraction

6
6-3
6-1
6-4
6-2
Sawing a splinter guard
You must bed in the splinter guard before using
it:
► Set the machine to maximum cutting depth.
► Set the machine speed to 6.
► Place the machine for sawing the splinter
guard on a test piece of wood.
8.7 Dust extraction
WARNING
Health hazard posed by dust
► Always work with an extractor.
► Only use a dust extractor designed to col
lect the specific type of dust and particles
from the material being cut.
► Follow OSHA and NFPA regulations to en
sure a safe work environment.

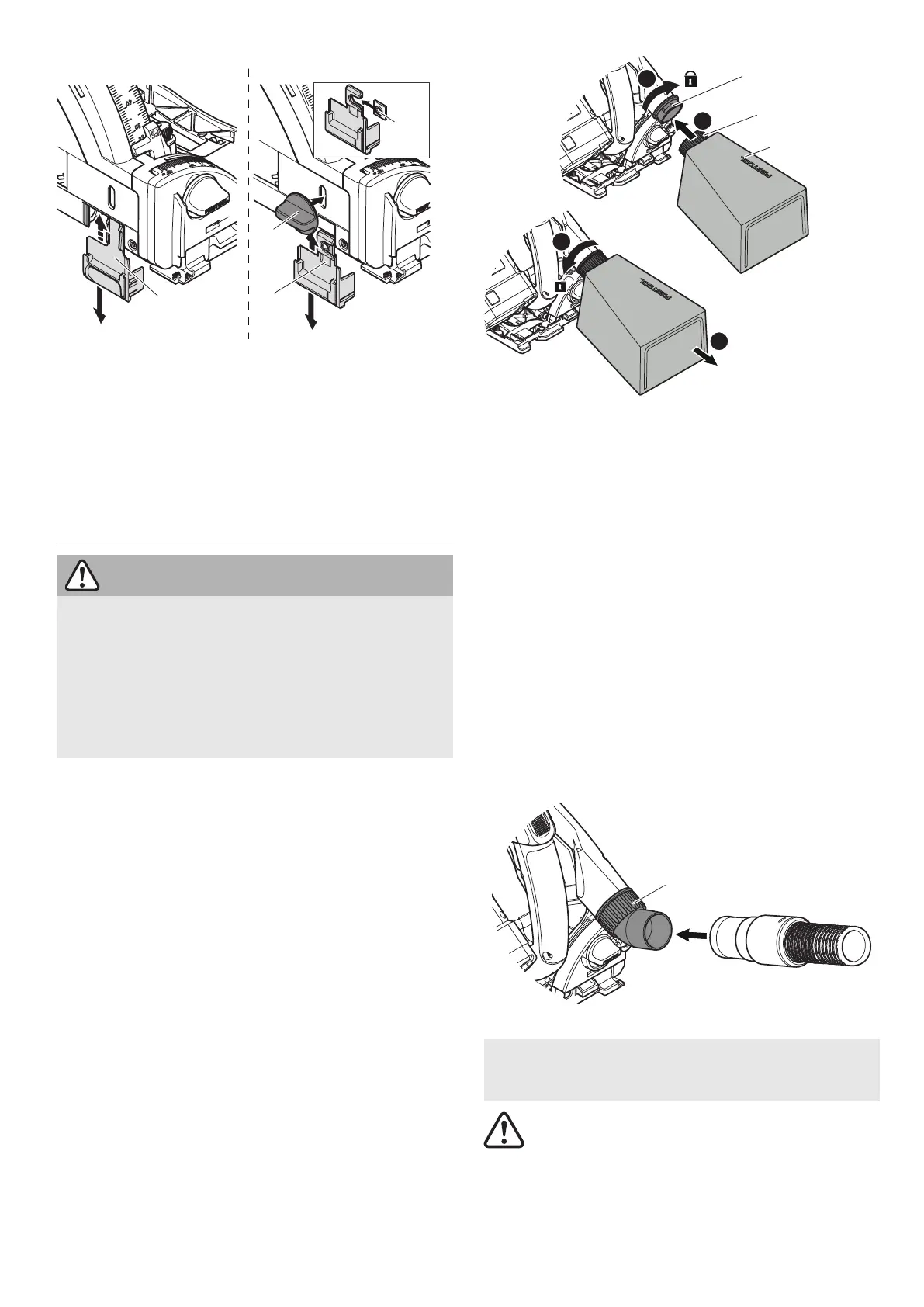

Independent extraction
► Secure the connection piece [7-2] of the
dust collection bag [7-3] at the extractor
connector [7-1] with a clockwise rotation.
► To empty, remove the connection piece of
the dust collection bag from the extractor
connector with an anti-clockwise rotation.
7a
1
2
1
7-1
7-2
7-3
2
Festool mobile dust extractor
A Festool mobile dust extractor with a suction
hose diameter of 1-1/16"/1-17/64" (27/32 mm)
or 1-7/16" (36 mm) (36 mm recommended due
to the reduced risk of clogging) can be connect
ed to the extractor connector [7-1].
The adapter on a 1-1/16" (27 mm) diameter
suction hose is inserted into the angle adapter
[7-4]
. The adapter on a 1-7/16" (36 mm) diame
ter suction hose is inserted over the angle
adapter [7-4].
CAUTION!
A static charge may build up if no
antistatic suction hose is used. The user may
receive an electric shock and the power tool's
electronics may be damaged.
7b
7-4
9 Working with the electric
power tool
When working on the machine, observe
all of the safety warnings that are listed
at the start as well as the following rules:
Before starting
– Before each use, check whether the drive
unit with the saw blade correctly and fully
English
17
