12

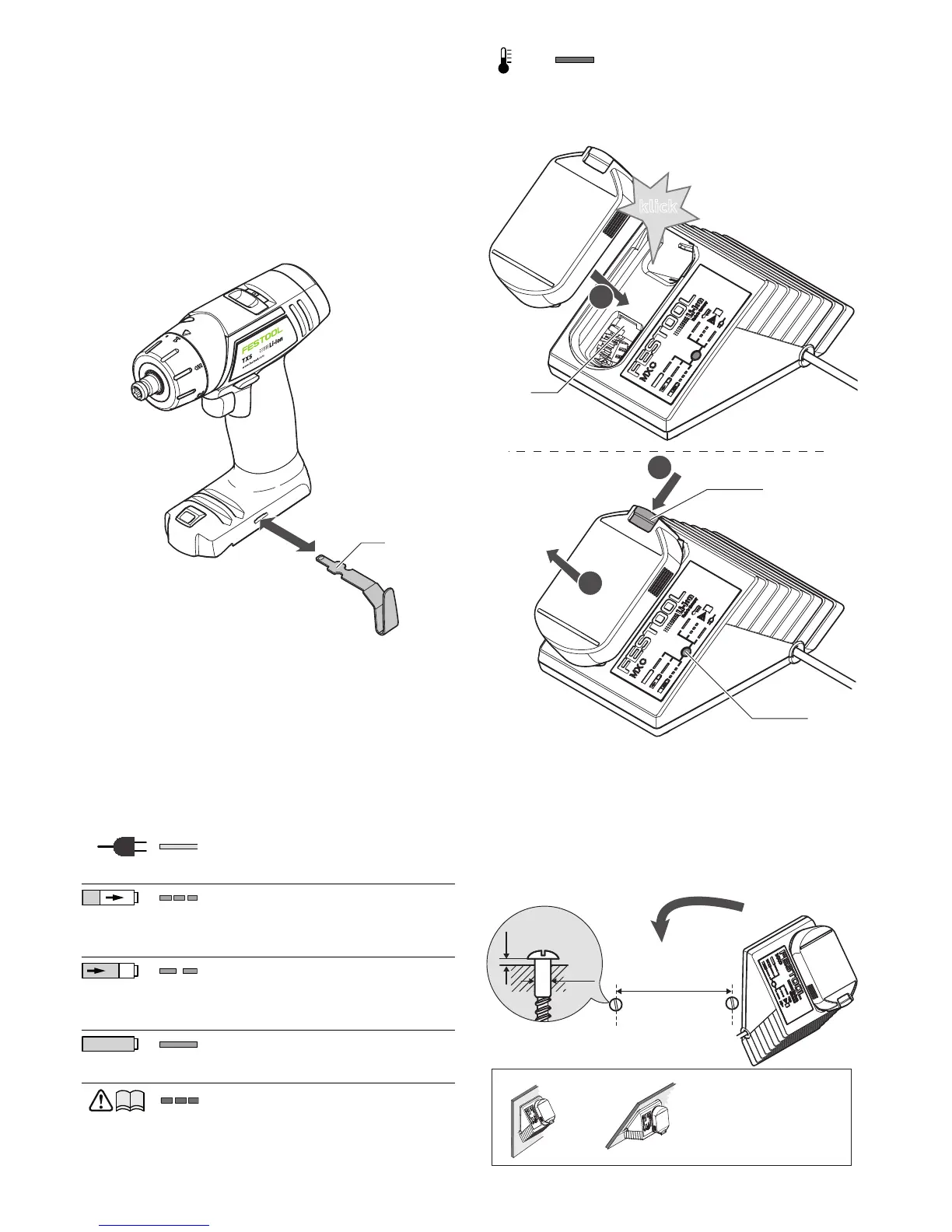

Changing side of the belt clip
Fix the belt clip
[3-1]
on the right or on the left side,
depending on which side you prefer to clip the cord-
less drill.
Remove the battery pack
[2]
.
Remove the belt clip
[3-1]
.
Insert the belt clip on the designated side.
Insert the battery pack
[2]
.
Charging the battery pack [4]
To charge the battery pack, put it on the retainer
[4-1]
on the charger.
To remove, press and hold the button
[4-2]
and
pull off the charged battery pack.
The LED
[4-3]
on the charger indicates the respec-
tive operating status of the charger.
Charger wall mount
The charger MXC has two elongated holes on its
back. It can be mounted on a wall using two screws
(e.g. round head or flat head screw with shank di-
ameter of 5 mm) (see Fig.
[5]
).
LED yellow - lit continuously
Charger is ready to use.
LED green - flashing quickly
Charging battery pack at maxi-
mum rate.
LED green - flashing slowly
Charging battery pack to 80% and
with reduced current.
LED green - lit continuously
Charging process is charged.
LED red - flashing
General fault indicator, e.g.
incomplete contact, short circuit,
defective battery pack, etc.
