Fetco CBS-2032E - Figure 3 - CBS-2032 e; CBS-2032 s Main Assembly

17

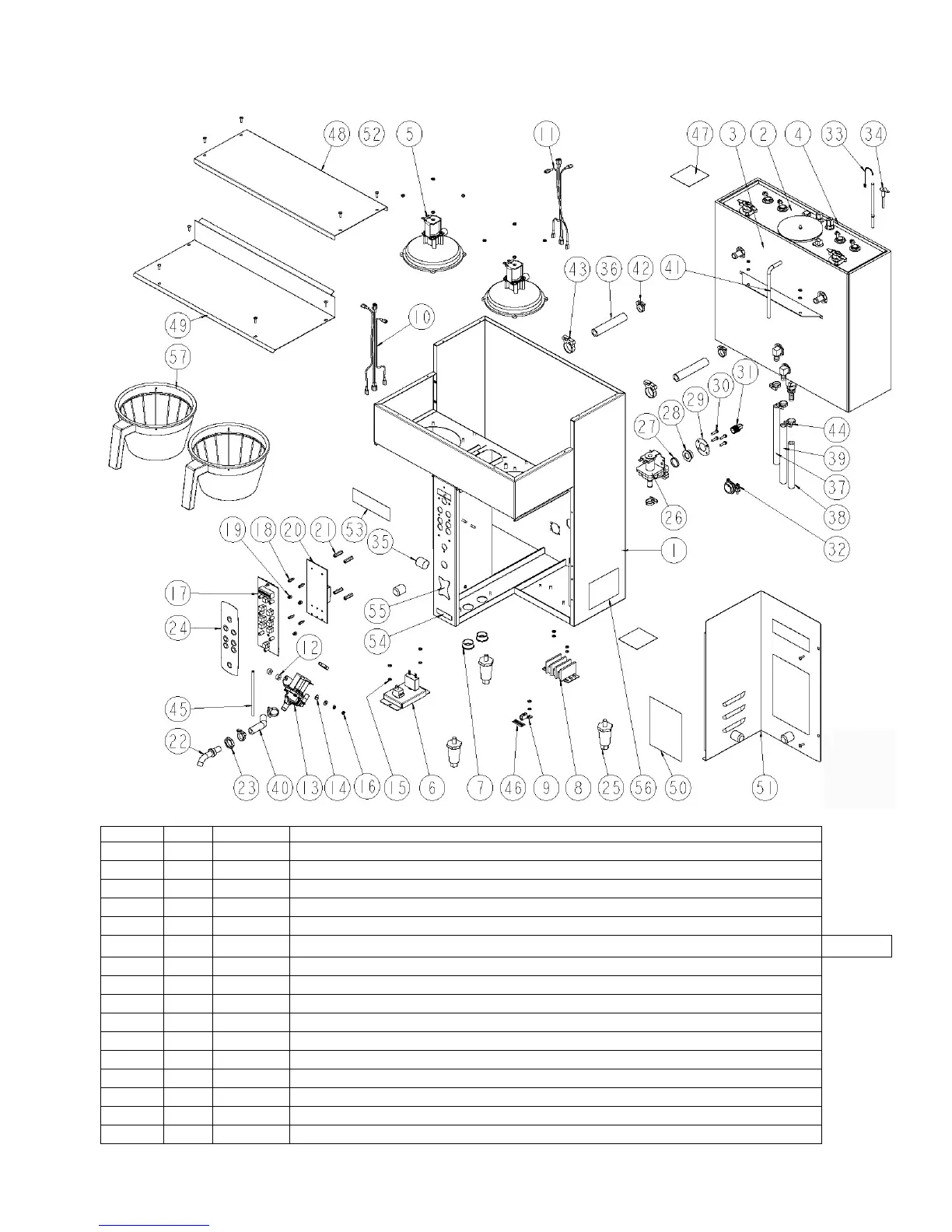

Figure 3 – CBS-2032e / CBS-2032s Main Assembly
DWG 101196-D
ITEM # QTY PART # DESCRIPTION
1 1 001050 WELDMENT, CBS-2032e
2 1 104027 ASSEMBLY, TANK CBS-2032e (SEE FIG. 4)
3 1 22041 INSULATION TANK FRONT CBS-2032e
4 1 22042 INSULATION TANK BACK CBS-2032e
5 2 102080 ASSEMBLY, SMALL SPRAY HEAD, 120V (SEE FIG 5)
5 2 102158 ASSEMBLY, SMALL SPRAY HEAD, 220V (SEE FIG 5)
EXPORT
220V ONLY
6 1 102189 ASSEMBLY, POWER BRACKET, CBS-2000e
6 1 52026 CIRCUIT BREAKER, 5A
6 1 58054 SWITCH, PUSH BUTTON
7 2 86032 BUSHING, SNAP, 1" MOUNTING HOLE DIA
8 1 52050 TERMINAL BLOCK
9 1 65002 CONNECTOR, COPPER LUG
10 1 402023 HARNESS, LOW AMP, ELECTRICAL, CBS-2032e, TWO HEATERS
11 1 402032 HARNESS, HIGH AMP, TWO HEATER WIRE SET CBS-2032e
12 2 29021 SPACER, #8 SCREW SIZE
13 1 102192 ASSEMBLY, HOT WATER VALVE, 120VAC
