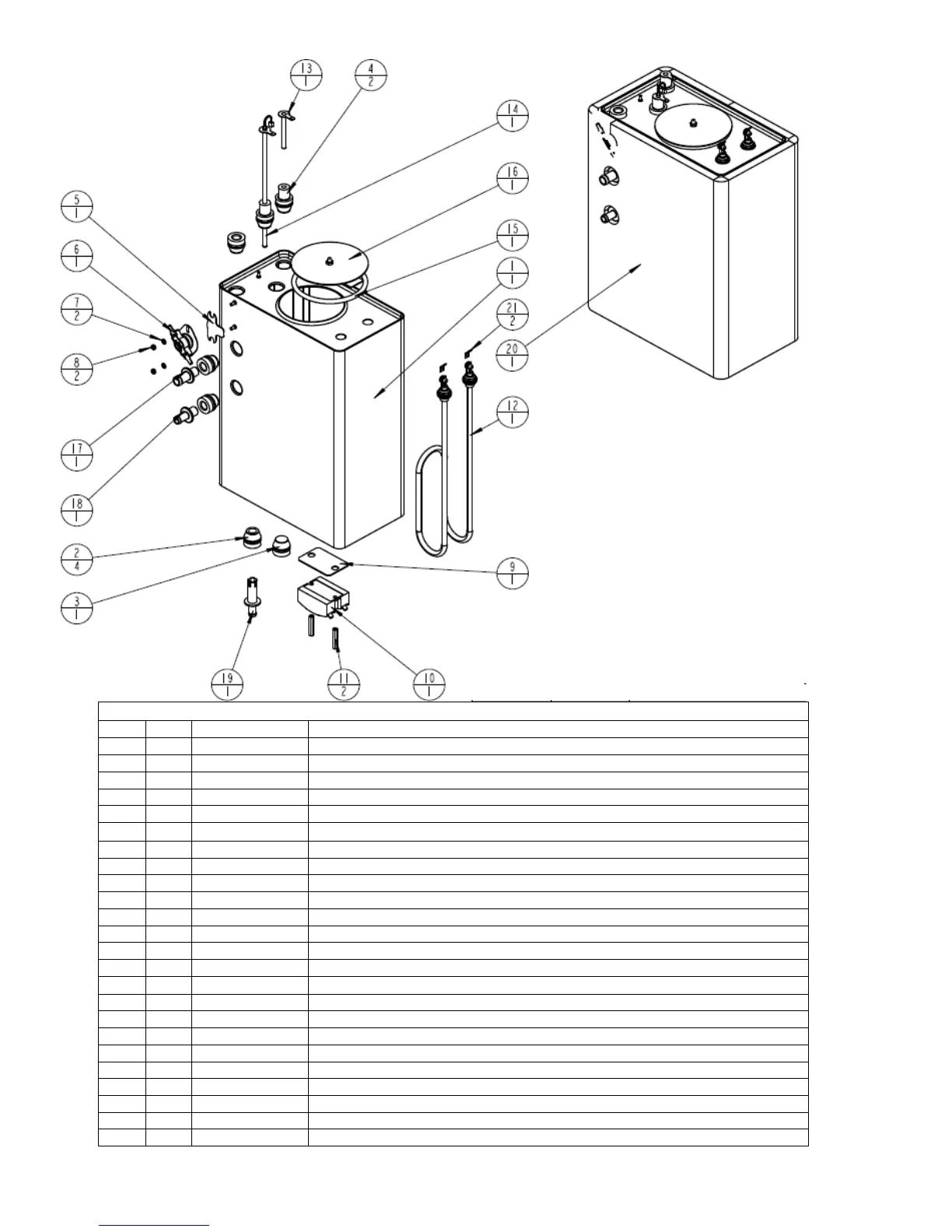

Drawing 1104.00043.00 TANK ASSY, 2300W/120VAC, CBS-2131, GROMMETS
Ref# QTY PART NO DESCRIPTION
1 1 1114.00066.00 WELDMENT TANK CBS-2131, GROMMET DESIGN
2 4 1024.00050.00 GROMMET, SILICONE, 11.4mm ID
3 1 1024.00051.00 GROMMET, SILICONE, BLANK
4 2 1024.00053.00 GROMMET, SILICONE, LL & TEMP. PROBES
5 1 1003.00005.00 BRACKET, ONE SHOT THERMOSTAT
6 1 1053.00003.00
THERMOSTAT, SINGLE SHOT, 240V/40A
7 2 1083.00009.00 WASHER, #6 SCREW , INTL TOOTH LOCKWASHER
8 2 1084.00010.00 NUT, HEX, #6-32, UNDERSIZED, ZINC PLATED
9 1 1003.00140.00 ALUMINUM BRACKET FOR SSR
10 1 1052.00014.00 ASSEMBLY RELAY, SOLID STATE, 25A/230V
11 2 1081.00042.00 STANDOFF, 6-32 x1.25 LG.,1/4 HEX WIDTH
12 1 1107.00021.00 HEATER ASSEMBLY, IMMERSION 1500W/120VAC
12 1 1107.00022.00 HEATER ASSEMBLY, IMMERSION 1700W/120VAC
12 1 1107.00019.00
HEATER ASSEMBLY, IMMERSION 2300W/120VAC
